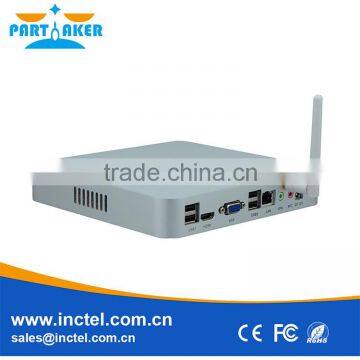

High Quality New Design Intel Celeron 1037u 1.8Ghz CPU Aluminum Htpc Chassis Oem
Model |
IN-S10 |
Ports |
4*USB 2.0 HDMI VGA LAN Audio Input & Output 12V DC |
Processor |
Intel Celeron 1037u 1.8Ghz CPU |
Memory |
Max. 8G RAM NB Memory SO-DIMM 204Pin |
Hard Disk |
Support 1*Mini PCIE Msata SSD (SSD Max.512G)+1*2.5 Inch HDD (HDD Max. 1TB) |
Features |
Support Wake on LAN, PXE, 3G SIM, GPIO, LVDS 4*USB2.0, HDMI+VGA+24 Bit LVDS, 1080P HD playback |
GPU |
Intel HD Graphics |
WiFi Optional |
Wireless-(150Mbps or 300Mbps optional) 1 or 2 Antennas |
Package |
Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional) |
Ideal HTPC |
|
HTPC ideal qualities to have are: |
|
Beautifully compact form factor, the general case is too rough to do with the living room does not ride, but INCTEL designed all-aluminum chassis, so that the whole HTPC enthusiasts immediately shines, the ensuing distress is a proper mini compact chassis matched with just the right motherboard and accessories is very difficult. Should solve this problem coincides with the launch of the INCTEL Mini HTPC host. |
|
Low power consumption and quiet, ordinary PC's CPU fan plus the power supply fan noisy, quiet fan is very important, but the average host hundreds of watts relaxed, do not say the costs of electricity, heat is also large, people are very open in the summer time irritability. Mini-host is usually less than 40 watts using a laptop fan and associated chip, the average person simply can not buy the parts to assemble. |
|
High performance, while maintaining the above features, but also close to the performance of an ordinary PC, so as to play some popular 3D games, such as World of Warcraft, Need for Speed, with a 47-inch or larger TV feels very carefree. |
|
Moderate prices, low prices can not buy a good thing, but too expensive, it would not be acceptable to everyone, after all, only a notebook over $500 now, but put a laptop next to the TV is also very strange, so suitable HTPC host in $150-300 or so is a reasonable price range. |
|
Application of content: |
Because of their own HTPC machine is a computer or a mini-computer, so its contents must be very rich. But for ordinary users, who need more than just a wealth of content, but need only be able to be easily applied, and that he must content. For example, watch online movies, general computer applications need to install the program, connect the network to be able to watch. HTPC should be like a television host, has been with the remote control to select the built-in program that automatically expand the contents of the application was provided within the platform, rather than like a computer that is relatively complex to install and Find. A simple practical application of the platform should be a combination of customization and extension, the actual experience of the user or the final follow. |
|

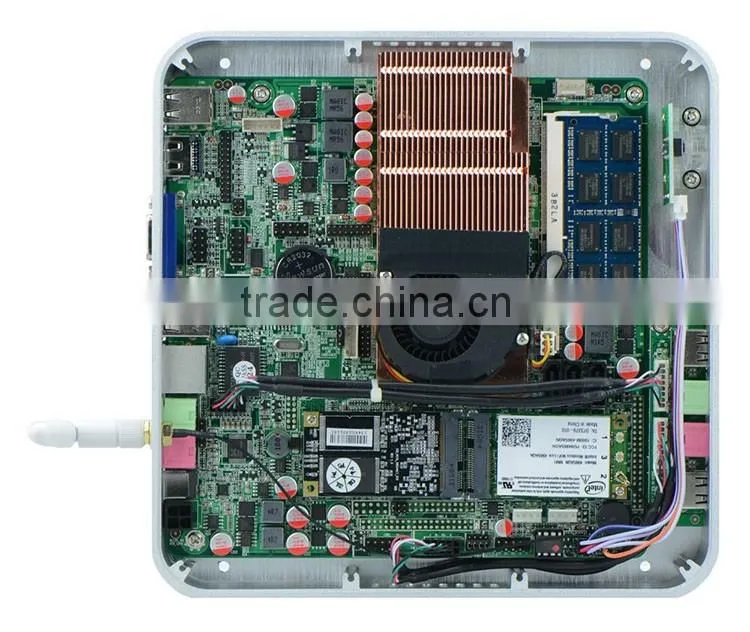

Motherboard: |
|
Direct Sell mini host cloud terminal computer 1037U aluminum HTPC living room PC Hardware |
|
Integrated Ivy brige Celeron processor 1037U RTL8111E Gigabit NIC DC12V DC power supply supports plug 2.5 inch notebook hard drive board support WIFI DDR3 Notebook Memory DC12V input terminal can be used as the whole thin cloud computing |
|
C1037U Celeron dual core industrial motherboards calls HTPC mini boot host office host |
Intel 1037U processor supports 12V ~ 19V wide voltage support dual 24BIT LVDS DDR3 Notebook Memory |
|
|
|
|
|
|
CPU: Integrated Intel 1037U 1.8GHz dual core processor |
Chipset: Using Intel HM65 Express Chipset and Intel NM70 chipset compatible |
RAM: 1 * SO DDRIII 1333/1066 memory slot supports up to 8GB |
Display Function: Integrated Intel HD2500 graphics core |
Provides 1 VGA/ 2 HDMI/ 1 LVDS interface (supports dual-channel 24bit) support synchronous / asynchronous display |
Expansion Slots: 1 * Mini-PCIE slot supports WIFI / 3G module (default is WIFI) |
|
1 * MSATA3 slot supports SSD, USB WIFI (SATA1 interface and a second election by default SATA1) |
Network capabilities: 1 * RTL8111E Gigabit LAN chip supports Wake on LAN / PXE function |
Memory function: Provide a standard hard drive interface and SATA1 a 2.5-inch notebook hard drives |
Copper pillars supporting the use of notebook hard drives can be installed directly transfer speeds of up to 6Gbps |
Audio features: Onboard ALC662 6-channel HD Audio controller supports MIC / Line-out / PA |
3Ω 2W speaker amplifier is recommended |

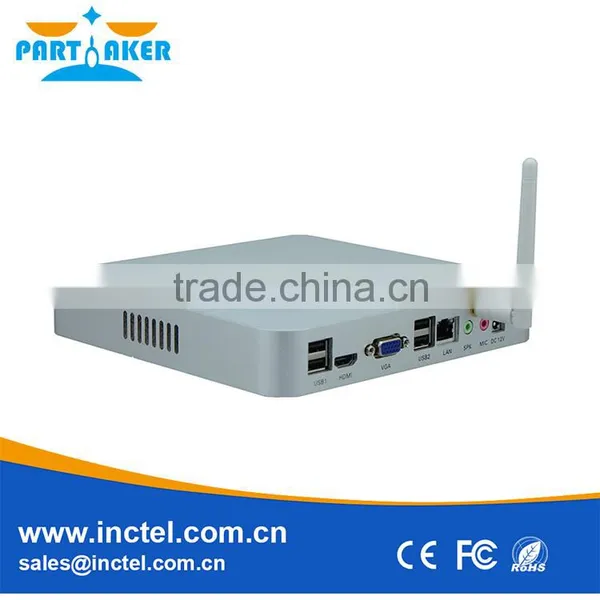

Backplane I / O interface |
4 * USB2.0 interface |
1 * HDMI interface |
1 * VGA interface |
1 * RJ-45 network interface |
1 * Line out (green) |
1 * Mic (red) |
1 * 12V DC power input connector |
1 * Power or Reset switch (optional) |
Built-in I / O interface |
1 * LVDS interface supports dual-channel 2 * 15pin 24bitLCD (dual 8) |
1 * JHDMI interface 2 * 8Pin |
1 * JVGA1 interface DB15 same signal 2 * 5pin |
4 * USB 2.0 interface Mini-PCIE if the USB signal support two USB |
1 * FP1 front panel function buttons and LEDs Interface 2 * 5pin |
1 * AUDIO Front panel audio connector |
1 * amplifier interface 4pin |
1 * SIM card connector |
1 * PWROUT hard drive power connector |
1 * ATX 4pin power connector |
|
1 * LVDS INVERTER |
Fan connector |
1 * CPUFAN fan connector 4pin and 3pin fan connector 1 * SYSFAN |
BIOS |
AMI 32MB Flash ROM |
Power type |
Single DC power input (12V ~ 19V power input support) |
Working temperature |
-10 ~ 60 |
Storage temperature |
-20 ~ 70 |
Humidity |
5% -95% relative humidity non-condensing |
Size |
170mm x 170mm |
|
|
INCTEL Technology specializes in the production of industrial computer product development, sales and service. |
|
Products involved: Mini PC, Thin Clients, Virtual Box Products, Mini ITX motherboard, 3.5 inch embedded board, NVR industrial motherboard, network firewall motherboard, industrial chassis integrated workstations, network security barebone, industrial computer accessories and other products. |
|
The company of "quality-based, service success" marketing concept, introduced series of products, widely used: self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known in the world. |
