2015 New Design Electronic Intel Core I5 3317U 1.7Ghz Mini Aluminum Fanless Htpc

Model

IN-SI5

Ports

4*USB 2.0

HDMI

VGA

LAN

Audio Input & Output

12V DC

Processor

Intel Core I5 3317U 1.7Ghz

Memory

Max. 8G RAM NB Memory SO-DIMM 204Pin

Hard Disk

Support 1*Mini PCIE Msata SSD (SSD Max.512G)+1*2.5 Inch HDD (HDD Max. 1TB)

Features

Support Wake on LAN, PXE, 3G SIM, GPIO, LVDS

4*USB2.0, HDMI+VGA+24 Bit LVDS, 1080P HD playback

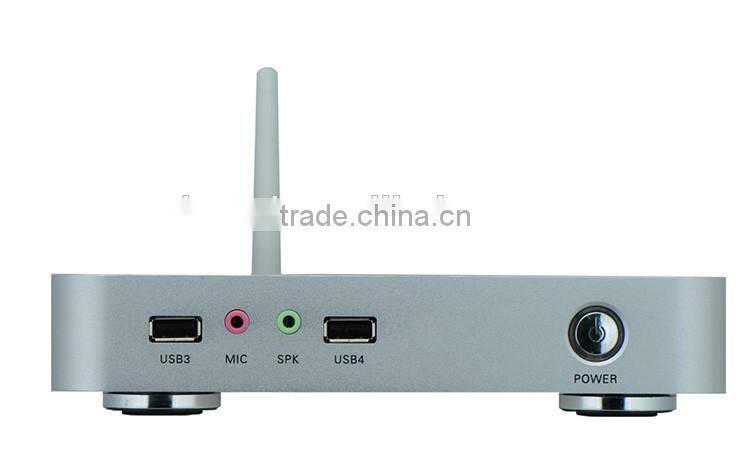

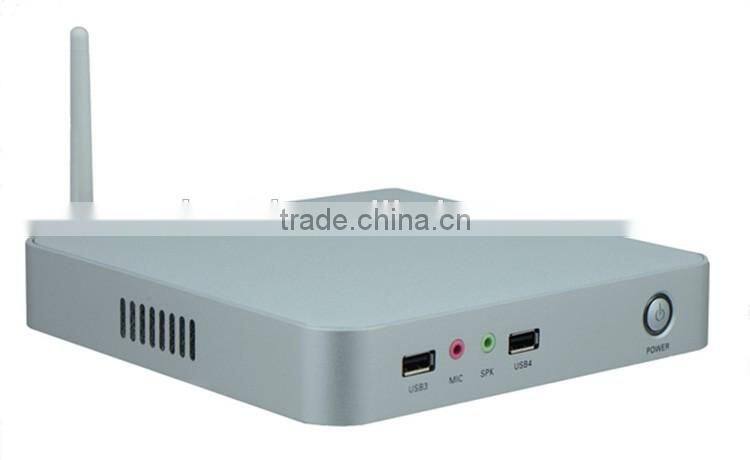

Can expand 2 front extra USB 2.0

GPU

Integrated HD4000 graphics core

WiFi Optional

Wireless-(150Mbps or 300Mbps optional)  1 or 2 Antennas

Package

Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)

True dual core desktop mini home theater HPTC silver HTPC

Intel I5 3317U processor dual WIFI antenna optional Silver Aluminum Chassis VGA HDMI display can be installed WIN7, WIN8, XP and other systems.

CPU: Intel Core processor I5 3317U 1.7G dual core four threads

Memory: Max. 8G RAM

Storage: MSATA+ 2.5 Inch HDD

NIC: 1 * RTL8111E Gigabit Ethernet ports

Chassis:length 197MM * 197MM * 33MM

Power: 12V5A adapter power which is stable 365 days without failure

Motherboard: Green Network Security Industrial Motherboard

Software: You can install Windows XP, WIN7, WIN8 so on.

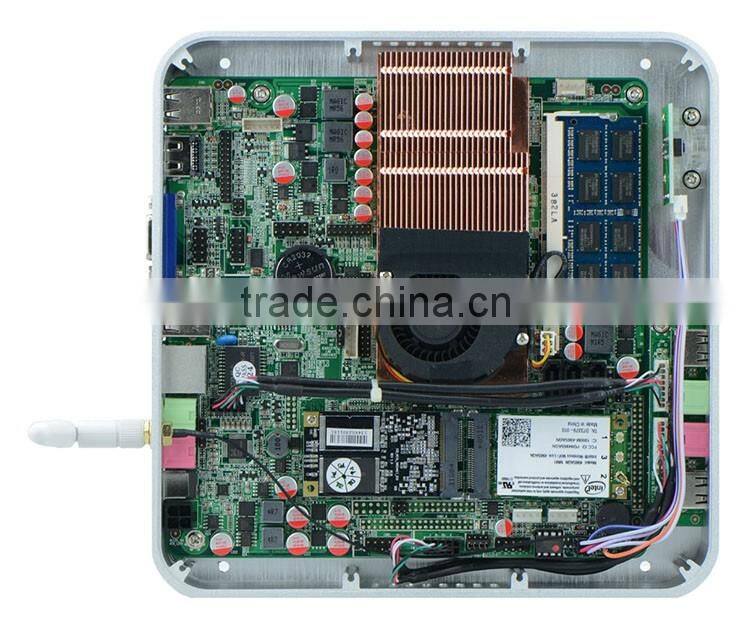

Motherboard:

Superior performance I5 3317u HD Slim HD advertising Industrial Motherboard

I5 3317U integrated DDR3 dual-core processor 6 RS232 interface COM2 and COM3 support RS485 / 422 mode dual 24BIT LVDS thin slim HTPC Motherboard

Intel I5 3317U integrated dual processor with four threads 1.70GHZ Intel NM70 Express chipset supports DDR3 Notebook Memory

Integrated Intel HD4000 Graphics graphics core supports VGA / HDMI / Dual 24BIT LVDS synchronous / asynchronous display output support 1080P HD playback

Integrated 1 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive / 8 USB / 6 COM ports

Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out motherboard power supply DC12V

CPU

Intel I5 3317U integrated dual 1.70GHz processor with four threads TDP of 17W

Chipset

Using Intel NM70 Express Chipset

RAM

1 * SODDRIII 1333/1066 memory slot supports up to 8GB

Display Function

Intel HD4000 Graphics integrated graphics core

 Provides 1 VGA 2 HDMI 1 LVDS interface (supports dual channel 24BIT)

Support HDMI1 / VGA with asynchronous

Supports LVDS / VGA with asynchronous

Supports LVDS / HDMI1 with asynchronous

Support HDMI1 / HDMI2 with asynchronous

Expansion Slots

1 * Mini-PCIE slot supports WIFI / 3G module (patch control function interchangeably)

1 * MSATA slot supports transmission speeds of up to 6Gbps MSATA

Network capabilities

1 * RTL8111E Gigabit LAN chip supports Wake on LAN / PXE function

Memory function

3 * SATAII hard disk interface (one 2 * 5PIN pin connector) transmission speeds of up to 3Gbps

Audio features

Onboard ALC662 6-channel HD Audio controller supports MIC / Line-out / PA

(PA recommends using 3Ω2W speaker)

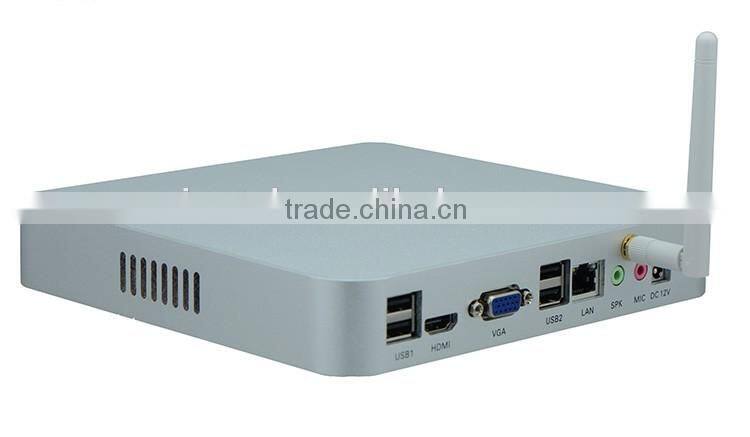

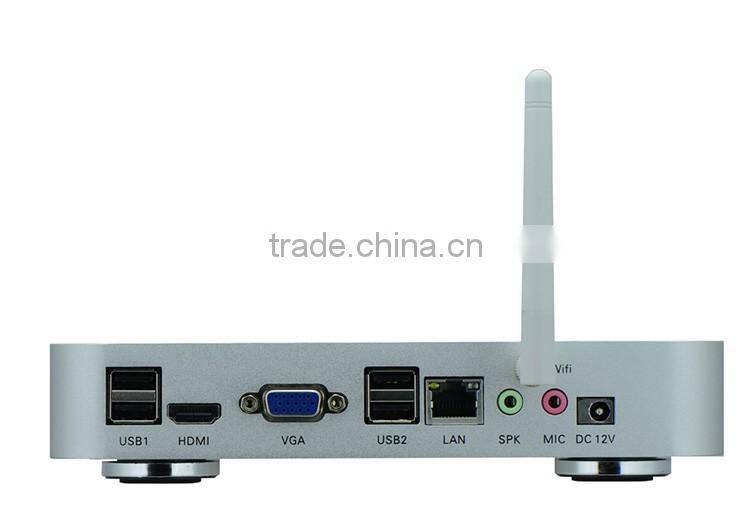

Backplane I / O interface

4 * USB2.0 interface

1 * HDMI interface

1 * VGA interface

1 * RJ-45 network interface

1 * Line out (green)

1 * Mic (red)

1 * 12V DC_JACK input

Built-in I / O interface

1 * LVDS interface supports dual-channel 2 * 15pin 24BIT LCD screen

1 * JHDMI interface 2 * 8Pin

1 * JVGA1 interface DB15 same signal 2 * 5pin

5 * RS232 serial port (which supports RS485 or RS422 COM2 COM3 function, and 9 feet Charged

1 * LPT printer port

4 * USB2.0 interface Mini-PCIE if the USB signal support two USB

1 * PS / 2 mouse and keyboard interface 1 * 6Pin

1 * FP1 front panel function buttons and LEDs Interface 2 * 5pin

1 * AUDIO Front panel audio connector

1 * SIM card connector

2 * PWROUT hard drive power connector

1 * ATX_12V do + 12V input and output power connector

1 * LVDS INVERTER

Fan connector

1 * CPUFAN 4pin 1 * SYSFAN 3pin

GPIO

Support 4 input and output GPIO

BIOS

AMI 32MB Flash ROM

Watchdog

Support for hardware reset function (256, 0 to 255 seconds)

Power type

DC_12V single power input

Working temperature

-10 ~ 60

Storage temperature

-20 ~ 70

Humidity

5% to 95% relative humidity, non-condensing

Size

170mm x 170mm
