Top Quality Wholesale 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD Minicomputer Htpc 1080P

Model

IN-I52C

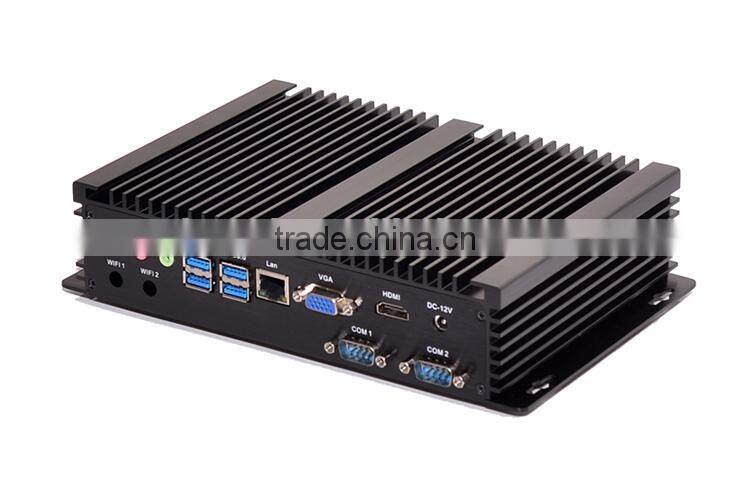

Ports

DC

HDMI

VGA

LAN

USB 2.0*3

USB 3.0*4

MIC Input

SPK Output

2*COM RS232

Processor

Intel Core i5 4200U 1.6Ghz The fourth-generation i5 Haswell Architecture,Dual core four threads

Memory

Support  Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G)

Hard Disk

Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB)

GPU

Intel HD Graphics 4400, L3 3MB Cache, all SOC Design

WiFi Optional

Dual Band Wireless-(150Mbps or 300Mbps optional)

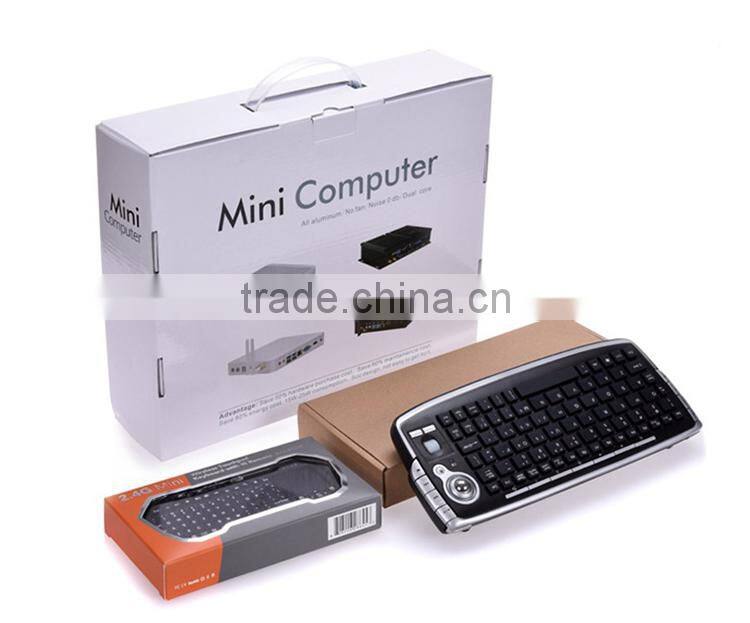

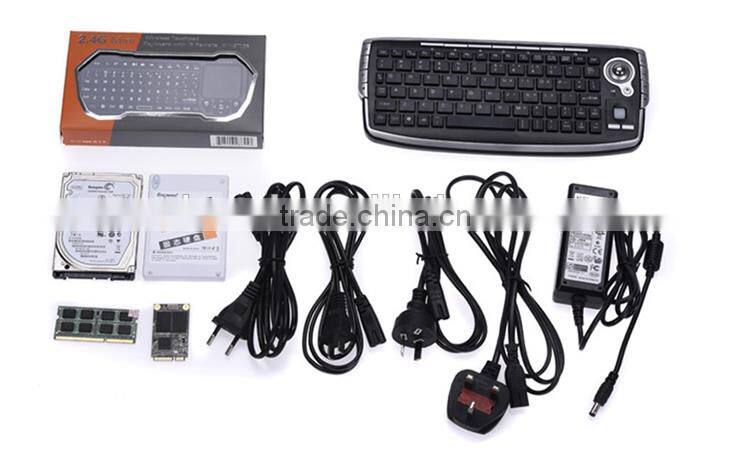

Package

IPC+Power Supply+Power Cord (USA, European, UK Types for optional)

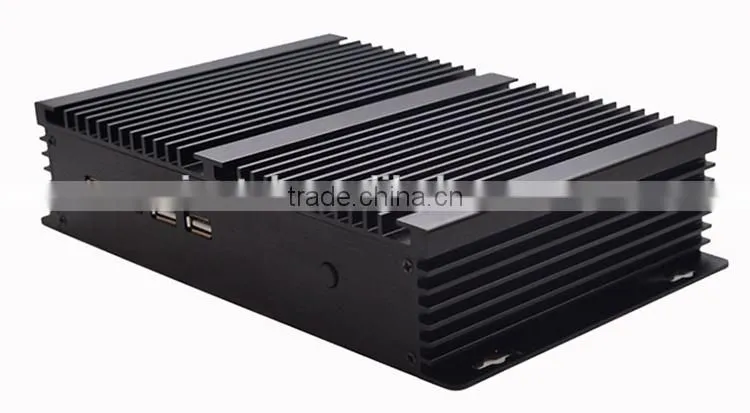

The new Core I5 4200U fanless computer for sale, 15W power consumption SOC chip, INTEL technical peak, a chip integrates: CPU, Southbridge, Northbridge, IO chip, clock chip design saves board space, power consumption and overall heat is greatly reduced, master Lu 100,000 breakthrough performance evaluation directly, but TDP is only 15W. Future has come, desktop computer Terminator, INCTEL Almighty mini fanless computer: home entertainment, online games, business office, industrial control, graphic design, 3D CAD-aided design, hotel rooms, education, health care. All can be applied!

The highly integrated design, the entire board gall capacitance, the failure rate is much lower

 Just a BGA chip

 All SOC design, integration of CPU, Southbridge, Northbridge, core graphics, IO chip

3.5 inch industrial board design, dual channel memory, imported power supply design

 Industrial grade quality

 Commercial products prices

Support 1*MSATA3 SSD

 At the same time 1* 2.5-inch notebook hard drive

 Support full board SATA3

Super Premium Ice barbed version fanless cooling computer outrageously starter, four-generation Haswell architecture i5 4200U processor, 3MB cache Turbo three highest 2.6Ghz, HD4400 graphics core 4K very clear

Support 4K HD output, support for DP digital high-definition interface, performance evaluation of Master Lu about 100,000 full version Sata3 only for the king was born, and only for tolerance from, do fanless mini computer in luxury

The world's first i5 4200u fanless mini PC Sync starting

Haswell i5 4200u ultimate super-cooling version has a surprise ice thorn listed

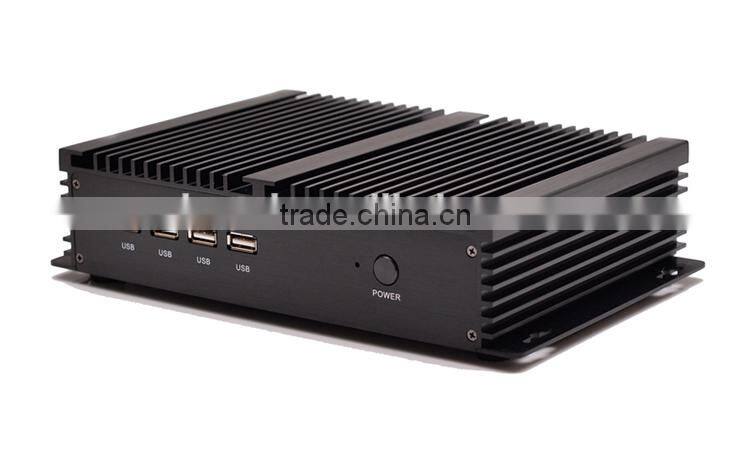

[Features]: zero decibel noise fanless aluminum core graphics IntelHD4400 smooth high-end 3D games to play online games perfect pass to kill everything perfect support 4K HD 3D Blu-ray support

The fourth-generation Core i5 4200u onboard processor supports Turbo Boost Technology Turbo Turbo to 2.6GHz up to 3MB cache, but only 15W TDP HD4400 integrated graphics core

Intel Core i5 4200U 1.6Ghz

CPU Overview

Model

i5 4200U

Processor Series

The fourth-generation i5

Core Name

Haswell Architecture

Core / thread

Dual core four threads

Process technology

22nm

TDP power

15W

CPU frequency

Frequency

1.6GHz

Acceleration Technology

Supports Turbo Boost Turbo technology, 2.6GHz

Maximum support memory frequency

DDR3L 1333/1600

CPU cache

Three cache

3MB

Graphics Core

Integrated graphics core

Yes

Graphics core

Intel HD 4400

Core Frequency

200-1000MHz

Function parameters

Energy-saving technology

Support energy-saving technologies, Speedstep

64-bit computing

Support for 64-bit computing

Virtualization (virtualization)

Support Virtualization (virtualization) technology

Hyper-Threading (Hyper-Threading):

Supports Hyper-Threading (Hyper-Threading) Technology

1. 1.    Gigabit Ethernet support diskless boot definition HDMI interface supports both Blu-ray 1080P HD output hardware solution software solution
2. 2.    External 12V DC power supply , environmental protection, daily use only 15W to 25W power
3. 3.    Six USB which four USB3.0 2 USB2.0 ports whole 1000M 150M or 300M WIFI Wireless LAN Network optional
4. 4.    SOC Design Haswell Architecture
5. 5.    Energized electric power to support features
6. 6.    All solid , shock , drop , long-term stable and reliable operation , SSD solid state disk speed of 260M / S SSD RAID0 support maximum speeds of more than 700M per secon

Market positioning:

1 Living room HD computer, put the TV in the living room below, after connecting the TV as a movie player, Internet access and viewing photos to use, but also do download machine, download movies (large capacity hard drive)

2 Business office preferred. Online shopping mall, shop office use, environmentally friendly energy, save electricity. Only 15W power down, companies office, save space. Many advantages, as the business office.

3 Rooms dedicated computer aluminum exterior, elegant, upscale. Placed hotel rooms is very convenient, all-solid-state design, not damaged, no dry sound, low power consumption, energy saving.

4. Education industry-specific computer has better performance than low-end cloud terminal, more convenient software compatibility, better color, faster, more suitable for the education sector.

DC IN 12V power supply support

Sizes 190mmx 190mmx29mm

Weight: 1500 grams to 1650 grams

Temperature :

Operating Temperature:

 0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)

 Storage Temperature:

 -20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)

 Relative Humidity:

 10% ~ 90% (non-condensing)

Master Lu computer performance evaluation beat 90% of the country, to get the gold medal, performance Needless to say, however, under such a powerful performance is ultra-small size, low power consumption (processor TDP = 15W) aluminum fanless noise 0 db. Achievement fanless PC king. There are always sophisticated mini-computer trend, while others can only follow the crowd!

Upgrade into fourth generation I5 4200U advantages:

a.  Latest haswell architecture I5 4200U

b. 4K HD reach

c.  Lower power consumption

d.  More lower heat of it

e. There are 3D graphics core upgrade, performance enhanced a lot.

f.   There is support for dual-channel memory ( 2* DDR3 Notebook)

g.  SOC design, more reliable quality of it

In total, Such upgrade brings longer life, more difficult to be eliminated, factory offers upgrade but costs increased just a little bit, customer definitely choose the new architecture which more value for money! ! !

I5 4200U will fully replace i5 3317U very soon!

Lower power consumption, but the performance such big improvement, regardless of graphics card or CPU, all upgrade

The new architecture

Big enhance performance while reducing power consumption

Master Lu 100,000 performance evaluation, 92% of the country to defeat the computer. Performance encroaching i7 4500U
