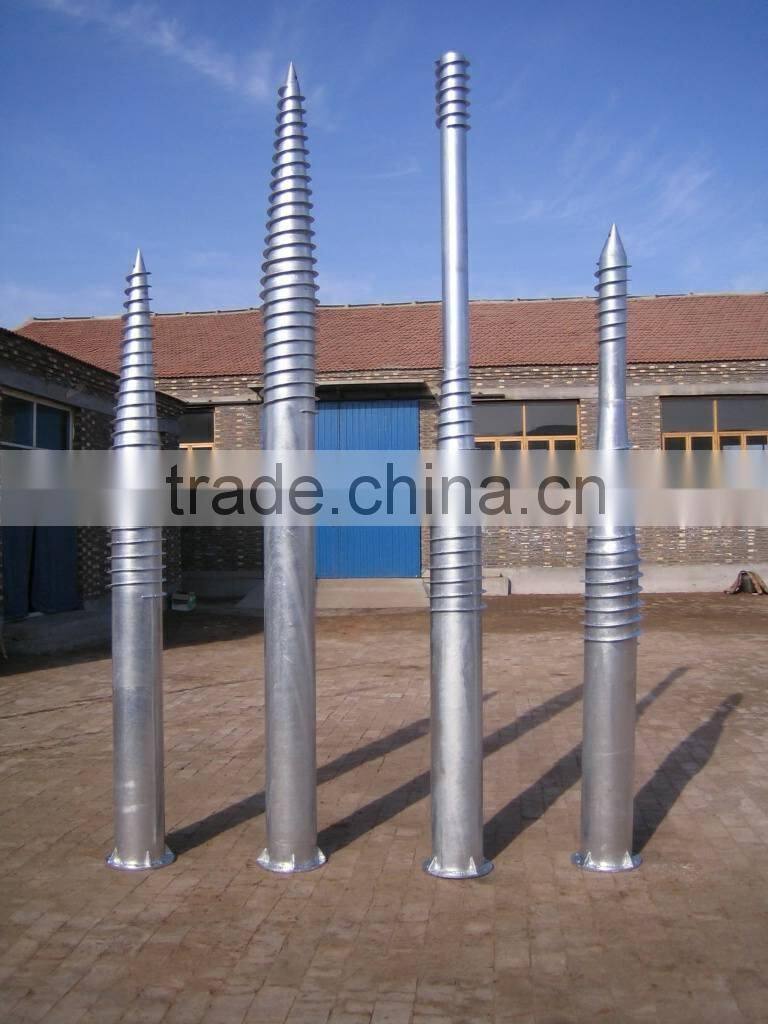

Galvanized Solar Ground Screw Anchor F219*3500*298

A. Details of WBQ Solar Ground Screw Anchor:

1. Outer dia.: 219mm

2. Length: 3500mm

3. Innerθ: 206mm

4. Adjustmentθ: 100MM

5. Durchmesser Lochbohrung: 8×θ22

6. Throatθ:259

7. Flange Thickness: 12mm

8. Flange outerθ: 298

9. Tube thickness: 3.75mm-6.3mm

10. Drawing force: >115KN

11. Bearing capacity : >175KN

12. Horizontal torque force: >60KN

13. Material: ISO630 Fe A / DIN EN10025 Fe 360 B

14. Surface finish: Hot Dip galvanize to DIN EN ISO 1461-1999

15. Packing: steel pallet and stretch film

16. Soil conditions:  Clayed Ground, Desert, Gobi Desert

17. Applications:  Solar Mounting Rack System, Fence, Sheds and Containers, Boards and Banners, Flag Poles and Marks

B. Advantages of WBQ Ground Screws:

1.The WBQ Ground Screw System sets new standards for safe, fast, and affordable construction projects.

2.The WBQ Ground Screw is extremely environmental.

3.The WBQ Ground Screws are installed in a matter of minutes with no digging and no concrete.

4.The WBQ Ground Screws are statically tested and have been approved by LGA in Germany.

5. The WBQ Ground Screw  have own engineering team which can read the drawings from the clients or make drawings according to requirements.

C. Applications of WBQ ground screws:
