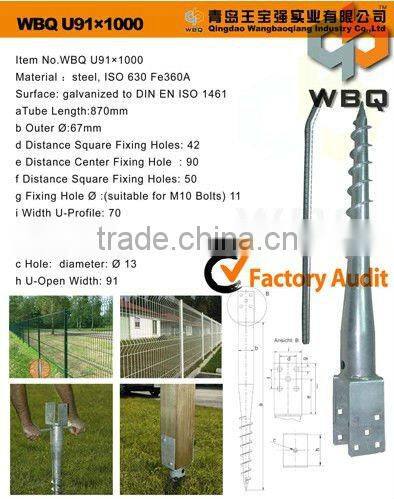

A. Details of WBQ Ground Screws:
1. Tube Length: 870mm
2. Outerθ: 67mm
3. Distance Square Fixing Holes: 42mm
4. Distance Center Fixing Holes: 90mm
5. Distance Square Fixing Holes:50mm
6. Fixing Holeθ:(suitable for M10 Bolts)11mm
7. Width U-Profile:70mm
8. Depth U-Profile:130mm
9.Hole:diameter: θ13mm
10. U-Open Width:91mm
11. Material: ISO630 Fe A / DIN EN10025 Fe 360 B
12. Surface finish: Hot Dip galvanize to DIN EN ISO 1461-1999
13. Packing: steel pallet and stretch film
14. Applications: wildly used for fence and sheds
B. Advantages of WBQ Ground Screws:
1.The WBQ Ground Screw System sets new standards for safe, fast, and affordable construction projects.
2.The WBQ Ground Screw is extremely environmental.
3.The WBQ Ground Screws are installed in a matter of minutes with no digging and no concrete.
4.The WBQ Ground Screws are statically tested and have been approved by LGA in Germany.
5. The WBQ Ground Screw have own engineering team which can read the drawings from the clients or make drawings according to requirements.
C. Applications of WBQ ground screws:
1. Timber Construction |
2. Solar Power Systems |
3. City and Parks |
4. Fencing Systems |
5. Road and Traffic |
6. Sheds and Containers |
7. Flag Poles and Marks |
8. Garden and Leisure |
9. Boards and Banners |
10. Event Structures |
