Home > Products > Ground Screw Catalogue > F114*2000*220 Hot Dipped Galvanzied Ground Anchor With Flange

F1142000220 Hot Dipped Galvanzied Ground Anchor With Flange

FOB Price

US$ 1 - 20 / Piece

500 Pieces(Min. Order)

Port TIAN JIN
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	WBQ
Model Number	WBQ F1142000220	Type	Pole Anchor
Material	Steel	Diameter	114 MM
Length	2000 MM	Capacity	66 KN

Product Description

A. Details of WBQ Hot dipped galvanzied ground anchor with flange:

Details of WBQ Hot dipped galvanzied ground anchor with flange (WBQ F114*2000):
1. Outer dia:	114mm
2. Length:	2000mm
3. Innerθ:	108mm
4. Adjustmentθ:	M24
5. Durchmesser Lochbohrung:	6×θ14
6. Throatθ:	167mm
7. Flange Thickness:	8mm
8. Flange outerθ:	220mm
9. Material:	ISO630 Fe A / DIN EN10025 Fe 360 B
10. Tube thickness:	3mm-4mm
11. Surface finish:	Hot Dip galvanize to DIN EN ISO 1461-1999

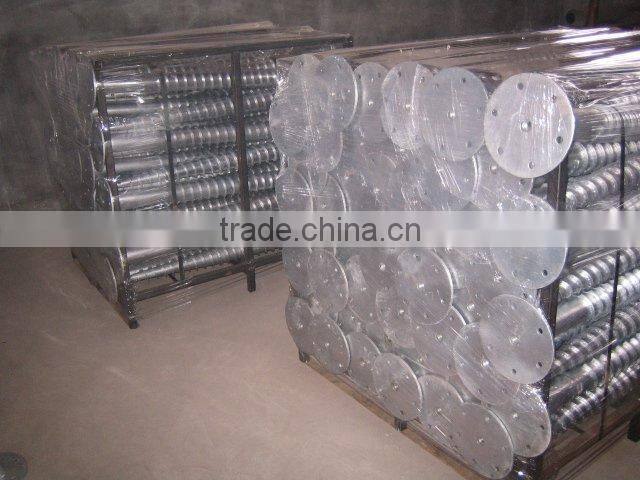

12. Packing:	steel pallet and stretch film
13. Applications:	Solar Mounting Rack System, Fence, Sheds and Containers, Boards and Banners, Flag Poles and Marks
14.Soil conditions:	Clayed Ground, Desert, Gobi Desert
15. Drawing force:	37.5KN
16.Loading power:	66KN
17.Horizontal torque force:	8KN

B. Advantages of WBQ Hot dipped galvanzied ground anchor with flange:

1.The WBQ Ground Screw System sets new standards for safe, fast, and affordable construction projects.

2.The WBQ Ground Screw is extremely environmental.

3.The WBQ Ground Screws are installed in a matter of minutes with no digging and no concrete.

4.The WBQ Ground Screws are statically tested and have been approved by LGA in Germany.

5. The WBQ Ground Screw have own engineering team which can read the drawings from the clients or make drawings according to requirements.

C. Applications of WBQ Hot dipped galvanzied ground anchor with flange:

1. Timber Construction	2. Solar Power Systems
3. City and Parks	4. Fencing Systems
5. Road and Traffic	6. Sheds and Containers
7. Flag Poles and Marks	8. Garden and Leisure
9. Boards and Banners	10. Event Structures

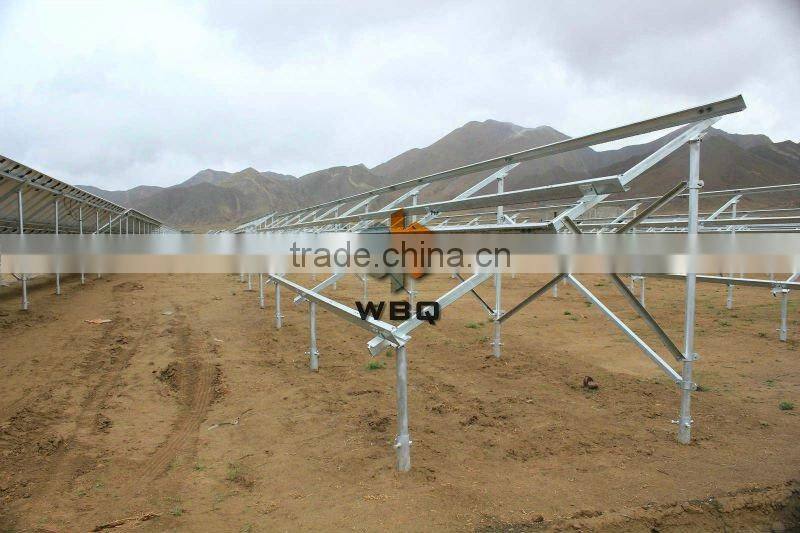

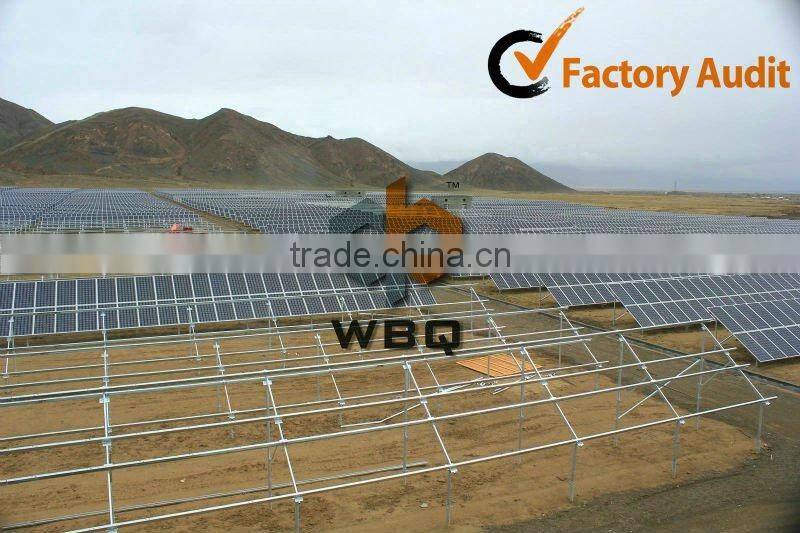

D. Ground anchor Solar Power System Engineering Projects:

Foreign Projects ground anchor of solar mounting system:

Five 30 mw Solar Power Station projects in Czech Republic and Slovakia

Three 20 mw projects in Thailand

10 mw projects in Australia

Two 5 mw projects in USA

Two 5 mw projects in Japan

Domestic Projects ground anchor of solar mounting system:

6 mw projects in Dongying Shandong Province

10 mw and 20 mw projects in Xigaze Tibet

5 mw projects in Yayuguan Gansu Province

10 mw projects and 50 mw in Wuhai and Siziwang Banner Mongolia

5 mw projects in Zhuhai Guangdong Province

10 mw prjects in Delingha and Golmud Qinghai Province

10 mw projects in Lingwu Ningxia

5. Brief Introduction of WBQ:

WBQ company was the biggest supplier of ground anchor products in China since 1999.

As the only patent holder in China fro ground anchor foundation system, WBQ has developed different kinds of ground anchor to meet different applications,and has exported them to EU,USA,Canada,Australia,Czech Republic,Greece and

Middle East countries. WBQ has become a trade mark with exceptional success, unsurpassed quality and futuristic technology in ground anchor foundation system fields.

WBQ's own research and development department is constantly expanding to ensure the ongoing supply of new

innovations. Around 10 registered patents are the proof of the innovative development in this expanding company.

Hot dipped galvanzied ground anchor with flange Hot dipped galvanzied ground anchor with flange
