Popular Electronic Product The fourth-generation i7 L3 4MB Cache Intel HD 4400-5000 Graphics Top Grade Fanless Mini Pc
Model |
IN-I7B |
Ports |
DC 12V HDMI DP Gigabit LAN USB 2.0*2 USB 3.0*4 MIC Input SPK Output |
Processor |
Intel Core i7 4500U 4650U 4600U 1.8Ghz Dual Core Four Threads,we will ship randomly per the stock. |
Memory |
Support Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G) |
Hard Disk |
Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB) |
GPU |
Haswell/The fourth-generation i7 L3 4MB Cache Intel HD 4400-5000 Graphics |
WiFi Optional |
Dual Band Wireless-(150Mbps or 300Mbps optional) |
Package |
Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand |
Super Premium Ice barbed version fanless cooling computer outrageously starter, four-generation Haswell architecture i7 4500U processor, 4MB cache Turbo three highest 3.0Ghz, HD4400 graphics core 4K very clear
Support 4K HD output, support for DP digital high-definition interface, performance evaluation of Master Lu about 100,000 full version Sata3 only for the king was born, and only for tolerance from, do fanless mini computer in luxury
The world's first i7-4500U fanless mini PC Sync starting
Haswell i7-4500U ultimate super-cooling version has a surprise ice thorn listed
[Features]: zero decibel noise fanless aluminum core graphics IntelHD4400 smooth high-end 3D games to play online games perfect pass to kill everything perfect support 4K HD 3D Blu-ray support
The fourth-generation Core i7-4500U onboard processor supports Turbo Boost Technology Turbo Turbo to 3.0GHz up to 4MB cache, but only 15W TDP HD4400 integrated graphics core
CPU technical parameters i7 4500u
CPU frequency: 1.8GHz Turbo 3.0 Ghz
CPU FSB: 100MHz
CPU multiplier: 18 times
Microarchitecture: Haswell
Core Code: Haswell
Cores: Dual-Core
Threads: four threads
Manufacturing Process: 22 nm
A cache: 2 × 32KB
Two cache: 2 × 256KB
Three cache: 3MB
Bus Type: DMI
Bus frequency: 5.0GT / s
Thermal Design Power: 15W
Function parameters: Hyper-Threading technology, virtualization technology, 64 technology
Multimedia instruction sets: MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX
Display Core Model: Intel HD Graphics 4400
The basic frequency: 200MHz
Max Dynamic Frequency: 1100MHz [1]
1. Gigabit LAN support diskless boot HDMI 4K digital high-definition interface output DP interface supports both HD 3D Blu-ray
2. 12V-19V wide voltage external DC power supply, environmental protection, routine using only 15W to 28W power
3. Six USB which four USB3.0 2 USB2.0 ports full-1000M 300M WIFI wireless network card optional
4. Intel Haswell Express Chipset
5. Supports energized electric power function supports Wake on LAN
6. All solid, shock, drop, long-term stable and reliable operation, 32G SSD solid state disk speed of 300M / S support SSD RAID0 maximum speed of more than 700M per second
Market positioning:
1 Living room HD computer, put the TV in the living room below, after connecting the TV as a movie player, Internet access and viewing photos to use, but also do download machine, download movies (large capacity hard drive)
2 Business office preferred. Online shopping mall, shop office use, environmentally friendly energy, save electricity. Only 15W power down, companies office, save space. Many advantages, as the business office.
3 Rooms dedicated computer aluminum exterior, elegant, upscale. Placed hotel rooms is very convenient, all-solid-state design, not damaged, no dry sound, low power consumption, energy saving.
4. Education industry-specific computer has better performance than low-end cloud terminal, more convenient software compatibility, better color, faster, more suitable for the education sector.
Parameters as follows:
CPU interface BGA package, the board posted CPU
CPU board i7-4500U Core Duo 18GHz CPU Turbo 3.0GHZ CPU bus (FSB) 100MHz
Chipset Intel haswell single chipset
Three cache (L3 Cache) 4MB,, CPU integrated
BIOS AMI BIOS, ACPI supported, support energized electrical power function supports Wake on LAN
System Memory 2 SO-DDR3 SDRAM memory slot up to 16GB DDR SDRAM
Built-in graphics core built-in Intel HD Graphics4400 Show
Support DP HD output interface supports HDMI output and can vary significantly synchronous output
NIC onboard RTL 8111DL 10/100/1000 BaseT LAN optional super-300M dual antenna WIFI signal
Sound using ALC662 chip, providing 6-channel audio
1. MSATA3.0 interface, support 6Gb / s 2. supports two SATA3 6Gb / s
MINI PCIE two MINI PCIE interface, full-height half-height support MSATA SSD support MINI PCIE wireless card
WIFI 300M WIFI built-in module, an external antenna to enhance signal
USB 6 x USB which four USB3.0 2 x USB2.0

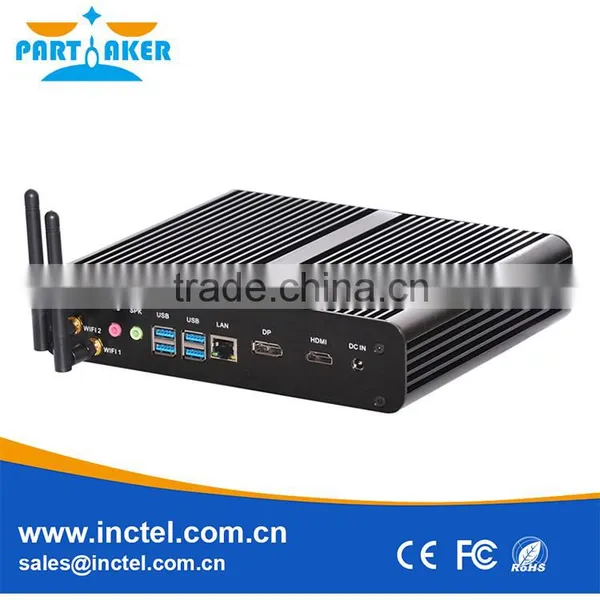

Rear panel HDMI DP 1 * RJ-45 4 * USB ports 1 * DC (in)
12V AUDIO-OUT AUDIO-MIC
Power Support DC IN 12V-19V wide voltage power supply
Sizes 185mmx 220mmx40 mm
Weight: 2000 grams to 2300 grams or so
Temperature:
Operating Temperature:
0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)
Storage Temperature:
-20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)
Relative Humidity:
10% ~ 90% (non-condensing)
Experience scores under WIN7 system, CPU speed of the computer experience points to reach 7.1 points, and even more amazing is that 3D gaming graphics score of 6.6 points
Master Lu performance test results, showing to get the gold medal, this 32G SSD dual channel memory test results. Fanless operation, power 25W mini-computers, has miraculous properties.
Measured reach 1.0Gbps Gigabit Ethernet LAN speed networking to ensure high-speed stability, and the perfect support for diskless applications
In the boot speed WIN7 start 77 program reached within 20 seconds, beating the national 99 percent of computers, was awarded a five-star 360 God Machine.
I7 fanless PC market announcements: The world's top global unique fanless computer I7 4500u successful production. Only king born only for tolerance and do fanless mini PC comes standard with four generations HASWELL luxury i7 processor architecture similar products only Gigabyte brand INTEL brand mass production market, Our released fanless I7 for only a global starter. Barebones price of similar products in the mareked accounted for $612 while the same processor, fanless design, barebones $386 for sale from us.
New Listing Announcement: I7 4500U listing Meanwhile, unique fanless computer desktop architecture has been successfully completed mass production, a lot of outlets. Global exclusive design, the exclusive production based H87 top chipset supports processor G1820 I3 4130 I5 4670T I7 4770T can all be supported. The performance fanless computer again leap. Specific pricing and flexible sales made later.
This pc is black brushed appearance.
New listing announcement: I7 4500U and J1900 synchronous production listed on the occasion, the world's smallest quad-core mini fanless PC has completed the first volume production, using INTEL J1900 quad-core processor, only 7.7W power consumption, performance of the too, palm-sized, 14X10X3CM size, weight 350g. Once again challenge the desktop size and performance ratio limit. Total price of only $135 or so as barebones. Extremely competitive. Motherboard production is completed, waiting for the cabinet in place will be on sale, the highly anticipated, so stay tuned!
Thousands spot, domineering sold a small amount of I7 4650U lot I7 4500U
Master Lu computer performance evaluation beat 90% of the country, to get the gold medal, performance Needless to say, however, under such a powerful performance is ultra-small size, low power consumption (processor TDP = 15W) aluminum fanless noise 0 db. Achievement fanless PC king. There are always sophisticated mini-computer trend, while others can only follow the crowd!
