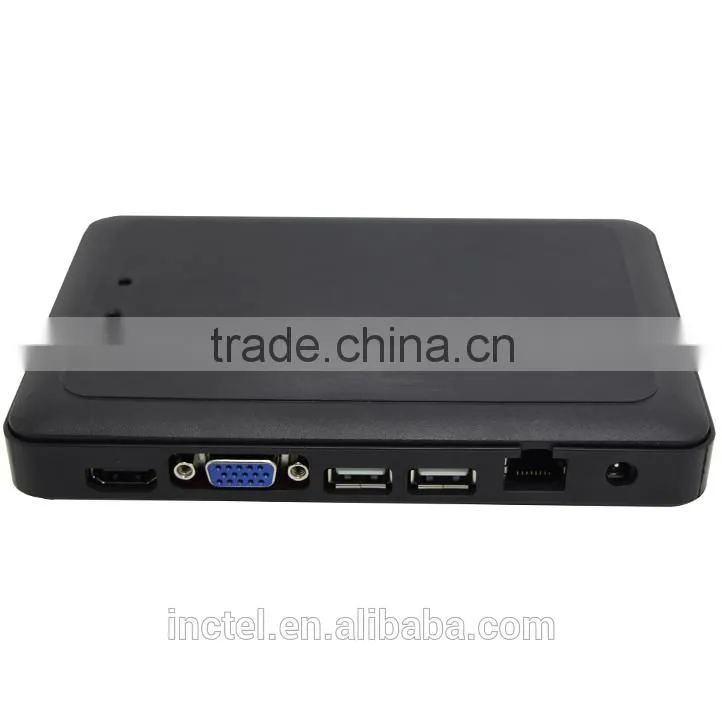

Help CenterThe Newly Designed Satellite Receiver Cloud Ibox Dvb-S2 Iptv
Related Products
-
2015 Hot Sell Smart Cloud Ibox 3 Enigma 2 Linux Smart Tv BoxUS$ 1 - 200MOQ: 2 Units -
2015 Best Selling Top Quality Cloud BoxUS$ 1 - 200MOQ: 2 Units
-
New Design Hot Selling Cloud Ibox Full Hd 1080PvideoUS$ 1 - 200MOQ: 2 Units
-
China Wholesale Mini Cloud Ibox 3 Free X MoveeUS$ 1 - 200MOQ: 2 Units
-
High Quality Promotional Cloud Ibox With Twin TunerUS$ 1 - 200MOQ: 2 Units
2015 Alibaba Best Selling Top Quality Cloud Box

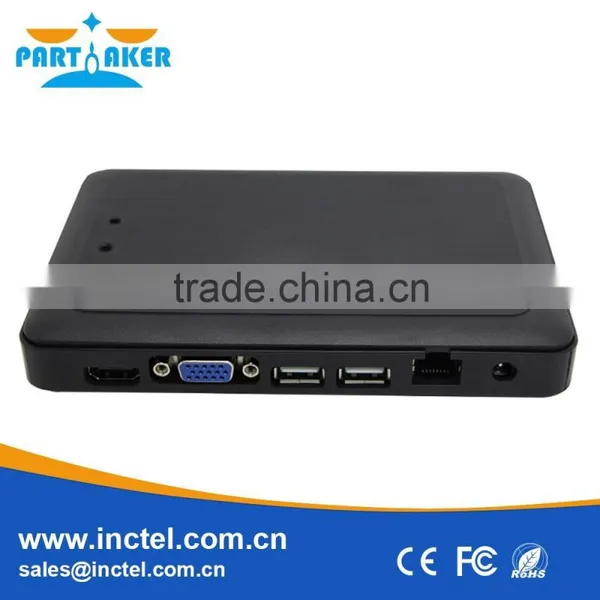

Partaker N1 Working Principle
As a leading agent in cloud terminal industry development stage,our Partaker N1 products uses the world's most stable and low power consumption ARM frame,plays a leading part in achieving the thin client function on the LINUX platform,also expends HMDI port,VGA port ,USB 2.0 port,LAN port,WIFI port,and more PS/2 for both mouse & keyboard, Partaker N1 support the industrial scanning gun and printer perfectly,USB card reader etc.
The mature thin client solution depends on the inner LINUX system ,Partaker N1 is the newest thin client products that support double-screen display,not only support WIN 7 os remote control without time display issue,but also its working speed was 2 times faster than other usual thin clients.
Partaker N1 features
1.High compatibility! Support all Windows/Linux server
No need to set time and date. Connect with host pc directly!
2. HDMI and VGA Resolution support
Resolution:support HDMI 1920*1080P at max.
Support 1366*768 resolution which can support irregular monitor such as 15.6/18.5inch
3. Attractive price&Excellent working performance
N380(WIN CE 6 OS )<Partaker N1 2 times faster < N3(Linux OS) 2 times faster
Main function:
Partaker N1 makes the remote connection to the server by RDP 7.0 protocol,it is free to use the software on the host after connection, such as office software,financial software, ERP software, real estate software, airline flight information software etc.
Fast to connect, easy to operate & maintain, Partaker N1 is one green computer that not only reduces the cost of enterprise computer inputs,but also reduces maintenance costs,it meets the corporate office network construction and easy maintenance, and security requirements, greatly improves the corporate office efficiency, provides customers with unprecedented convenience.
RDP7.0 remote connection
High compatibility with windows 7 server,very stable performance,it features a higher security. Partaker N1 thin client connects to windows 7 os server by RDP 7.0 protocol, it unified customer service to each user,and upgrades and maintenance work in one step, make it being "zero" maintenance.
Overview HD big picture
Support most picture formats,such as JPG,BMP,GIF,TIFF,PNG etc,also supports picture zoom and other operations.
High-speed WIFI module
Without cumbersome wiring, more convenient to move, Partaker N1W provides users a better network environment.
Specification | ||
CPU Model |
All winner A20 dual-core 1.2 Ghz |
|
Protocol |
RDP7.0 |
|
RAM |
DDR3 256M |
|
Flash |
512M |
|
OS |
Inner core Linux3.0 |
|
WIFI |
Optional(150Mbps) |
|
Resolution |
VGA: 800*600, 1024*768,1366*768,1280*1024, 1440*900 HDMI: 1280*720P,1920*1080P |
|
OS supported |
Windows XP / Windows 7&8 /Linux OS(Recommend win7) |
|
I/O | ||
Output |
1*HDMI port 1*VGA port 4* USB2.0 port 1*Audio output port |
|
Input |
1*power 5V-2V port 1* LAN port 1* Audio input port 1*WIFI |
|
Appearance | ||
Shell color |
Black |
|
Size |
145X92X25MM |
|
Weight |
0.5KG |
|
Power |
5V/2A |
|
Consumption |
5W |
|
Performance | ||
1 |
Strong compatibility |
|
2 |
Support windows 7/8/Linux server,high compatibility |
|
3 |
Dual mode display by HDMI /VGA |
|
Compare |
N380(WIN CE 6 OS )<Partaker N1 2 times faster < N3 (Linux OS) 2 times faster |
|
Recommend configuration for Server
User Number |
CPU |
RAM |
HDD |
Below 10 users |
Intel Core Duo2.0GHZor above |
2GB-4 GB |
500GB |
10-20 users |
IntelCore Duo2.0GHZ above or Quad-Core |
4GB-8GB |
500GB |
20-30 users |
Core Quad-Core 2.6GHZ above |
8GB |
1TB |
30-50 users |
Xeon dual-core 2.3GHZ above or Quad-Core |
8GB-16GB |
1TB-2TB |
Thin Client Application Areas
1.Computer Digital Libraries
2.Educational Institutions
3.Solar Computer Applications
4.Schools, Computer Labs
5.Small, Medium, Business & Office Applications
6.Manufacturing Industries & Much More
7.Computer Education for Rural Areas
