Home > Instruments & Meters > Test Instrument > Test Machine > Optical Tool Preseting Machine ET-400HR

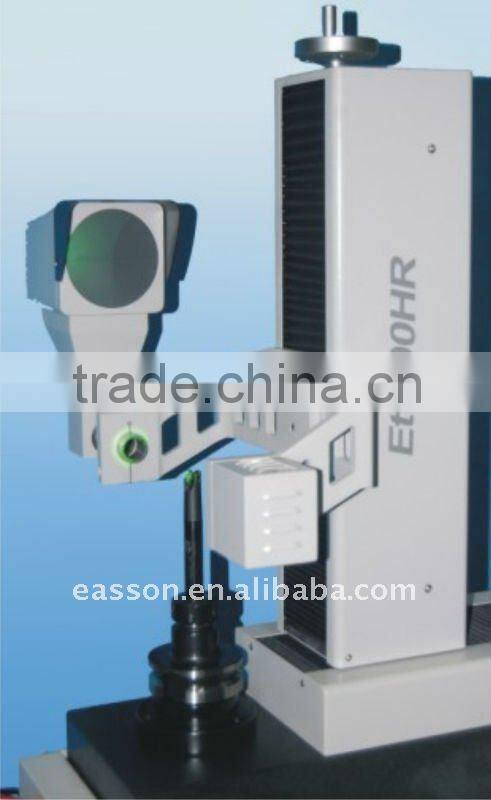

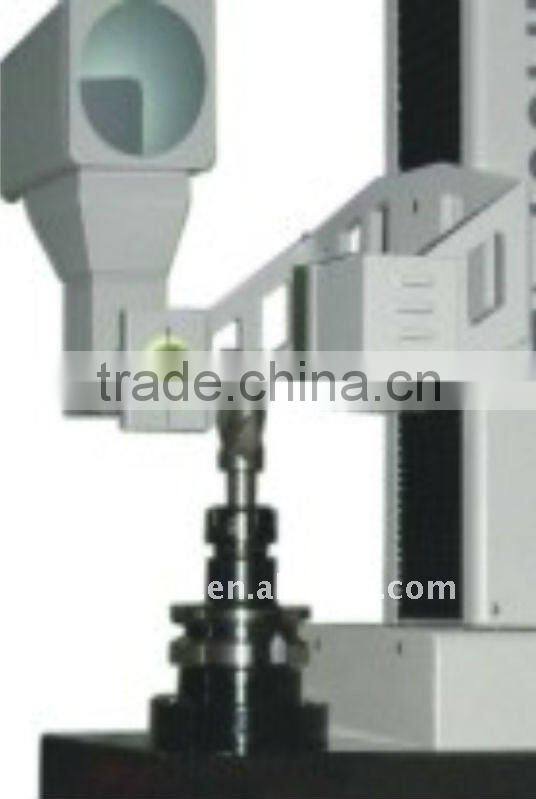

Optical Tool Preseting Machine ET-400HR

Name: Optical Tool Preseting Machine ET-400HR
Brand: Easson
SKU: 117835477
Availability: InStock

Optical Tool Preseting Machine ET-400HR thumbnail-1

Optical Tool Preseting Machine ET-400HR photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Easson

Model Number:

ET-400HR

Contact Supplier Request Quote Chat Now

Suzhou Easson Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Easson

Model Number ET-400HR

Model: ET-300HR, ET-400HR, ET-600HR

Compare with mechanical type tool presetter, optical tool presetter can see tools profile directly from screen, in this way you can measure and examine the tip angle and tip arc by data processor or even compare directly on screen. One fixed and one rotatable grid screen, with two invention patents can improve efficiency clearly.

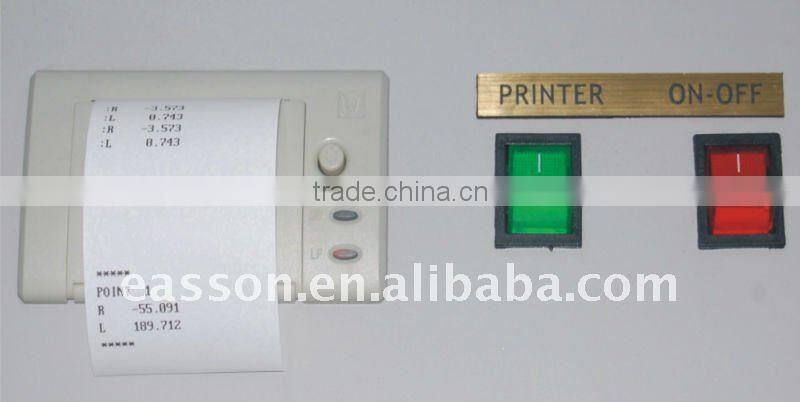

Micro Printer

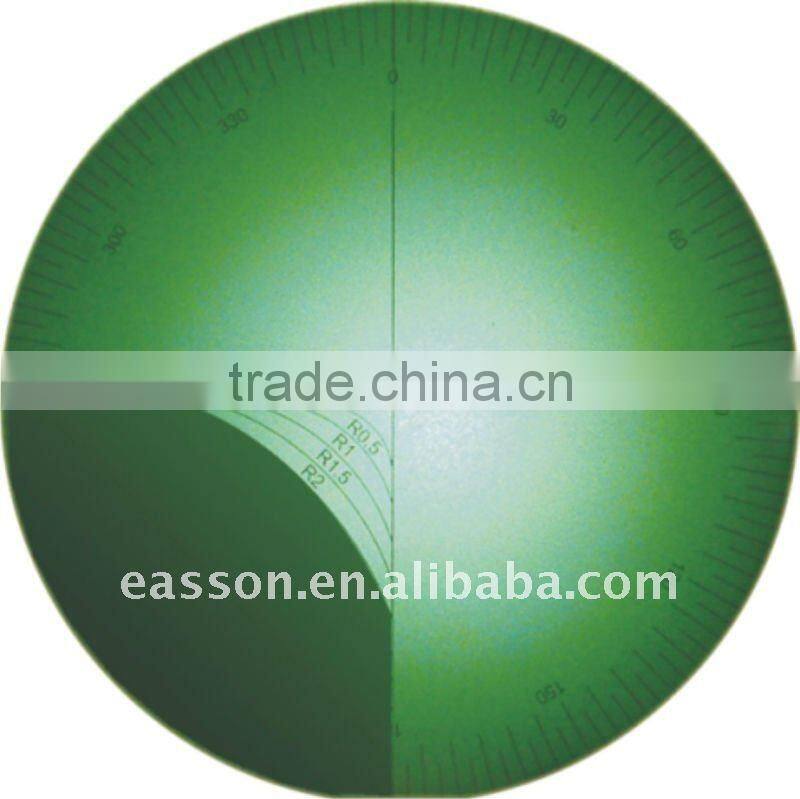

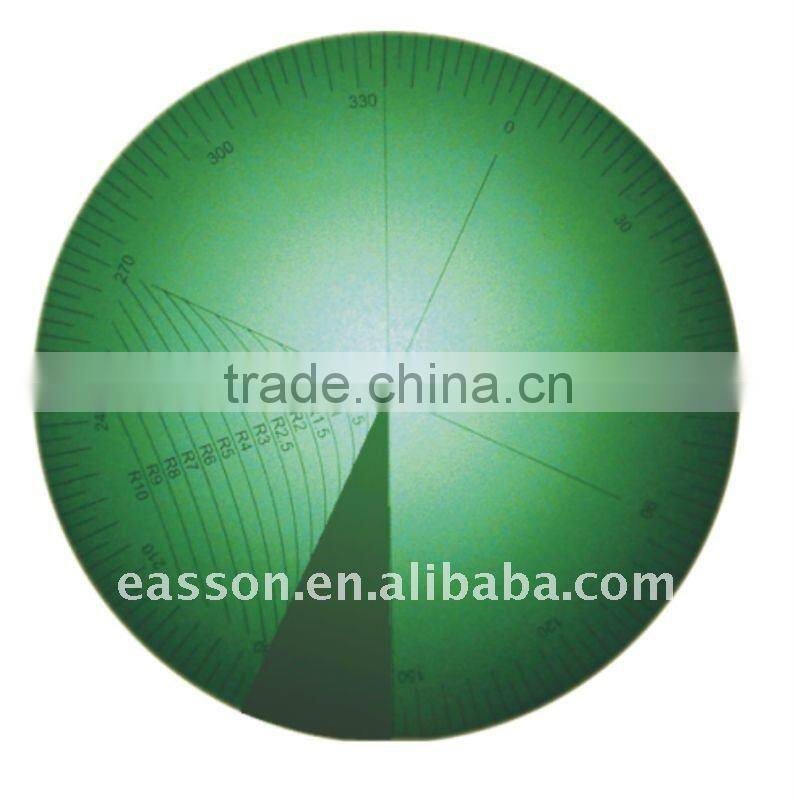

screen Read the radius and angle directly from screen

Model	ET-300HR	ET-400HR	ET-600HR
Measuring Length for Spindle	300mm	400mm	600mm
Measuring Length for Diameter	300mm	300mm	400mm
Measuring System	High precision glass scales with 0.001mm resolution
Screen	Φ110mm, Fixed and rotatable reticules on the screen can let you directly read out the radius and angle of the cutters
Magnification	20x
Accuracy	≤4um
Standard Spindle	BT30/40/50,HSK63/80/100
Adapter	BT30/BT40, BT30/B HSK63/BT50, HSK80/BT50, HSK100/BT50
Function	Measure Tools' Radius, Length, Tool tip angle, Tool tip arc
