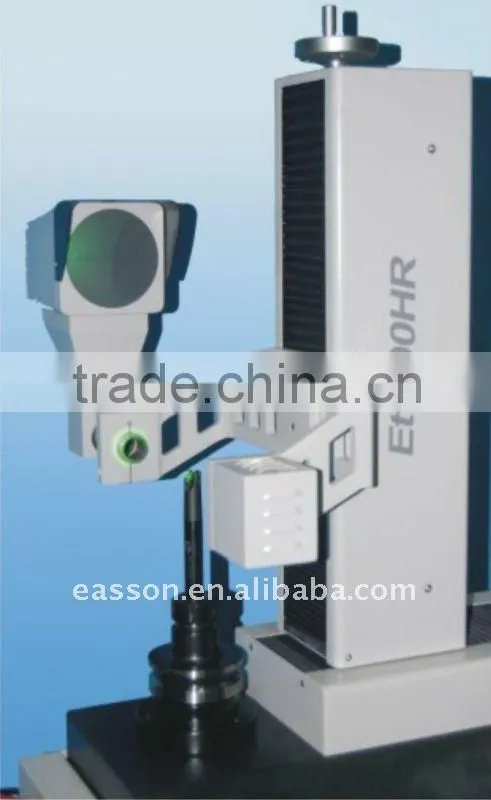

ET-400HR Optical Tool Preseting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
EASSON
Model Number:
ET-400HR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ES 650B High Speed CNC Engraving and Milling MachineNegotiableMOQ: 1 Set -
EASSON VMC Series CNC Machining CenterNegotiableMOQ: 1 Set
-
EASSON ESG-500 CNC Tapping and Drilling MachineNegotiableMOQ: 1 Set
-
EX-100 Universal Length Measuring MachineNegotiableMOQ: 1 Set
-
ET-300H Mechanical Tool Preseting MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
EASSON
Model Number
ET-400HR
Model: ET-300HR, ET-400HR, ET-600HR

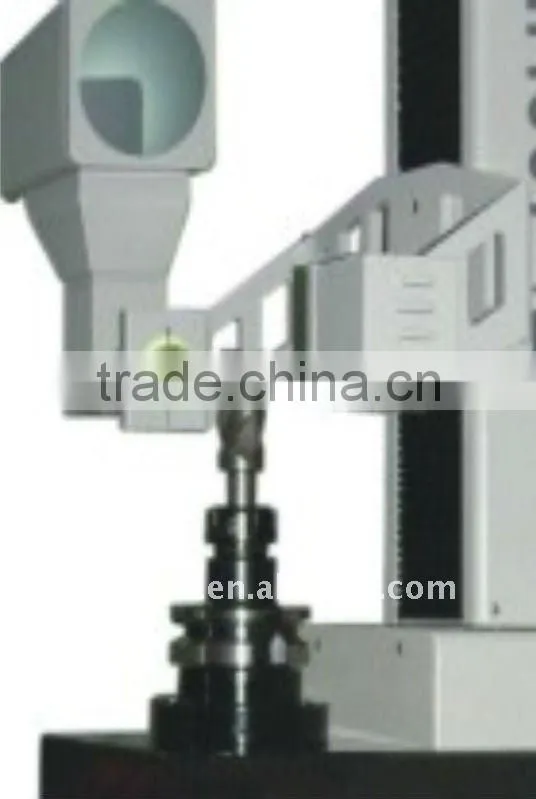

Compare with mechanical type tool presetter, optical tool presetter can see tools profile directly from screen, in this way you can measure and examine the tip angle and tip arc by data processor or even compare directly on screen. One fixed and one rotatable grid screen, with two invention patents can improve efficiency clearly.

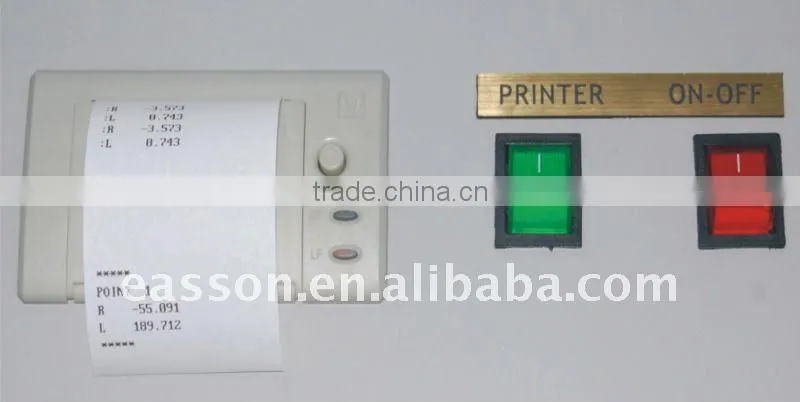

Micro Printer

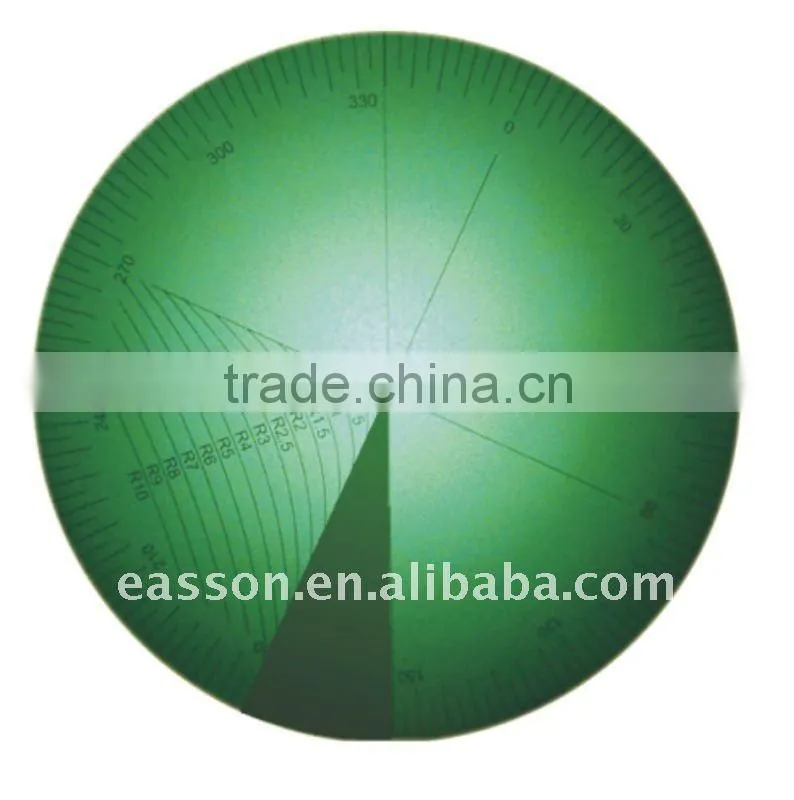

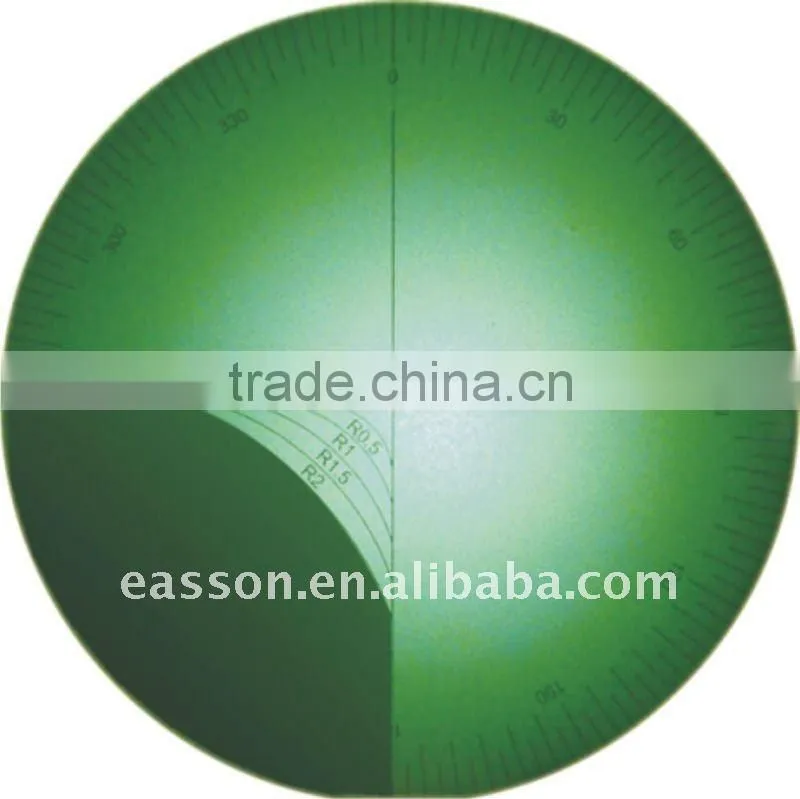

Read the radius and angle directly from screen
| Model | ET-300HR | ET-400HR |
ET-600HR
|
| Measuring Length for Spindle | 300mm | 400mm | 600mm |
| Measuring Length for Diameter | 300mm | 300mm | 400mm |
| Measuring System | High precision glass scales with 0.001mm resolution | ||
| Screen | Φ110mm, Fixed and rotatable reticules on the screen can let you directly read out the radius and angle of the cutters | ||
| Magnification | 20x | ||
| Accuracy | ≤4um | ||
| Standard Spindle | BT30/40/50,HSK63/80/100 | ||
| Adapter | BT30/BT40, BT30/B HSK63/BT50, HSK80/BT50, HSK100/BT50 | ||
| Function | Measure Tools' Radius, Length, Tool tip angle, Tool tip arc | ||
