Help CenterEASSON GS Series Linear Scale
Related Products
The GS series Optical Scales covers all the most common applications for machine tools and measuring instruments. It includes 5 micron & 1 micron scales and two output signals (TTL & RS422A)
[Advanced optical Measuring systerm]

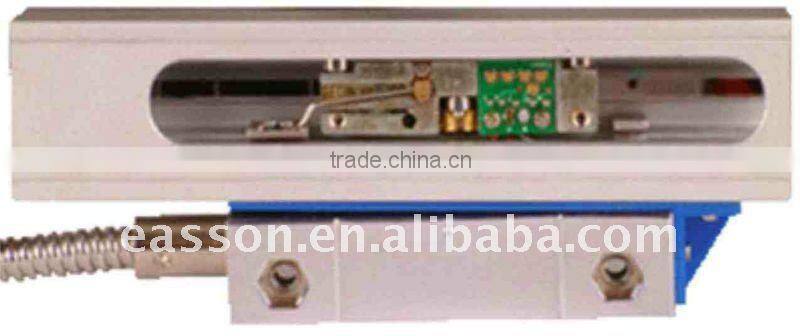

The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slide ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

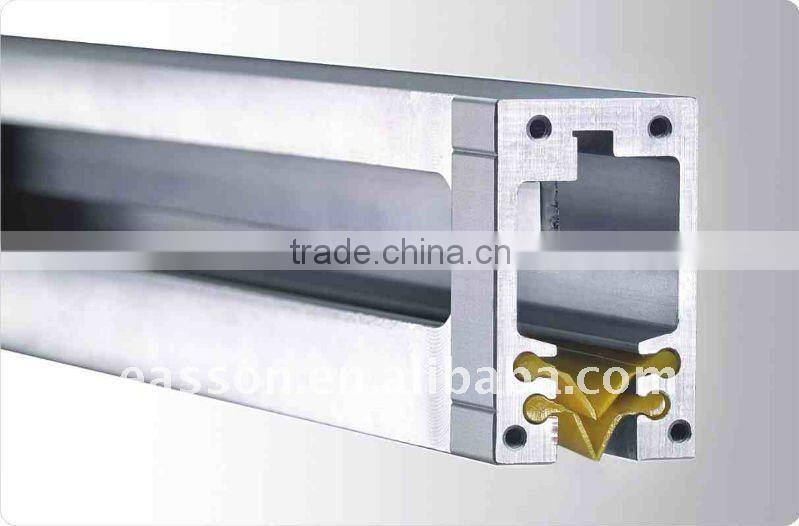

[Double Seals Design]
The plastics seals of GS series scales use an innovative material to offer.
superior oil resistance, high elastic recovery properties and durability. Carefully designed lips geometry offer low slide resistance.

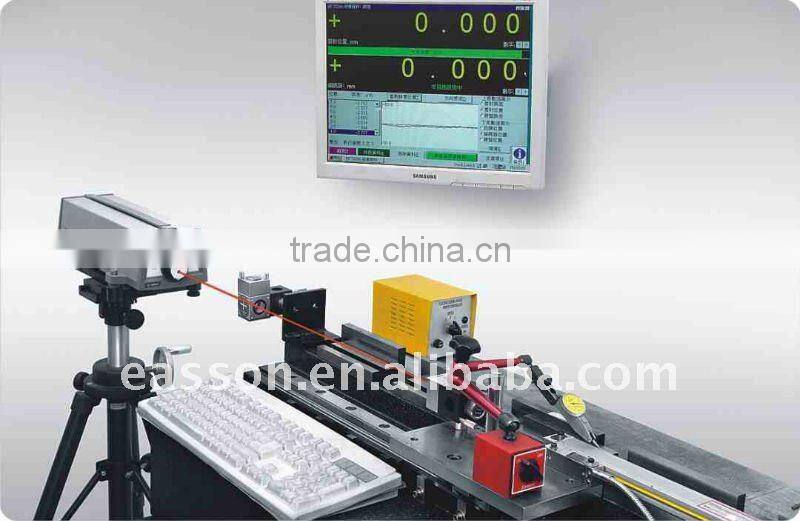

[100% Laser calibration]
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy comply 100% with the specifications.

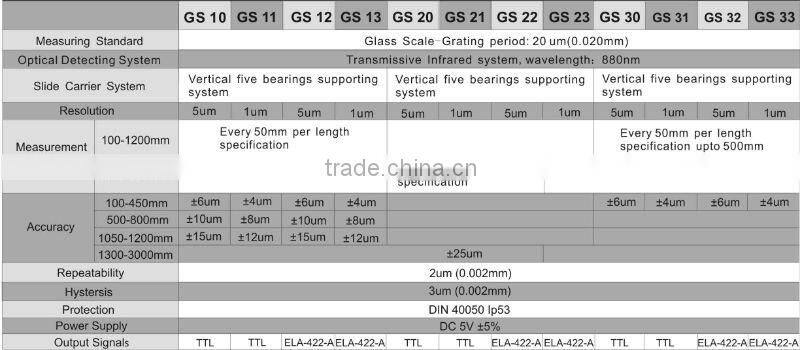

Technical Specifications:
