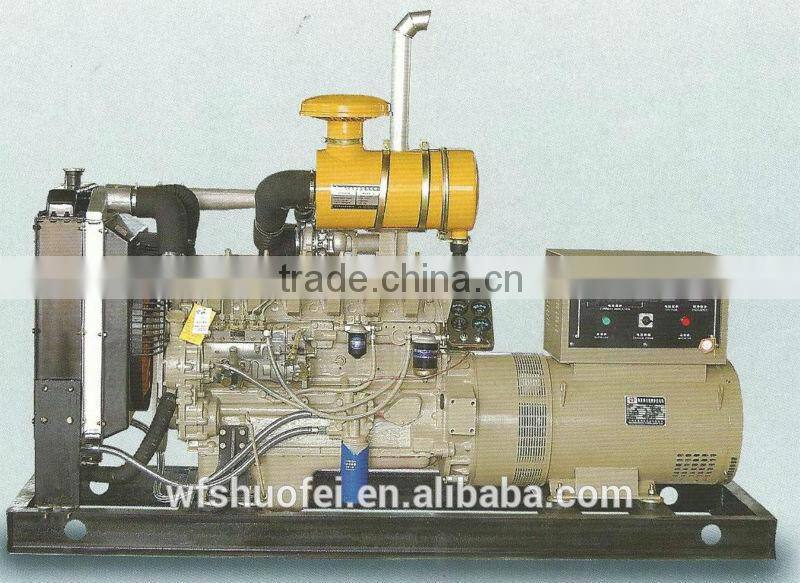

100kw water cooled generator
USD $4,485 - $4,715
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | LX | |
| Model Number | TZH-100 | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50HZ | |
| Rated Power | 100KW | Rated Voltage | 400/230V | |
| Rated Current | 180A |
Product Description
Specifications
water cooled generator1. Factory direct price
2. Engine model: R6105AZLD
3. Water cooled
4. Certificate: ISO9001:2008
Product Description
| DETAILED PARAMETERS | ||
| Generator | Genset Model | LX-100KW |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8lagging | |
| Rated Voltage(V) | 400/230 | |
| Rated Power (KW/KVA) | 100/125 | |
| Rated Current(A) | 180 | |
| Phase/Wire | 3Ph, 4Wr | |
| Weight (kg) | 1500 | |
| Diesel Engine | Model | R6105AZLD |
| Type | Water-cooled, inline, 2-stroke, direct injection,1500 rpm | |
| Rated Power (kw) | 100 | |
| Intake Type | Turbocharged intercooled | |
| No. of Cylinder | 6.L | |
| Bore×Stroke (mm) | 105X130 | |
| Compression Ratio | 16:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤111 | |
| Exhaust Temperature (℃) | ≤600 | |
| Starting Model | DC 24V electric starter | |
| Specific fuel consumption(g/KW.h) | ≤224.2 | |
| Exhaust back pressure (kpa) | 3 | |
| Alternator | Model | TZH-100 |
| Rated Power (KW/KVA) | 100/125 | |
| Type | Three-phase synchronous | |
| Adjustable voltage amplitude | ±5% | |
| Speed regulation mode | Auto or Manual | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
Packaging & Shipping
Company Information
FAQ
1). Manufacturer or Trading Company
Our factory is a generator manufacturer for 11 years, and specializing in the production of diesel generators from 15KW to 1000KW
2). MOQ.
1set
3). Spare Parts
a. Free spare parts with the order shipped
b. Within 10 working days after payment send by express.
4). Shipment
We can help customer to arrange shipment.
5). Delivery Time
One container 20~30days
6). Payment Terms
30% deposit T/T, 70% T/T before shipment or L/C at sight
7). Generator Options
Diesel Generators : 15kw to 1000kw
8). Generator Logo
a. We have our own logo LX
b. We can make customers own logo in the generator for free.
9). Package and Loading qty
a. Nude Package or Wooden Package
b. Loading qty : as the container's size
