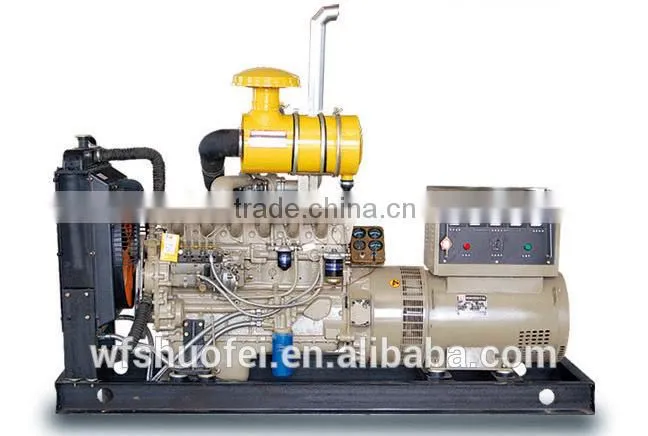

75KW 6 Cylinder 4 Stroke Generator

US$ 4,140 - 4,370 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

TZH-75

Weifang Shuo-Fei Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name LX

Model Number TZH-75

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50HZ

Rated Power 75KW

Rated Voltage 400/230V

Rated Current 135.3A

Specifications

4 stroke generator
1. Factory direct price
2. Engine model: R6105ZD
3. Water cooled
4. Certificate: ISO9001:2008

Product Description

DETAILED PARAMETERS
Generator	Genset Model	LX-75KW
	Rated Frequency	50HZ
	Power Factor	0.8lagging
	Rated Voltage(V)	400/230
	Rated Power (KW/KVA)	75/93.75
	Rated Current(A)	135.3
	Phase/Wire	3Ph, 4Wr
	Weight (kg)	1300
Diesel Engine	Model	R6105ZD
	Type	Water-cooled, inline, 4-stroke, direct injection,1500 rpm
	Rated Power (kw)	75
	Intake Type	Turbocharged
	No. of Cylinder	6.L
	Bore×Stroke (mm)	105X125
	Compression Ratio	16:1
	Mechanical Governor Rated	≤5%
	Electronical Governor Rated	≤1%
	Noise Level (dBA)	≤111
	Exhaust Temperature (℃)	≤600
	Starting Model	DC 24V electric starter
	Specific fuel consumption(g/KW.h)	≤232
	Exhaust back pressure (kpa)	3
Alternator	Model	TZH-75
	Rated Power (KW/KVA)	75/93.75
	Type	Three-phase synchronous
	Adjustable voltage amplitude	±5%
	Speed regulation mode	Auto or Manual
	Power efficiency	90.50%
	Insulation Class	H
