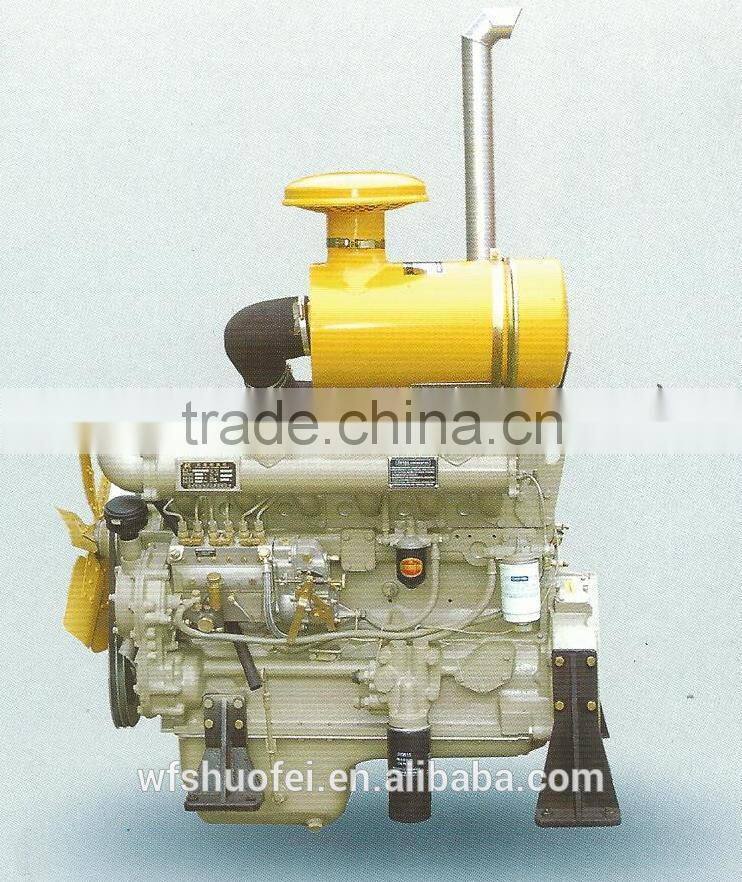

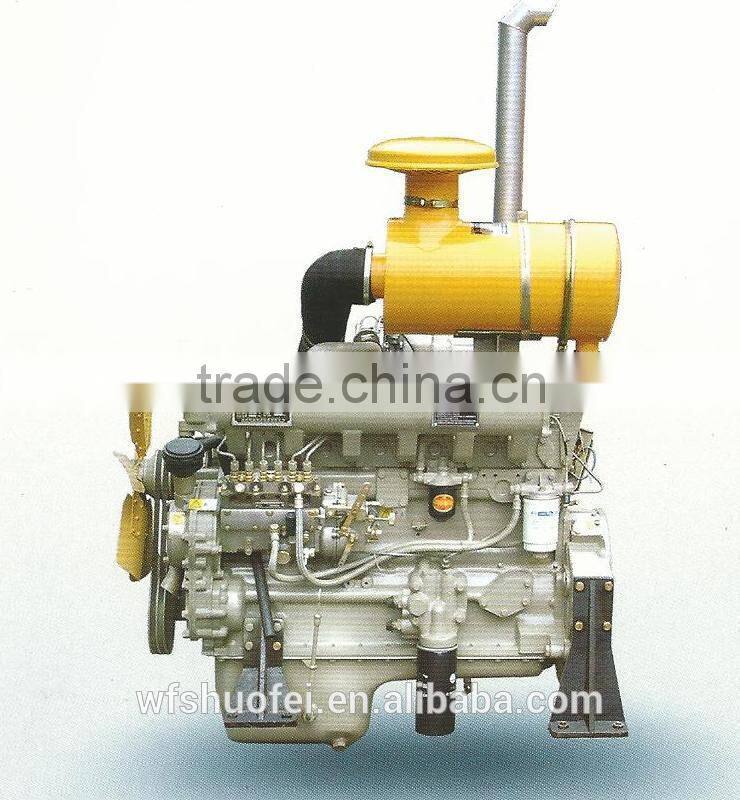

6105series 6105zd Genset 6 Cylinder 4stroke Diesel Engine

US$ 2,185 - 2,760 MOQ: 1 Set

Key Specifications

Condition:

New

Usage:

Other, genest, Genset

Fuel:

Diesel

Weifang Shuo-Fei Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, genest, Genset

Fuel Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Shandong, China

Brand Name LX

Model Number 6105ZD

Dimension(L*W*H) 1200X700X1100

Weight 570kg

Certification ISO9001:2008

Warranty 1 year or 1500 running hours

After-sales Service Provided No overseas service provided

Specifications

6105 series 6 cylinder 4stroke diesel engine
1. Factory direct price
2. 6cylinder 4storke
3. Water cooled
4. Fuel: Diesel

Product Description

Engine model	R6105ZD	R6105ZD1	R6105AZLD	R6105IZLD	R6105C2	R6105C4
Type	4-stroke,inline, water-cooled, driect injection
Cylinder no.	6.L
*Borestroke (mm)**	105*125		105*130	105*135	105*125
Total emission of piston(L)	6.49		6.75	7.1	6.49
Compression Ratio	16:1				17:01
Cylinder firing order	1-5-3-6-2-4
Intake type	Turbocharged		Turbocharged intercooled		Natural aspirated
Rated power kw/(r/min)	84/1500	94/1800	110/1500	132/1500	45/1500	65/2000
High idling speed(r/min)	≤1575	≤ 1890	≤1575		≤ 1620	≤ 2160
Low idling speed(r/min)	≤ 600
Maximum torque speed(N.m/r/min)
Brake mean effective pressure (kPa)	1035	965	1237	1245	554	601
Specific fuel consumption(g/KW.h)	≤ 232		≤ 224		≤ 239
Specific oil consumption(g/KW.h)	≤ 1.63
Exhaust Temperature (℃)	≤ 600
Crankshaft steering	Counterclockwise(From the power output end at)
Cooling method	Inforced Water Cooled
Lubrication method	Pressure and splash composite
Starting method	Electric
Net weight(kg)	570		580	610	520	530
Usage	Genset				Marine engine
