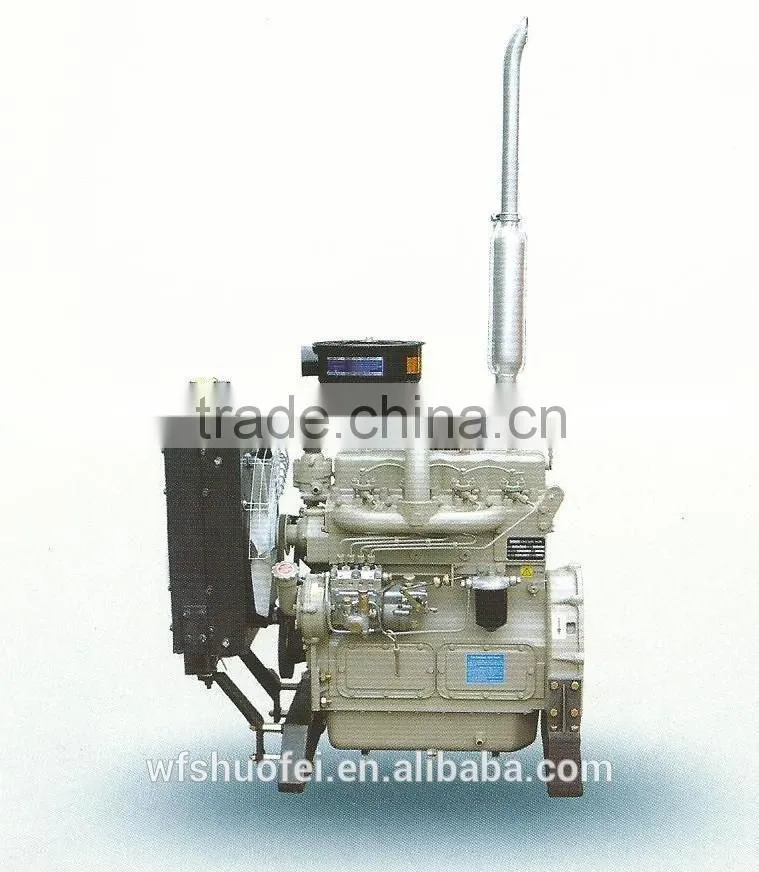

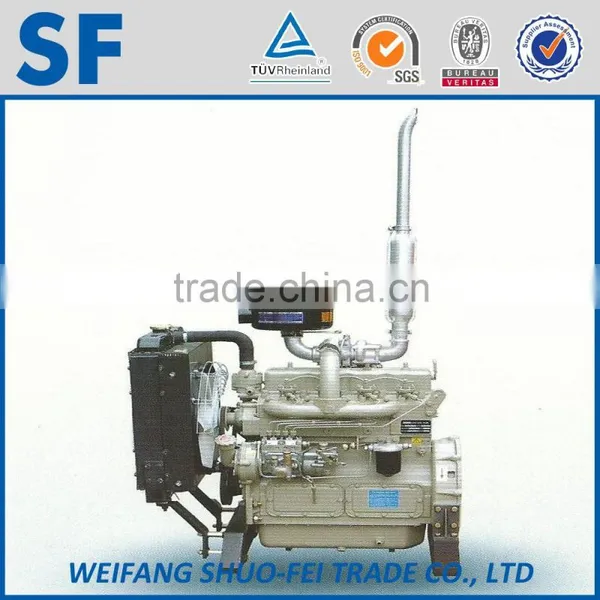

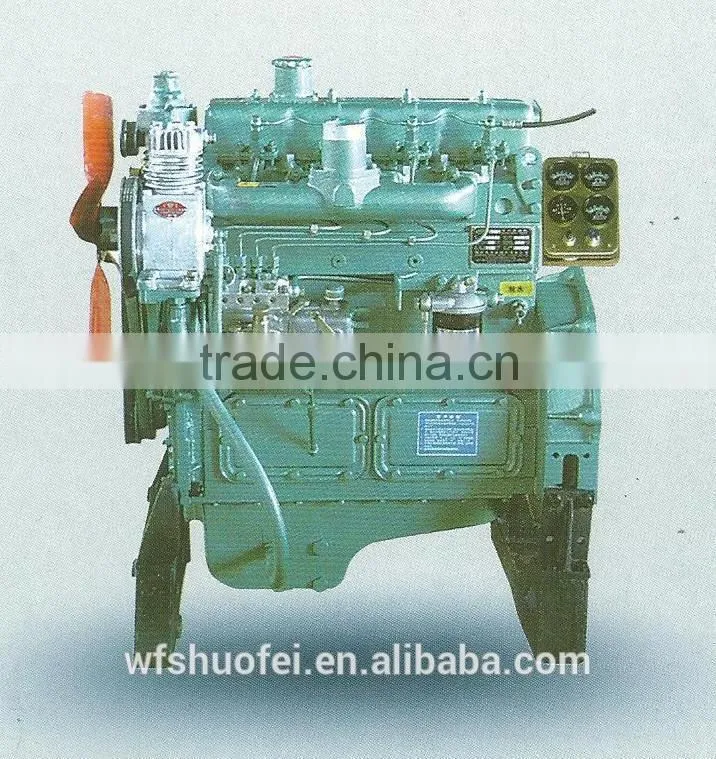

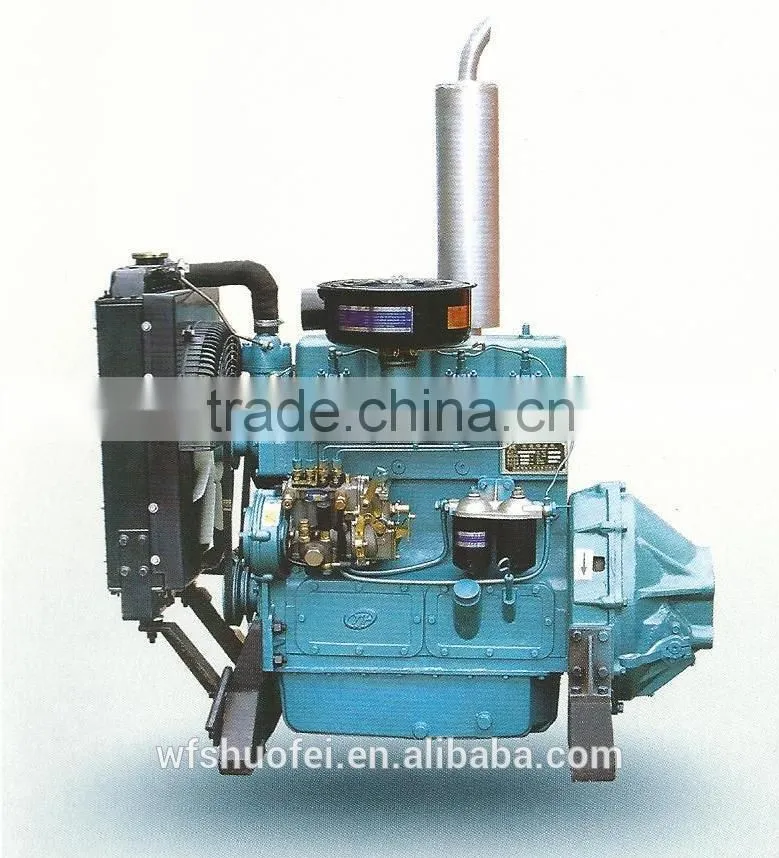

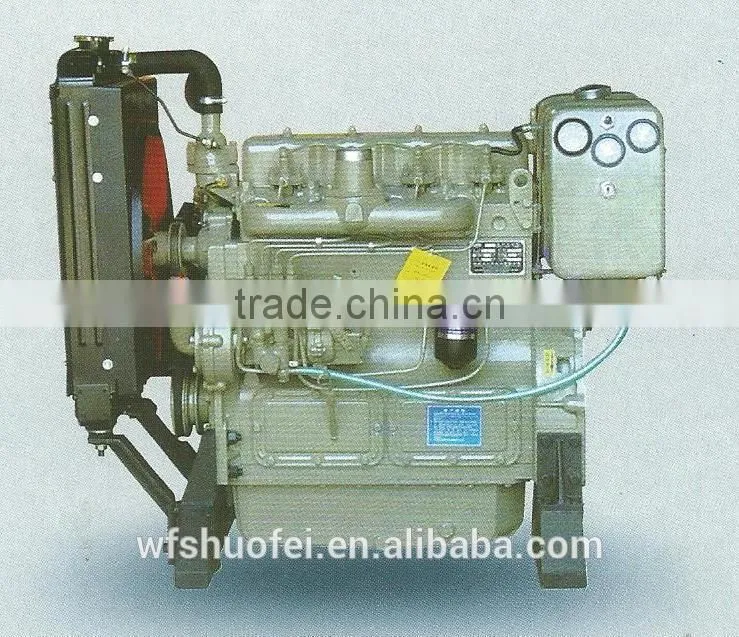

4100series K4100zd 4cylinder Genset Diesel Engine

4100series K4100zd 4cylinder Genset Diesel Engine thumbnail-1
4100series K4100zd 4cylinder Genset Diesel Engine photo-1
US$ 1,150 - 1,610 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, genest, Genset
Fuel:
Other, Diesel, Diesel
Contact Supplier Request Quote Chat Now
Weifang Shuo-Fei Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, genest, Genset
Fuel Other, Diesel, Diesel
Stroke 4 Stroke
Cylinder Multi-cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Shandong, China
Brand Name LX
Model Number K4100ZD
Dimension(L*W*H) 1100X700X1000
Weight 380kg
Certification ISO9001:2008
Warranty 1 year or 1500 running hours
After-sales Service Provided No overseas service provided

Specifications

4100series 4cylinder diesel engine
1. Factory direct price
2. 4cylinder 4storke
3. Water cooled
4. Fuel: Diesel





Product Description
Engine model ZH4100D ZH4100ZD 4100CD ZH4100G ZH4100K1 ZH4100K3
Type 4-stroke,inline, water-cooled, driect injection
Cylinder no. 4.L
Bore*stroke (mm) 100*115
Total emission of piston(L) 3.61
Compression Ratio 17:1
Cylinder firing order 1-3-4-2
Intake type  Natural aspirated Turbocharged  Natural aspirated
Rated power kw/(r/min) 30.1/1500 41.2/1500 30.1/1500 39/2000 45/2400 39/2000
High idling speed(r/min) ≤ 1575 ≤ 2160 ≤ 2640 ≤ 2160
Low idling speed(r/min) ≤ 500 ≤ 550
Maximum torque speed(N.m/r/min)         206/1680 210/1450
Brake mean effective pressure (kPa) 650 914 650 624 650
Specific fuel consumption(g/KW.h) ≤ 251
Specific oil consumption(g/KW.h) ≤ 2.04
Exhaust Temperature (℃) ≤ 470   ≤ 540 ≤ 470 ≤ 540 ≤ 470
Crankshaft steering Counterclockwise(From the power output end at)
Cooling method Inforced Water Cooled
Lubrication method Pressure and splash composite
Starting method Electric
Net weight(kg) 340 390 340 450 380 340
Usage  Marine genset Genset  Marine genset fixed operation  Engineering machine



4100series k4100zd 4cylinder genset diesel engine

4100series k4100zd 4cylinder genset diesel engine

4100series k4100zd 4cylinder genset diesel engine4100series k4100zd 4cylinder genset diesel engine4100series k4100zd 4cylinder genset diesel engine



Packaging & Shipping



 4100series k4100zd 4cylinder genset diesel engine



Company Information

4100series k4100zd 4cylinder genset diesel engine





FAQ



1). Manufacturer or Trading Company

    Our factory is a diesel engine manufacturer for 11 years, and specializing in the production of diesel engine2100 series 4100 series 4105 series 6105 series

2). MOQ.

    1set

3). Spare Parts

   a. Free spare parts with the order shipped

   b. Within 10 working days after payment send by express.

4). Shipment

     We can help customer to arrange shipment.

5). Delivery Time

     One container  15~30days

6). Payment Terms

    30% deposit T/T, 70% T/T before shipment or L/C at sight

7). Diesel engine Options

    Diesel engine :2100 series 4100 series 4105 series 6105 series

8). Generator Logo

   a. We have our own logo LX

   b. We can make customers own logo in the diesel engine for free.

9). Package and Loading qty

   a. Nude Package or Wooden Package

   b. Loading qty : as the container's size
