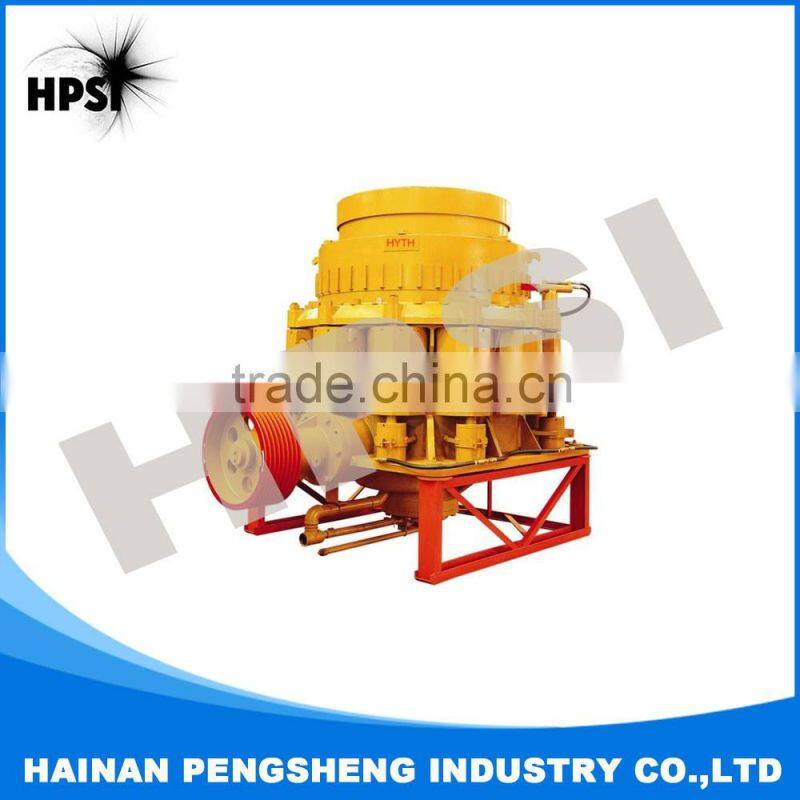

PYY100 Mining Equipment Hydrualic Cone Crusher, Cone Crusher Machine, Symons Cone Crusher

FOB Price

Negotiable

1 (Min. Order)

Port SHANGHAI QINGDAO GUANGZHOU
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	HPSI
Model Number	PYY100		Condition	New

Product Description

QUICK DETAILS

Condition:	New	Type:	Cone Crusher	Application:	Mining,Quarry,Chemical Industry and Construction,
Motor Type:	AC Motor	Power(W):	132KW	Capacity(t/h):	390
Place of Origin:	Guangdong, China (Mainland)	Brand Name:	DEGU	Model Number:	GYRATORY CRUSHER
Dimension(LWH):	Refer to Specification	Weight:	22.3T	Certification:	ISO,CE
Warranty:	1 year warranty	After-sales Service Provided:	Engineers available to service machinery overseas	Feeding Size:	200mm
Quality:	Superior	Product Classsification:	Low cost crushed stone high performance crushing machine	Production Line:	Free design for customer

PRODUCTS DESCRIPTION

gyratory cone crusher

1.Gyratory Cone crusher---introduction

It is widely used in sand making production line. Our cone crusher is one of the main equipment in sand making configuration. Cone crusher is the secondary crushing after jaw crusher for the croast crushing work.

2.Gyratory Cone Crusher----structure

Cone crusher is mainly consists of driving part(motor, pulley, gears mesh, ), crushing cavity(eccentic sleeve, main shaft, mantle, concave), feeder pot and so on. Like the picture showing:

Cone crusher---work principle:

By the driving of motor, the gear mesh will transport the rotation to the eccentric sleeve, the mantle will appoach and leave the concave in recycle. This movement will lead the crushing motion derectely, material wil be discharged from the bottom.

Gyratory Cone crusher---features:

1. Larger capcity achieved by the design of larger crush throw

2. Setting of discharge opening is hydraulic drive

3. Grease seal reduces dust contamination effectively

4. Cavities of standard or short head are changeable through different mantles and bowl liners

5. Hydraulic overload protection device helps to remove tramp iron and reduce downtime

6. Thin oil lubrication station is outfitted with air-conditioning cooling system for better cooling performance

Model	Diameter of the moving cone(mm)	Max feed size(mm)	Adjusting range of discharging hole(mm)	Production capacity(t/h)	Motor power(kw)	Weight(t)	Overall Dimension(mm)
PYB-900	900	115	15~50	50~110	55	10.8	2692X1640X2350
PYZ-900	900	60	5~20	20~65	55	10.8	2692X1640X2350
PYD-900	900	40	3~13	15~50	55	10.9	2692X1640X2350
PYB-1200	1200	145	20~50	110~200	110	25	2790X1878X2844
PYZ-1200	1200	100	8~26	50~150	110	25	2790X1878X2844
PYD-1200	1200	50	3~15	18~105	110	25.7	2790X1878X2844
PYB-1750	1750	215	25~60	280~510	155~160	50.3	3910X2894X3809
PYZ-1750	1750	185	10~30	115~320	155~160	50.5	3910X2894X3809
PYD-1750	1750	85	5~15	75~230	155~160	50.5	3910X2894X3809
PYB-2200	2200	300	30~60	590~1000	260~280	84	4622X3302X4470
PYZ-2200	2200	235	10~30	200~580	260~280	85	4622X3302X4470
PYD-2200	2200	110	5~16	120~370	260~280	85	4622X3302X4470

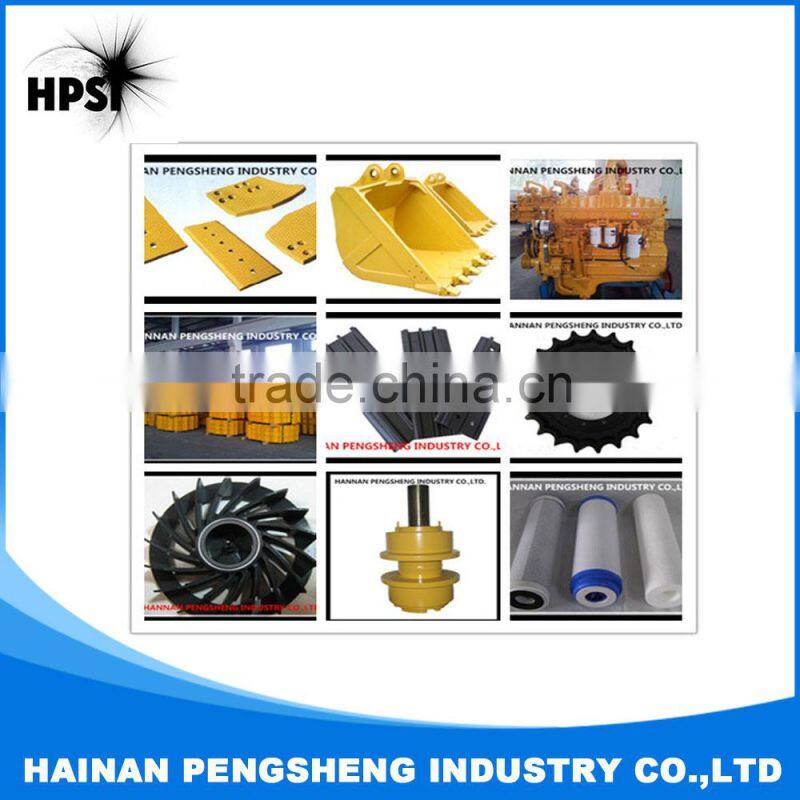

More producte we can supply......

Excavator models:PC30,PC40,PC45,PC60,PC75,PC100,PC200,PC220,PC300,PC350,PC400

Excavator models:SE60, SE70, SE80, SE130 ,SE210, SE220, SE230, SE240

Bulldozer models:D20,D21,D30,D37,D40,D50,D60,D65,D80,D85,D135,D155,D355,

D375

Bulldozer models: SD13,SD16,SD16L,SD22,SD22L,SD32,SD42

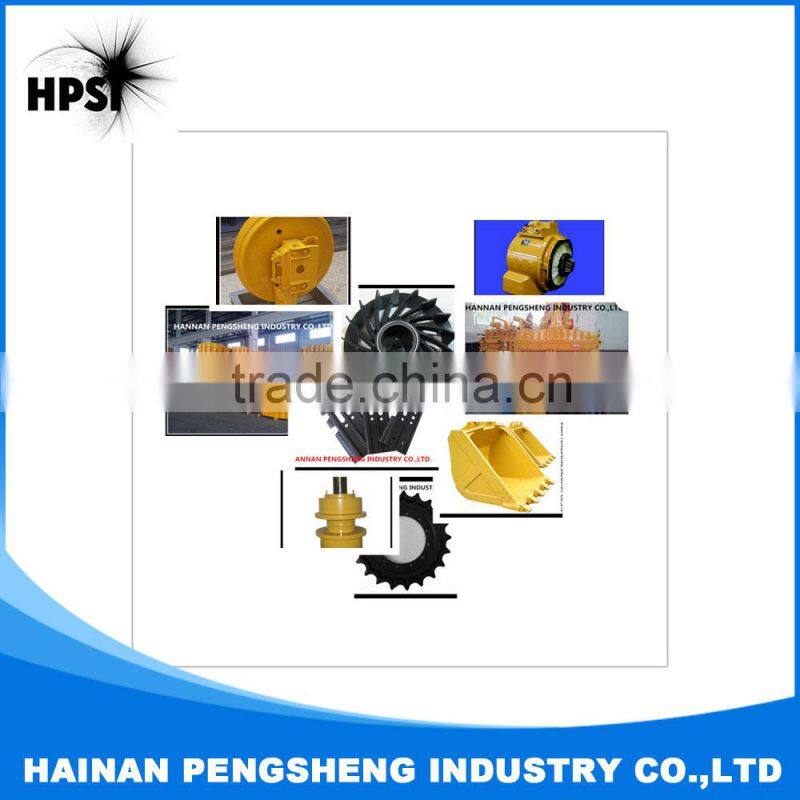

1) Swing circle and related parts,swing gear, swing circle, swing machinery , moter ass'y, ring, valve, carrier …

2) Engine spare parts,cylinder head, cylinder block, turbocharger, piston, piston ring, metal, crankshaft, oil pump, fuel injection pump, water pump, alternator, starting motor…

3) Hydraulic spare parts, main valve, main pump, solenoid valve, boom/arm/bucket cylinder, final drive, travel motor, swing machinery, swing Motor…

4) Operator’s Cab spare parts, cab ass’y, monitor, controller, engine controller, wiring harness, seat, air conditioner, air compressor…

5) Work equipment,boom,boom cylinder,arm cylinder,arm,bucket cylinder,bucket,link,tooth,adapter,cutter.

6) Quick-wear part,pin, bushing,filter, belt, bucket lip…

7) Electrical system,battery ,alternator,light,cable, relay, monitor,accelerator motor ass’y,starting motor,air conditioner,controller.

8) Cooling system, radiator core ass’y, oil cooler ass’y, after cooler ass’y, condenser ass’y, air cooler ass’y.

9) Undercarriage spare parts, track shoe, track link, bolt, track roller, carrier roller, sprocket, front Idler, idler cushion…

10) Fuel tank and related parts,strainer, sensor, fuel tank, water radiator,…
