SD-601 WIRED HEAT DETECTOR 2 WIRES or 4 WIRES OPTIONAL
PRODUCT FEATURE
1,SMT ADOPTED, HIGH STABILITY
2,LOW STANDBY CURRENT
3,ANTI-RFI&ANTI-EMI
4,9~35VDC WIDE VOLTAGE
5,DUEL LED FOR 360 VISUAL
6,FLASHING LED POWER INDICATOR
TECHNICAL SPECIFICATION
PRODUCT CATEGORY |
2WIRES |
4WIRES |
OPERATING VOLTAGE |
DC:9V~35V(Orders:DC40~60V) |
|
STANDBY CURRENT |
≤55uA |
|
ALARM CURRENT |
≤55mA@DC24V |
≤25mA@DC24V |
ALARM INDICATION |
RED LED ON |
|
RESET |
POWER OFF OR AUTO RESET |
|
OPERATING TEMPERATURE |
-10℃ +50℃ |
|
OPERATING HUMIDITY |
≤95 RH |
|
ALARM OUTPUT |
REMOT LED |
RELAY OUTPUT |
CONTACT RATING |
N/A |
0.5A@DC28V |
SENSITIVITY |
0.5dB/m(±0.1dB/m) |
|
STANDARD |
EN54-7 UL268 |
|
DIMENSION |
103 mm dia.*47mm deep |
|

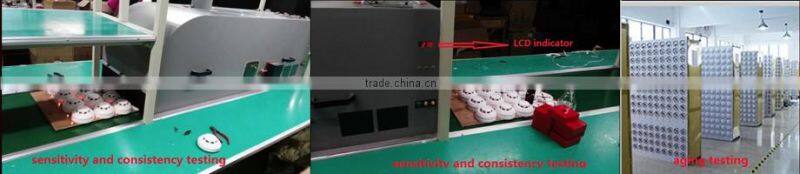

PRODUCTION PROCESS CONTROL
CARTON SIZE CM
36.5X34.5X35.5
We can be your best supplies with wide range of security products, also for OEM, ODM service!
Established in 2002,NingBo Tolion Technology Limited is is a professional manufacturing and trading company in the research, manufacturing, marketing of home alarm system, fire alarm products, DIY alarm products and others.
Researching and Developing is a key important factor for a company to progress. That is why we invest 10% of what we earned every year in R&D Department. Meanwhile, TOLION TECHNOLOGY has kept in close cooperation with home and abroad partners, and update latest technology. We stick to the production policy "Quality first to create excellence", have strong production, Process and quality management teams. We are in strict accordance with the ISO9001-2000 quality system requirements, organize production and management, ensure that each manufactured products meet quality standards.
NINGBO TOLION TECHNOLOGY LIMITED
Add: 3F, NTM Building 181#,Huizhan Road, Ningbo, China
Tel : 0086 574 88167275 FAX: 0086 574 88167275
cotact mail: info at
Website :
