Specifications

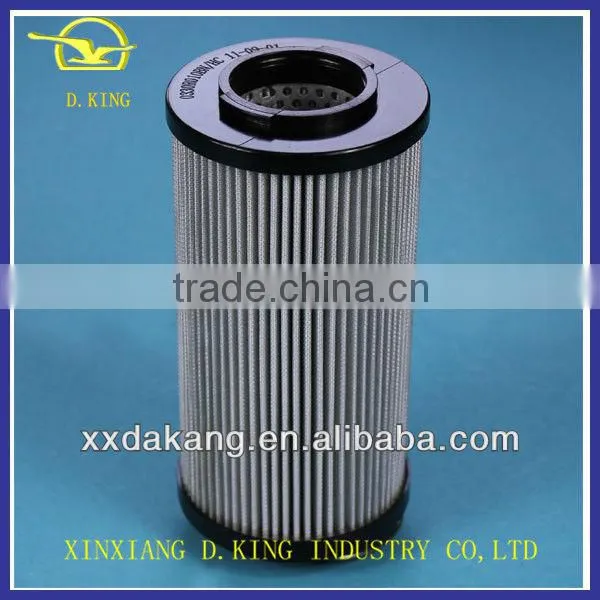

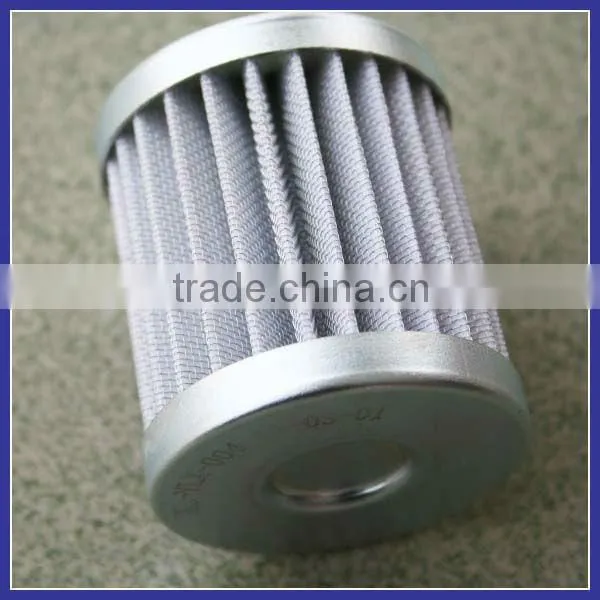

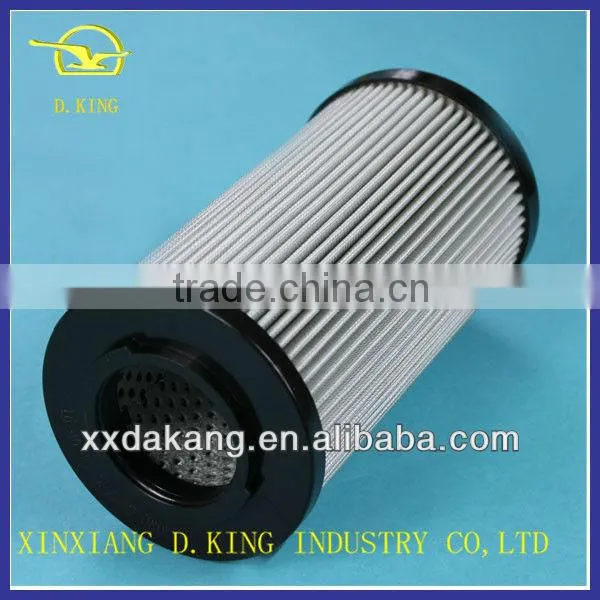

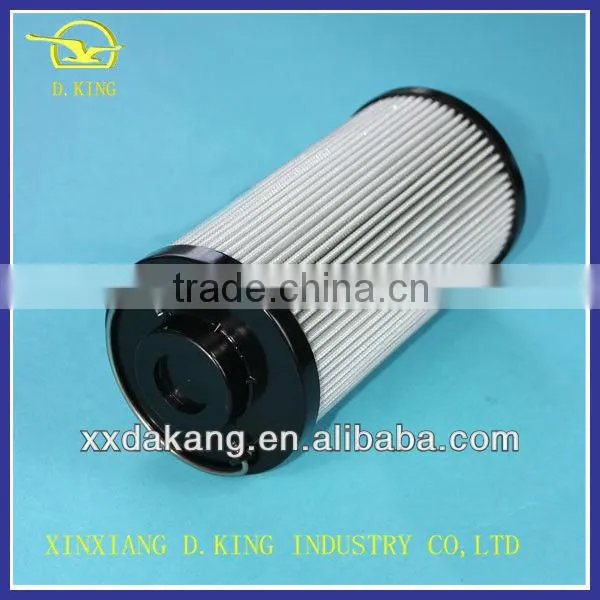

low price filter1. Reasonable price.
2. Quality Guarantee: 1 year ISO9001:2000.
3. On-time delivery and
material:stainless steel or copper wire mesh
- working medium:filtering solid particle and colloidal material
- application:Oil suction filter element used to suck oil filter,It install in the tank , and must install under the liquid level tank
- It is widely use pure water manufacture pretreatment , live drinking water , circulating cooling water , laboratory water , boiler water , oilfield flooding and food drink , chemical , make wine , pharmacy , electroplate , printing , paint , petroleum , electronic etc industry .
- structure:
- Top and bottom caps material : aluminum , stainless steel
- inner tube material: galvanized sheet , stainless steel tube
- filter medium material :stainless steel mesh and filter paper
Model:
Model |
DN (mm) |
Nominal flow rate (L/min) |
Filter precision (um) |
Reset pressure loss (MPa) |
Mating assembly model |
LX-40 |
20 |
40 |
80 100 180
|
No more than 0.01 |
ISV20-40 |
LX-63 |
25 |
63 |
ISV25-63 |
||
LX-100 |
32 |
100 |
ISV32-100 |
||
LX-160 |
40 |
160 |
ISV40-160 |
||
LX-250 |
50 |
250 |
ISV50-250 |
||
LX-400 |
65 |
400 |
ISV65-400 |
||
LX-630 |
80 |
630 |
ISV80-630 |
||
LX-800 |
90 |
800 |
ISV90-800 |
||
LX-1000 |
100 |
1000 |
ISV100-1000 |
Model |
DN(mm) |
Nominal flow rate(L/min) |
Filter precision(um) |
Reset pressure loss(MPa) |
Mating assembly mode |
TFX-25 |
15 |
25 |
80 100 180
|
No more than 0.01 |
TF-25 -L |
TFX-40 |
20 |
40 |
TF-40 –L |
||
TFX-63 |
25 |
63 |
TF-63 -L |
||
TFX-100 |
32 |
100 |
TF-100 –L |
||
TFX-160 |
40 |
160 |
TF-160 –L |
||
TFX-250 |
50 |
250 |
TF-250 –L |
||
TFX-400 |
65 |
400 |
TF-400 –L |
||
TFX-630 |
90 |
630 |
TF-630 –L |
||
TFX-800 |
90 |
800 |
TF-800 –L |
||
TFX-1000 |
90 |
1000 |
TF-1000 –L |
Model |
DN(mm) |
Nominal flow rate(L/min) |
Filter precision(um) |
Nominal pressure loss(MPa) |
Mating assembly model |
UX-25 |
15 |
25 |
80 100 180 |
No more than 0.007 |
NJU-25 –J |
UX-40 |
20 |
40 |
NJU-40 –J |
||
UX-63 |
25 |
63 |
NJU-63 –J |
||
UX-100 |
32 |
100 |
NJU-100 –J |
||
UX-160 |
40 |
160 |
NJU-160 –J |
||
UX-250 |
50 |
250 |
No more than 0.01 |
NJU-250 –J |
|
UX-400 |
65 |
400 |
NJU-400 –J |
||
UX-630 |
80 |
630 |
NJU-630 –J |
||
UX-800 |
90 |
800 |
NJU-800 -J |
Model |
DN(mm) |
Nominal flow rate(L/min) |
Reset pressure loss(MPa) |
Filter precision(um) |
Bypass-valve Opening pressure(MPa) |
Connection type |
WU16—J |
12 |
16 |
No more than 0.01 |
80 100 180 |
|
Tuhular |
WU-25—J |
15 |
25 |
0.02 |
|||
WU-40—J |
20 |
40 |
||||
WU-63—J |
25 |
63 |
||||
WU-100—J |
32 |
100 |
||||
WU-160—J |
40 |
160 |
||||
WU-225G—J |
50 |
225 |
||||
WU-250F—J |
50 |
250 |
Flange type |
|||
WU-400F—J |
65 |
400 |
||||
WU-630F—J |
80 |
630 |
||||
WU-800G—J |
63 |
800 |
Tubular |
|||
WU-1000G—J |
76 |
1000 |
