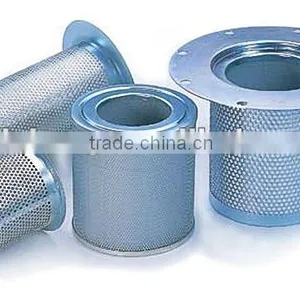

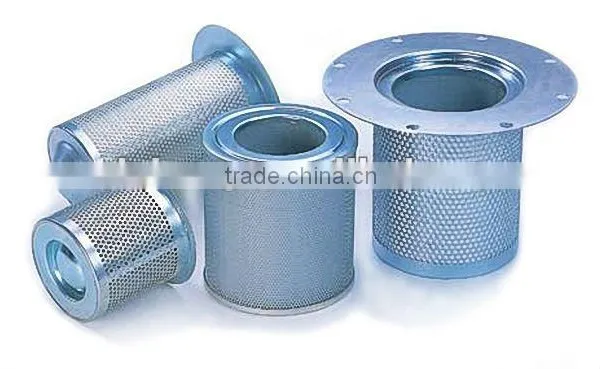

SS material all size oil air separator filter element
- qingdao and other China's port
- T/T
You May Like
-
hepa air oil separate filter cartridge element
-
industrial compressed air oil separate filter cartridge
-
air separation purification of dusthepa hepa filter
-
kapok fiber and polyester air separation;,purification of dust hydraulic oil filter
-
good permeability; high reliability kapok fiber and polyester oil separator air filter
-
good permeability Air Oil Separator Element
Product Details
| Type | Suction Filter | Structure | Cartridge | |
| Place of Origin | Henan, China | Brand Name | DK | |
| Model Number | YQLX series |
Product Description
Introductions:
As air oil separator filter in rotary air compressor and vacuum pump, due to the compressed air separation, condenses oil vapor. YQLX series filter adopts high superfine fiber agglomerate anti-corrosion materials as filtration, advance by filter layer, superfine fiber layer, support layer and layer and layer, etc, to ensure settlement of large oil can be separated directly, tiny oil gas dissolved in through the filter was disintegrated into the oil droplets greatly condenses and exclusion. With high efficiency filtration separation (after no more than oil gas 3mg/m3), the initial pressure
Model | flowing(m3/min) | Residual oil(mg/m3) | initial pressure differential(MPa) | Working pressure(MPa) | Working temperature(°C) | Size (mm) | MANN Corresponding model | |||
D | D1 | D2 | L | |||||||
YQLX I-2 | 2 | 3 | 0.02 | 0.7 | 120 | φ170 | φ88 | φ135 | 200 | 49 000 50 531 |
YQLX I-3.5 | 3.5 | φ170 | φ88 | φ135 | 305 | 49 000 50 411 | ||||
YQLX I-3.5 | 3.5 | φ200 | φ123 | φ170 | 230 | 49 000 50 201 | ||||
YQLX I-4.5 | 4.5 | φ200 | φ123 | φ170 | 305 | 49 000 50 121 | ||||
YQLX I-6.5 | 6.5 | φ200 | φ123 | φ170 | 435 | 49 000 50 111 | ||||
YQLX I-8 | 8 | φ328 | φ220 | φ272 | 305 | 49 000 50 101 | ||||
YQLX I-9 | 9 | φ274 | φ165 | φ220 | 435 | 49 000 50 171 | ||||
YQLX I-12 | 12 | φ328 | φ220 | φ275 | 450 | 49 000 50 321 | ||||
YQLX I-12 | 12 | φ274 | φ165 | φ220 | 600 | 49 000 50 131 | ||||
YQLX I-14 | 14 | φ355 | φ245 | φ300 | 500 | 49 000 50 191 | ||||
YQLX I-17 | 17 | φ355 | φ245 | φ300 | 600 | 49 000 50 181 | ||||
YQLX I-19 | 19 | φ355 | φ245 | φ300 | 660 | 49 000 50 221 | ||||
YQLX I-20 | 20 | φ324 | φ220 | φ275 | 750 | 49 000 50 521 | ||||
YQLX I-24 | 24 | φ355 | φ245 | φ300 | 820 | 49 000 50 481 | ||||
YQLX I-29 | 29 | φ355 | φ245 | φ300 | 1000 | 49 000 50 541 | ||||
YQLX I-42 | 42 | φ570 | φ400 | φ475 | 900 | 49 000 50 581 | ||||
