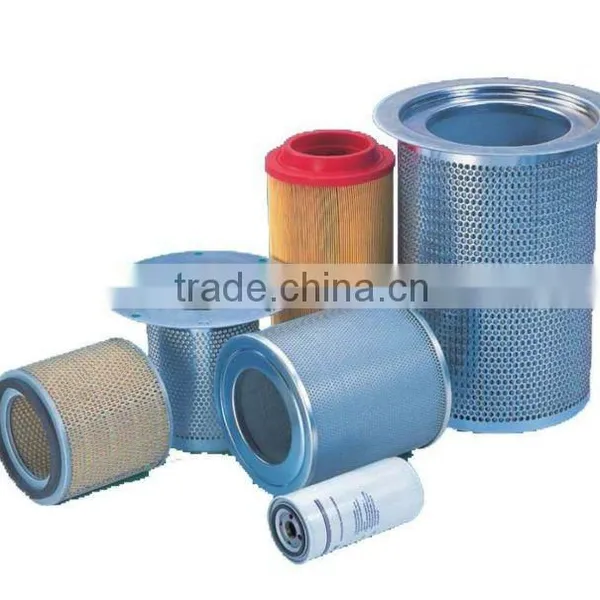

Help CenterHigh Efficiency Oil Air Filtration Seperator
Related Products
-
High Efficiency Air Oil Separator Filter ElementUS$ 8 - 90MOQ: 100 Pieces -
High Air Oil Separator Filter ElementUS$ 8 - 90MOQ: 100 Pieces
-
Big Flow Capacity MANN Brand Oil SeparatorUS$ 5 - 100MOQ: 50 Pieces
-
High Temperature YQLX-I Series Oil and Gas Filter SeperatorUS$ 1.08 - 26.86MOQ: 100 Pieces
-
Air Compressor Separator Element for Industry UseUS$ 1 - 50MOQ: 10 Pieces
Specifications
air filtration1 with high efficiency filtration separation
2.the initial pressure.
3.ss material
4.ISO9001-2008
Introductions:
As oil and gas separation filter in rotary air compressor and vacuum pump, due to the compressed air separation, condenses oil vapor. YQLX series filter adopts high superfine fiber agglomerate anti-corrosion materials as filtration, advance by filter layer, superfine fiber layer, support layer and layer and layer, etc, to ensure settlement of large oil can be separated directly, tiny oil gas dissolved in through the filter was disintegrated into the oil droplets greatly condenses and exclusion. With high efficiency filtration separation (after no more than oil gas 3mg/m3), the initial pressure.
Details:
Model |
flowing(m3/min) |
Residual oil(mg/m3) |
initial pressure differential(MPa) |
Working pressure(MPa) |
Working temperature(°C) |
Size (mm) |
MANN Corresponding model |
|||
D |
D1 |
D2 |
L |
|||||||
YQLX I-2 |
2 |
3 |
0.02 |
0.7 |
120 |
φ170 |
φ88 |
φ135 |
200 |
49 000 50 531 |
YQLX I-3.5 |
3.5 |
φ170 |
φ88 |
φ135 |
305 |
49 000 50 411 |
||||
YQLX I-3.5 |
3.5 |
φ200 |
φ123 |
φ170 |
230 |
49 000 50 201 |
||||
YQLX I-4.5 |
4.5 |
φ200 |
φ123 |
φ170 |
305 |
49 000 50 121 |
||||
YQLX I-6.5 |
6.5 |
φ200 |
φ123 |
φ170 |
435 |
49 000 50 111 |
||||
YQLX I-8 |
8 |
φ328 |
φ220 |
φ272 |
305 |
49 000 50 101 |
||||
YQLX I-9 |
9 |
φ274 |
φ165 |
φ220 |
435 |
49 000 50 171 |
||||
YQLX I-12 |
12 |
φ328 |
φ220 |
φ275 |
450 |
49 000 50 321 |
||||
YQLX I-12 |
12 |
φ274 |
φ165 |
φ220 |
600 |
49 000 50 131 |
||||
YQLX I-14 |
14 |
φ355 |
φ245 |
φ300 |
500 |
49 000 50 191 |
||||
YQLX I-17 |
17 |
φ355 |
φ245 |
φ300 |
600 |
49 000 50 181 |
||||
YQLX I-19 |
19 |
φ355 |
φ245 |
φ300 |
660 |
49 000 50 221 |
||||
YQLX I-20 |
20 |
φ324 |
φ220 |
φ275 |
750 |
49 000 50 521 |
||||
YQLX I-24 |
24 |
φ355 |
φ245 |
φ300 |
820 |
49 000 50 481 |
||||
YQLX I-29 |
29 |
φ355 |
φ245 |
φ300 |
1000 |
49 000 50 541 |
||||
YQLX I-42 |
42 |
φ570 |
φ400 |
φ475 |
900 |
49 000 50 581 |
||||
Model |
Flowing (m3/min) |
Residual oil(mg/m3) |
Initial pressure differential |
Working Pressure (MPa) |
Working Temperature(°C) |
Size (mm) |
MANN corresponding model |
|||
D |
D1 |
D2 |
L |
|||||||
YQLXII-3.5 |
3.5 |
3 |
0.02 |
0.7 |
120 |
φ220 |
φ75 |
φ135 |
160 |
49 301 52 121 |
YQLXII-4.5 |
4.5 |
φ170 |
φ75 |
φ135 |
200 |
49 301 52 131 |
||||
YQLXII-6.5 |
6.5 |
φ200 |
φ109 |
φ170 |
230 |
49 301 52 101 |
||||
YQLXII-9 |
9 |
φ200 |
φ109 |
φ170 |
305 |
49 302 52 131 |
||||
YQLXII-16 |
16 |
φ355 |
φ220 |
φ300 |
305 |
49 303 52 121 |
||||
YQLXII-20 |
20 |
φ328 |
φ209 |
φ275 |
400 |
49 303 52 111 |
||||
YQLXII-22 |
22 |
|
|
|
|
φ355 |
φ220 |
φ300 |
400 |
49 304 50 101 |
YQLXII-28 |
28 |
φ355 |
φ220 |
φ300 |
500 |
49 305 52 111 |
||||
YQLXII-33.5 |
33.5 |
φ335 |
φ220 |
φ300 |
600 |
49 305 52 101 |
||||
YQLXII-39 |
39 |
φ355 |
φ220 |
φ300 |
700 |
49 305 52 102 |
||||
Model |
Flowing (m3/min) |
Initial pressure diffierential |
Working pressure(MPa) |
Working temperature(°C) |
Size (mm) |
MANN corresponding model |
||
D |
D1 |
L |
||||||
YQLXIII-0.1 |
0.1 |
3 |
0.02 |
120 |
φ30 |
φ10 |
60 |
49 000 52 108 |
YQLXIII-0.25 |
0.25 |
φ55 |
φ25.5 |
75 |
49 000 52 351 |
|||
YQLXIII-0.4 |
0.4 |
φ72 |
φ32.2 |
80 |
49 000 52 352 |
|||
YQLXIII-0.7 |
0.7 |
φ80 |
φ45.2 |
125 |
49 000 52 353 |
|||
YQLXIII-0.9 |
0.9 |
φ80 |
φ45 |
145 |
49 000 50 611 |
|||
YQLXIII-1.4 |
1.4 |
φ70 |
φ40 |
250 |
49 000 52 107 |
|||
YQLXIII-1.8 |
1.8 |
φ70 |
φ40 |
330 |
49 001 52 112 |
|||
