1.6-10Mpa Y 3 Strainers
- qingdao shanghai tianjin
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | D.KING | |
| Model Number | FTR | After-sales Service Provided | Overseas service center available |
Product Description

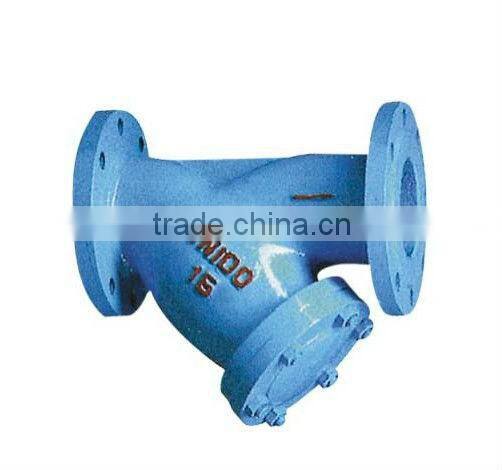

y 3 strainers
Material:stainless steel, carbon steel
property:Housing material : carbon steel , stainless steel
Nominal diameter : DN15-DN600 mm
Filter screen material : stainless steel
Sealing material : NBR , pllytef (according to working medium )
Working temperature : no more than 90 centigrade
Connection type : flange
Normal pressure : 1.6-10MPa
Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

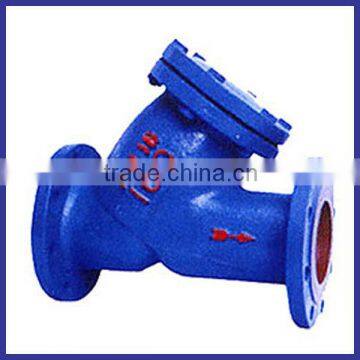

y 3 strainers
Introduction:Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end .
effect:Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .

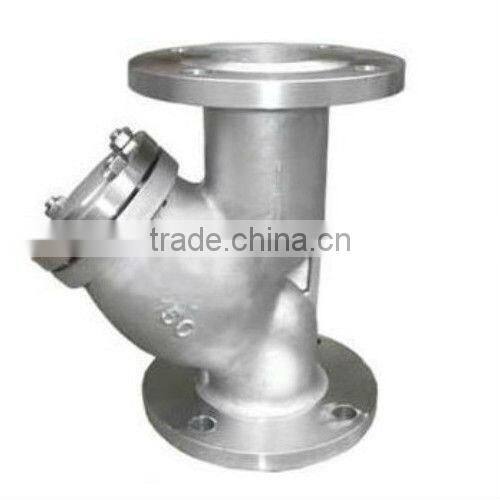

y 3 strainers

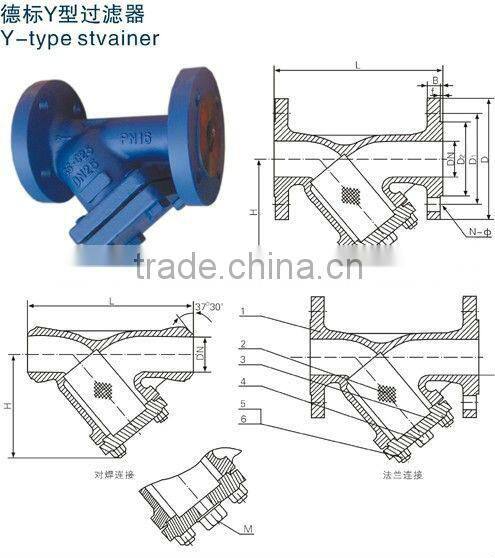

Model and size
Model | Size (mm) | Valid filter area m2 | ||||
DN | In | L | H | H1 | ||
FIR-15×* | 15 | 1/2 | 125 | 70 | 150 | 0.00185 |
FIR-20×* | 20 | 3/4 | 145 | 70 | 150 | 0.00281 |
FIR-25×* | 25 | 1 | 160 | 80 | 160 | 0.00343 |
FIR-32×* | 32 | 1 1/4 | 180 | 90 | 180 | 0.00486 |
FIR-40×* | 40 | 1 1/2 | 200 | 100 | 240 | 0.00767 |
FIR-50×* | 50 | 2 | 220 | 130 | 250 | 0.01161 |
FIR-65×* | 65 | 2 1/2 | 260 | 165 | 350 | 0.02111 |
FIR-80×* | 80 | 3 | 280 | 195 | 390 | 0.03029 |
FIR-100×* | 100 | 4 | 320 | 230 | 450 | 0.04063 |
FIR-125×* | 125 | 5 | 320 | 230 | 490 | 0.05523 |
FIR-150×* | 150 | 6 | 380 | 335 | 580 | 0.07709 |
FIR-200×* | 200 | 8 | 495 | 420 | 690 | 0.11967 |
FIR-250×* | 250 | 10 | 595 | 500 | 800 | 0.19155 |
FIR-300×* | 300 | 12 | 640 | 580 | 950 | 0.26738 |
FIR-350×* | 350 | 14 | 750 | 650 | 1100 | 0.30926 |
FIR-400×* | 400 | 16 | 800 | 700 | 1360 | 0.40946 |
...
