Supply Carbon Steel Dn50 Basket Strainer Housing
US$ 50 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Press Filter
Structure:
Other, Cartridge, basket type
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supply Carbon Steel Big Flow Basket StrainerUS$ 50 - 1,000MOQ: 1 Piece -
Supply Carbon Steel Basket Water Filter HousingUS$ 50 - 1,000MOQ: 1 Piece
-
Supply ss Dn50 Basket Strainer HousingUS$ 50 - 1,000MOQ: 1 Piece
-
Supply ss 180 Mesh Basket Strainer HousingUS$ 50 - 1,000MOQ: 1 Piece
-
Supply Basket Strainer Oil FilterUS$ 50 - 1,000MOQ: 1 Piece
Condition
New
Type
Press Filter
Structure
Other, Cartridge, basket type
Place of Origin
Henan, China
Brand Name
D.KING
Model Number
FTR series
Power(W)
basket filter
Weight
5-20kg
Dimension(L*W*H)
256-830*149-530
Certification
ISO9001-2008
Warranty
One year
After-sales Service Provided
Overseas service center available

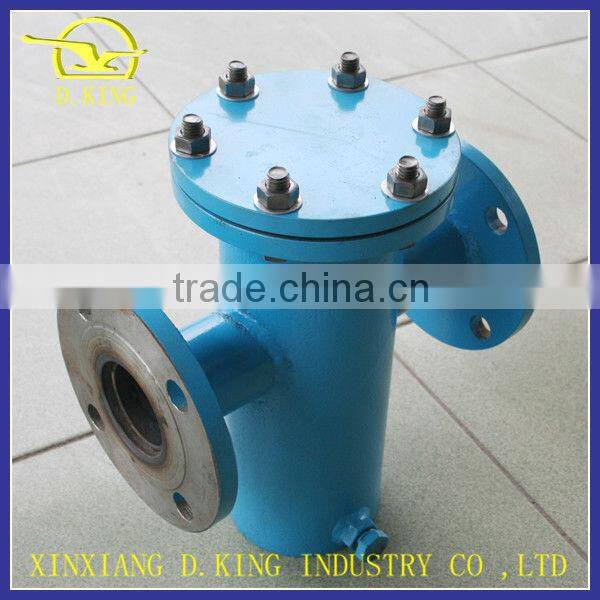

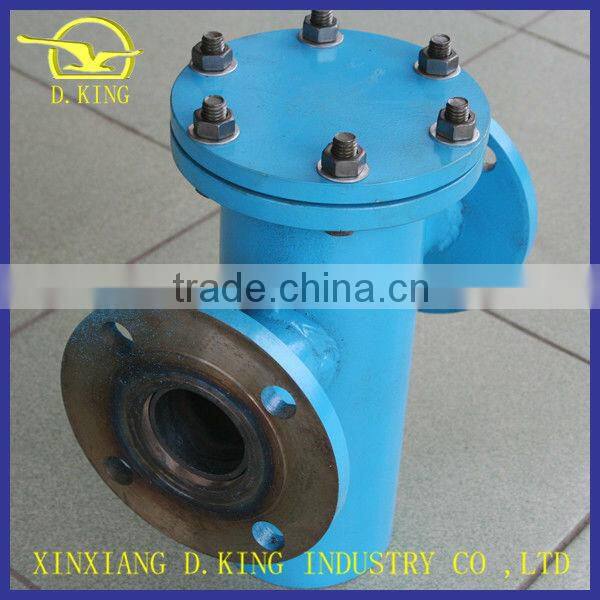

Discription---- carbon steel dn50 basket strainer housing
- Material: stainless steel, carbon filter;
- Feature: easy made, advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination;
- Effect: basket type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end. Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
- Working principle: After the liquid through the housing into the basket cartridge ,solid partricles will be blocked within the basket cartridge , and the clean fluid trough the basket cartridge outoff the filter.
Technical parameters---- carbon steel dn50 basket strainer housing
- Housing material: carbon steel, stainless steel;
- Nominal diameter: DN40-DN400 mm;
- Filter screen material: stainless steel;
- Sealing material: NBR, pllytef (according to working medium );
- Working temperature: no more than 90 centigrade;
- Connection type: flange;
- Normal pressure: 1.6MPa;
- Micron rating: 10-480 mesh (water 18-30 mesh, gas 40-100 mesh, oil 100-480 mesh).
Application---- carbon steel dn50 basket strainer housing
- Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon;
- Chemical production of corrosive materials .eg: caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid;
- Low temperature materials in the refrigeration. eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid;
- Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance.
Advantage---- carbon steel dn50 basket strainer housing
- high intensity, long service life, corrosion resistance, temperature range
- wire mesh basket filter strainer can be coated chrome or handle coated by chrome plate or e-polishing, it is bright;
- use economy, simple structure, convenient installation;
- Portable basket strainer oil filter;
- good structure,high performance;
- stainless steel;
- resistant corrosion;
- good aftersales service;
- filter basket, stainless steel filter basket,galvanized filter basket, steel filter basket,stainless filter baskets,filter bags;
- High Quality & Favorable Price.
Operate follow these steps---- carbon steel dn50 basket strainer housing
- unscrew the head at the bottom of the plug,
- the row of net fluid,
- remove the flange cover,
- to reload after cleaning.
Therefore, use convenient maintenance.
Model and size
Model |
Size (mm) |
Valid filter area (m2) |
||||||
DN |
In |
D1 |
L |
H |
H1 |
H2 |
||
FTL-25×* |
25 |
1 |
76 |
180 |
260 |
410 |
160 |
0.0162 |
FTL-40×* |
40 |
1 1/2 |
108 |
260 |
300 |
560 |
170 |
0.0315 |
FTL-50×* |
50 |
2 |
108 |
260 |
300 |
560 |
170 |
0.0315 |
FTL-65×* |
65 |
2 1/2 |
133 |
330 |
360 |
637 |
174 |
0.0461 |
FTL-80×* |
80 |
3 |
159 |
340 |
400 |
719 |
214 |
0.059 |
FTL-100×* |
100 |
4 |
219 |
400 |
470 |
881 |
272 |
0.1077 |
FTL-125×* |
125 |
5 |
273 |
480 |
550 |
1079 |
345 |
0.1759 |
FTL-150×* |
150 |
6 |
273 |
500 |
630 |
1276 |
404 |
0.291 |
FTL-200×* |
200 |
8 |
325 |
560 |
780 |
1397 |
446 |
0.4076 |
FTL-250×* |
250 |
10 |
426 |
660 |
930 |
1544 |
495 |
0.5017 |
FTL-300×* |
300 |
12 |
478 |
750 |
1200 |
1793 |
563 |
0.68 |
FTL-400×* |
400 |
16 |
529 |
920 |
1500 |
2050 |
720 |
0.8156 |
Our company
Contact me
If you are interested in this product , pls sent the following questions to us , we will calculate the
best to you with the specifications :
nnection size;
ing medium;
3.flow capacity;
ing pressure;
5.micron rating;
6.material.
...
