FTT Series T Type Strainers and Oil Filters

oil filters

Introduction : T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system .

Technical parameters 1.  Housing material : carbon steel , stainless steel ; 2.  Nominal diameter : DN40-DN400 mm ; 3.  Filter screen material : stainless steel ; 4.  Sealing material : NBR , pllytef (according to working medium ) ; 5.  Working temperature : no more than 90 centigrade ; 6.  Connection type : flange ; 7.  Normal pressure : 1.6MPa ; 8.  Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh) ;

86-0373-3391116

XIAOZHUZHUANG INDUSTRIAL ZONE ,HEPING ROAD NORTH,XINXIANG CITY HENAN CHINA

oil filters

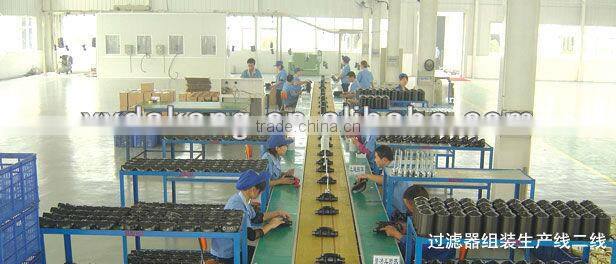

    Xinxiang D. King industry Co., LTD, formerly of aviation industry 2 groups subordinate enterprise achieving economic entity, was founded in 1987, filters, filter professional manufacturers. Set product development, design, production and experiment, through ISO9001:2000 international quality management system certification. Strong technical force, advanced processing equipment, using three-dimensional auxiliary design system for the product design and optimization, ensure products in the shortest time, to provide customers with the best quality products.

   Our company mainly produces various series of filters and filter element , while engaged in import and export work. The localization of filter Product covers petrochemical, chemical, electric power, metallurgy, textile, environmental protection, machinery, such as water, life, oil, melt, coating, pulp, paint filtration purification industries.

   Quality first, customers, is our aim. We are willing to cooperate with domestic and overseas clients, to provide you with the best quality products and the best service!

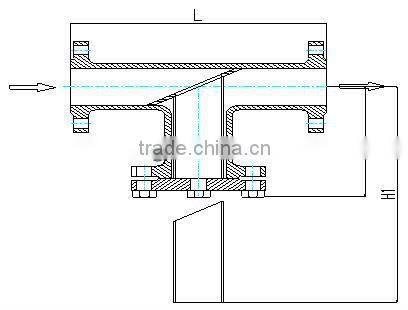

Model

Size(mm )

Valid filter area m2

DN

In

L

H

H1

FTT-40*

40

1 1/2

256

149

306

0.0029

FTT-50*

50

2

256

149

306

0.0039

FTT-65*

65

2 1/2

292

170

348

0.0053

FTT-80*

80

3

312

182

384

0.0079

FTT-100*

100

4

362

210

473

0.0133

FTT-125*

125

5

420

235

529

0.0204

FTT-150*

150

6

460

260

581

0.0273

FTT-200*

200

8

560

320

694

0.0462

FTT-250*

250

10

670

380

821

0.0699

FTT-300*

300

12

780

430

949

0.1001

FTT-350*

350

16

830

450

1023

0.1205

FTT-400*

400

20

910

530

1166

0.1585
