Home > Industrial Equipment & Components > Filtration Equipment & Parts > Oil Filter > Famous Brand Import Material Hydac Hydraulic Filter

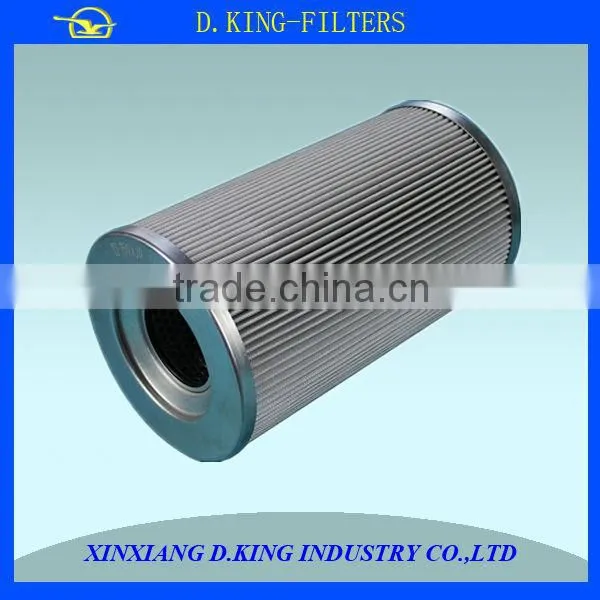

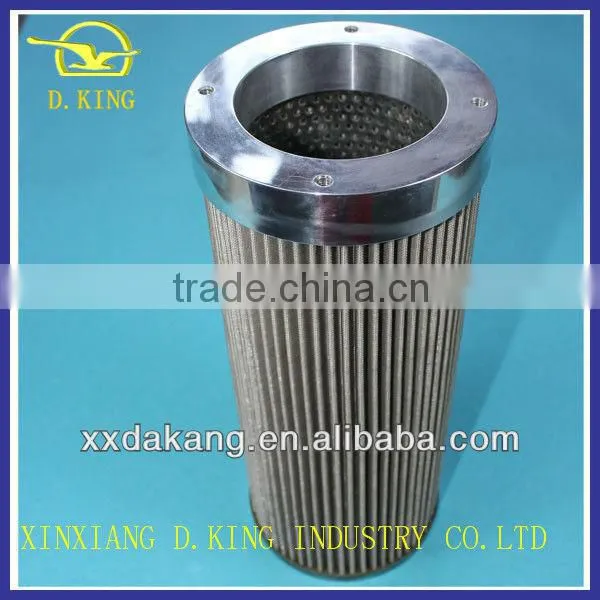

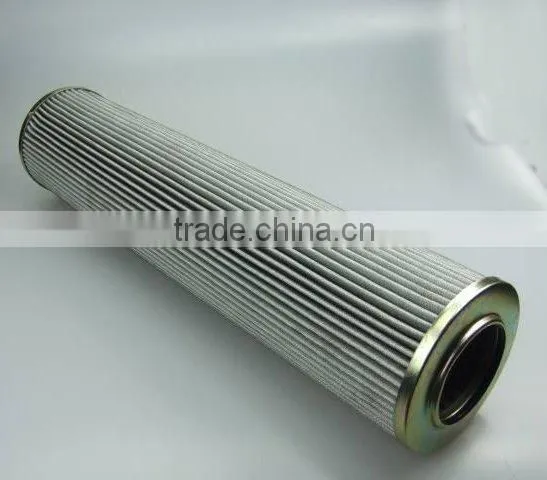

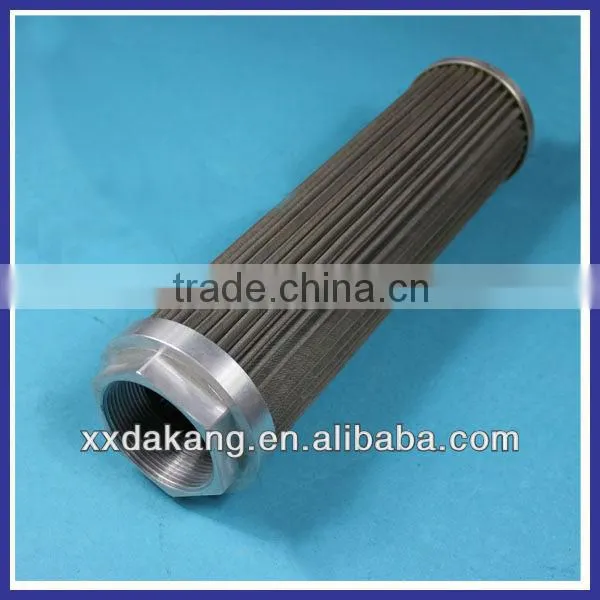

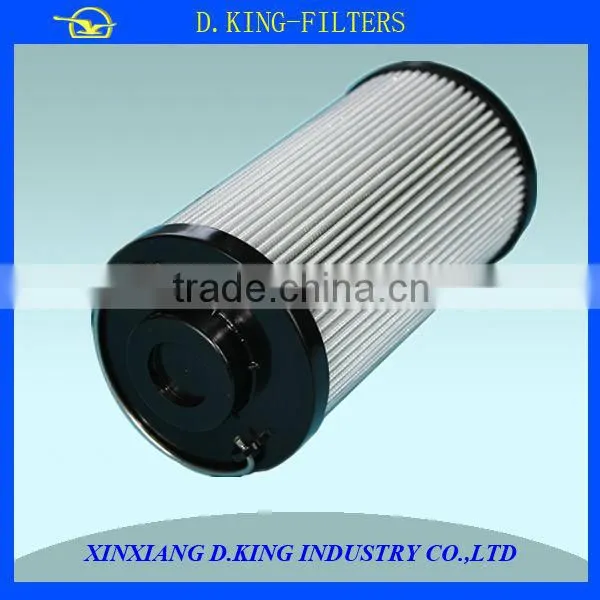

Famous Brand Import Material Hydac Hydraulic Filter

Name: Famous Brand Import Material Hydac Hydraulic Filter
Brand: D.KING HYDAC
SKU: 117784207

US$ 1 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Return Filter, Pleated Cartridge Filter

Structure:

Cartridge

Contact Supplier Request Quote Chat Now

Xinxiang D.king Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Return Filter, Pleated Cartridge Filter

Structure Cartridge

Place of Origin Henan, China

Brand Name D.KING HYDAC

Model Number 0300D****

Power(W) HYDAC

Weight 0.2KG

Dimension(L*W*H) 140*260mm

Certification ISO9000:2008

Warranty 1year

After-sales Service Provided Overseas service center available

Industrial hydraulic return oil suction filter

Product Introduction:

Features:

1.High strength , long use life , strong resistance to corrosion

2.Big use temperature range , no material break away off

3.Big filter area , big flow , high porosity , fine permeability

4.Strong ability of accept dirt , can clean and back wash

5..Easy install , dismantle , clean , use economy

Product Specification:

1.Introduction

1.Hydraulic oil filter element used to suck oil filter , filtering solid particle and colloidal material in the working medium.
2.Effective control pollution degree in working medium.
3.It install in the tank , and must install under the liquid level tank
4.The material of filter element is stainless steel or copper wire mesh , can repeated use clean.

2.Struction

Top and bottom caps material : aluminum , stainless steel

inner tube material: galvanized sheet , stainless steel tube

filter medium, material :stainless steel mesh and filter paper

3. Applications

Scope of application: petroleum, water, air, oil field, refinery, medicine equipment, pipeline filters, railroad, astronautics, project machinery, etc

Model:

Model	DN(mm)	Nominal flow rate (L/min)	Filter precision(um)	Nominal pressure (MPa)	Pressure loss(MPa)		Mating assembly model
					Initial	Max
SFX-60	25	60	1 3 5 10 20 30	1.6	No more than 0.2	0.35	RLF-60
SFX-110		110					RLF-110
SFX-160	40	160					RLF-160
SFX-240		240					RLF-240
SFX-330	50	330					RLF-330
SFX-500		500					RLF-500
SFX-660	80	660					RLF-660
SFX-850		850					RLF-850
SFX-950	100	950					RLF-950
SFX-1300		1300					RLF-1300

Details:

	Top Caps: ABS Handle: Steel
	Pleat: Fiberglass and golavanized
	Bottom :ABS Inner: Golavanized
	Connect: Sio₂

Production Process:

Shipping & Package:

Our company:

Xinxiang D.King Industry Co., LTD was founded in 1987. It is a filter professional manufacturer.

1. With ISO9001:2008 certification
2. Accumulated abundant experience in producing filter
3. Export to more than 30 countries
4. Annual turn over up to 20,000,000US dallars
5. With professional technical team
6. OEM service is accepted

Why choose us :

1. Good quality raw materials
2. Good sewing jobs by experienced workers
3. Strict quality control implemented right from raw materials to ready-made products
4. Experienced technical and engineering team, scientific technical process
5. Competitive price
6. Excellent services from before sales then export and after-sale

Our Advantages:

1. Rigorous quality supervision system.
2. Manufacture with 27 years experience.
3. Professional design and production team.
4. With ISO9001:2008 certification.
5. OEM accepted.
6. Short delivery time.
7. Support small order.
8. Quality meeting international standard.
