Specifications
Highway Fence welded wire mesh machine1.wire diameter: 3.0-- 6.0(MM)
sh size:50*50~300*300(MM)
3.Full Auto.
4.width 2m

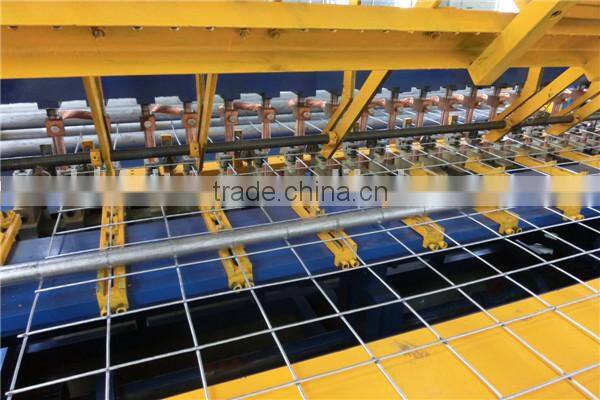

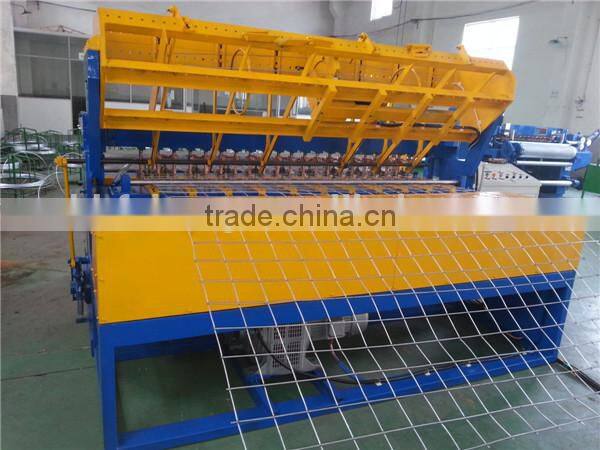

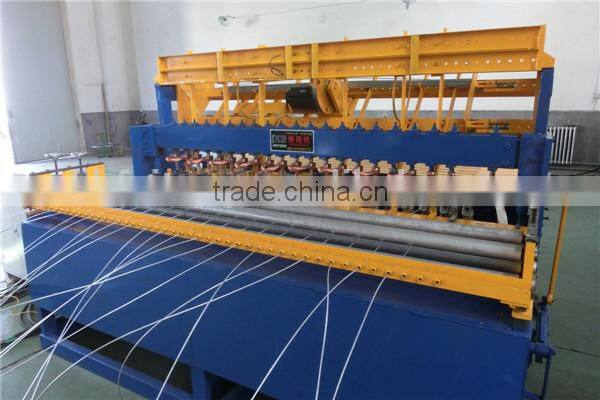

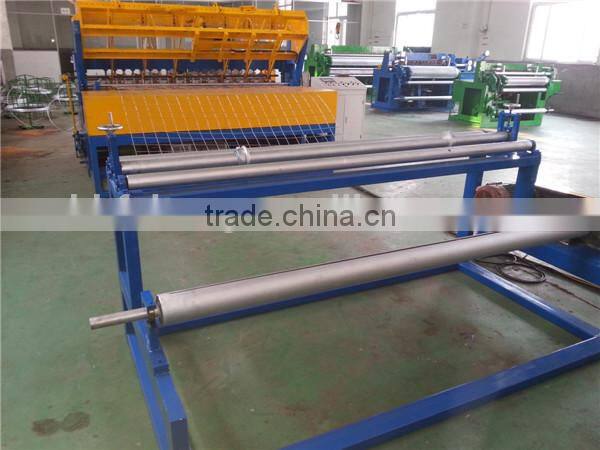

Highway Fence welded wire mesh machine
The main parameter
| Welding wire diameter: | Φ3.0MM-Φ6.0MM |
| Welding mesh size: | 50*50MM~300*300MM |
| welding width: | 2000MM |
| Seep of Welding: | 30times/min |
| Nominal voltage: | 380V/220V 3phase electric 50HZ~60HZ |
| Nominal power: | 100KVA*6 |
| Exterior size: | 6000MM*3200MM*1800MM |
| Weight of Machine: | 3200KG |
Special type can be made according to clinet's requirment.
1. Highway barrier welded wire mesh machine
adopts electrical synchronous control technique with good quality and competitive price.
2. The features of Highway barrier welded wire mesh machine

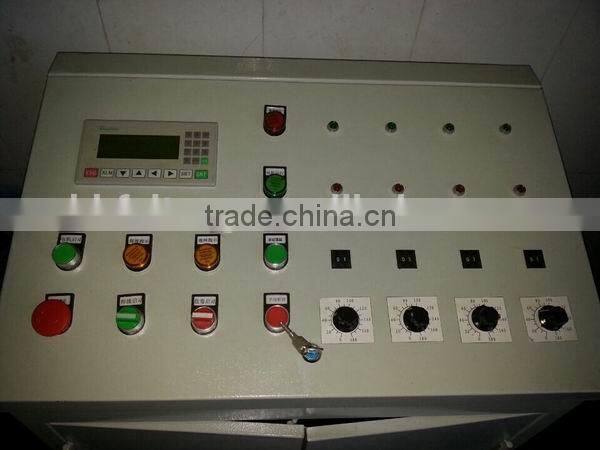

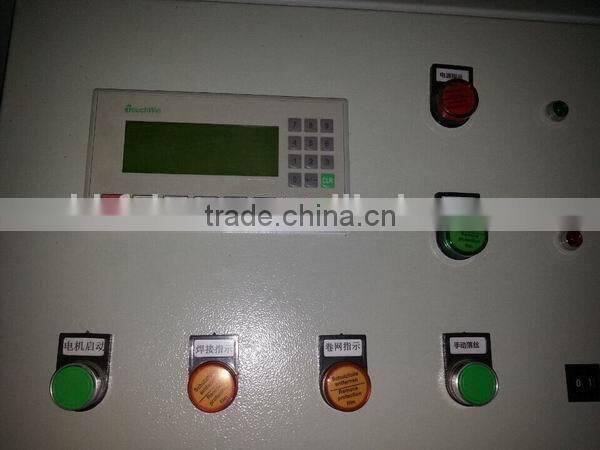

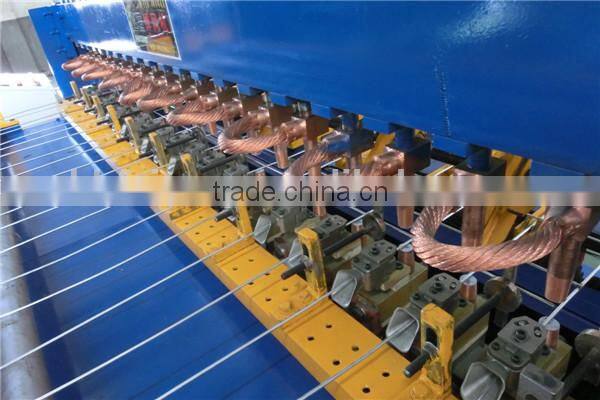

1)Indirect welding technology, welding time and sub-control welding are composed of PLC programming systerm for digital input panel or touch screen button,more intelligent operations and rationalizing.

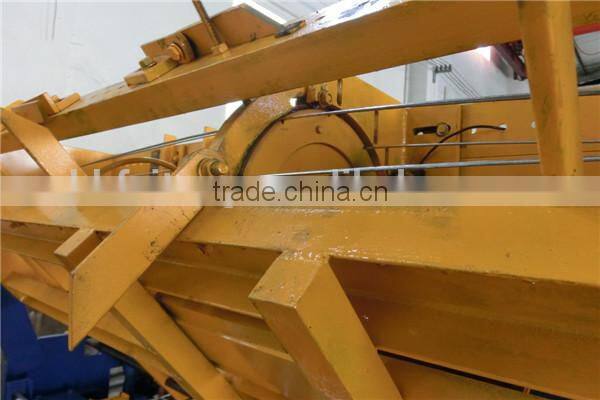

2)The weft wire supply is automatic.The wrap wire is fallen from hooper.
3)The greatest advantage is that it can be adjusted the distance of wefts at random on the same one piece of mesh sheet.
3. Application of Highway barrier welded wire mesh machine

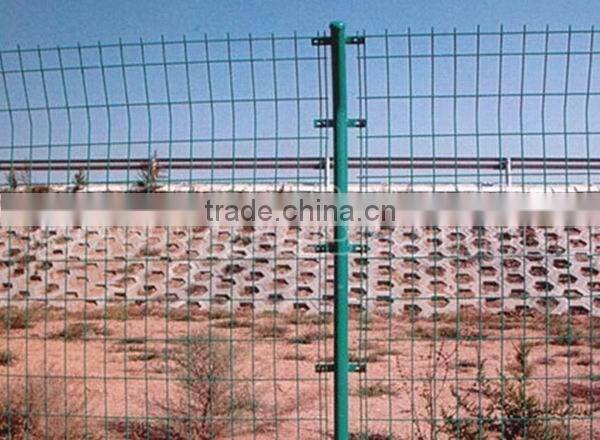

It's mainly used for freeway fence, highway guardrail, sports venues fence, the road green belt protection net and so on.
1. Warranty: One Year.
2. Enough spare parts of machines could be supplied.
3. All machines were tested and adjusted before delivery.
4. Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5. 24 hours technical support by e-mail or calling service.
Container ship,Main welding machine and auxiliary equipments in the wooden crate or nude cargo,spare parts in carton box.

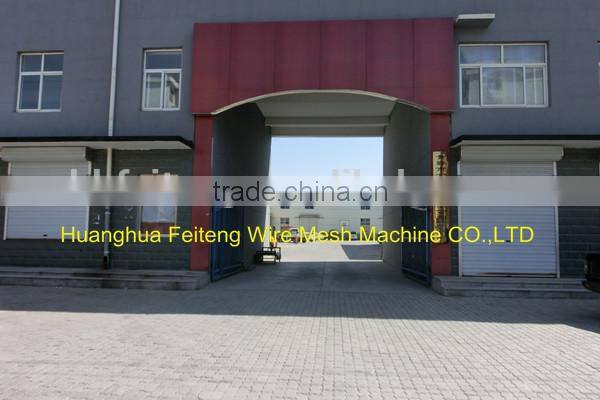

Huanghua Feiteng Wire Mesh Machine Co.,Ltd
She was established in 1997 and she is also a factory. We have been committed to the research and development of welding mesh machine.
At present, we have exported our machines to Russia,Pakistan, Ukraine ,South Africa,Peru and so on.
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
Note: Special type can be made according to client's requirement.

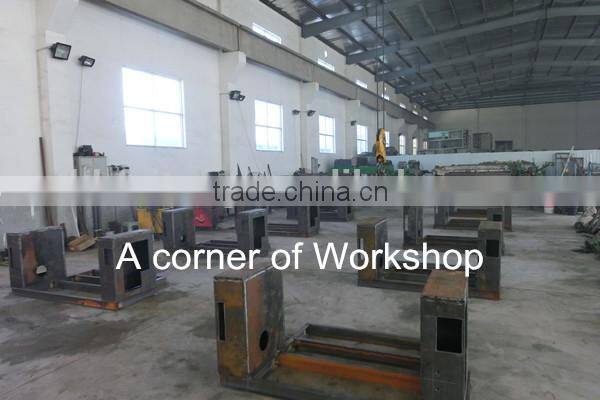

Welcome to visit our facotry !
