Specifications
PIPE FABRICATION PRODUCTION LINEFOR SPOOL PIECE SHOP FABRICATION
MAKE COMPLETE SET OF PRODUCTION LINE BY AUTOMATICALLY

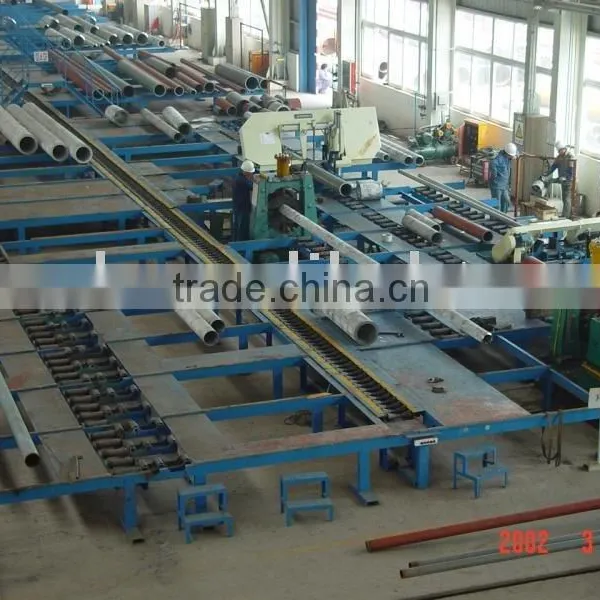

Pipe Fabrication Line (Workshop Type); Piping Prefabrication Production Line (Fixed Type)
Model: FPPPL-24A
Performance
1.Basic Configuration: One Fixed-type Highly-efficient Pipe Cutting and Beveling Machine, One Roller-bed-type Pipe Plasma Cutting and Beveling Machine, One Highly-efficient Pipe Cutting Band Saw Machine + Two Fixed-type Radial Pipe End Beveling Machine, a Certain Number of Piping Prefabrication Automatic Welding Machine or Piping cantilever Automatic Welding Machine, a Set of Logistics Transport System and a Set of Steel Structure Frame.
2.Production Efficiency:Excellent Hoisting with overhead traveling crane, Beveling with Highly-efficient Cutting and Beveling Machine and Welding with automatic welding machine
3.Equipment Movability:Not Good
4. Application Range:Often Carrying on Piping Projects or Piping prefabrication Domestic Orders in 500KM and near to Coastal Harbor, Often Carrying on Piping prefabrication Overseas Orders.
Technical Parameter:
1.Production Capacity:20-150 Thousands Diameter-Inch/ Month
2. Pipe Diameter:DN50~600φ60~610
3.Pipe Thickness:3-80MM
4.Conveying Speed:2-20M/Min
5.Beveling Speed:≤5Min / Two BevelsDN200 SCH40
6.Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PSFMS
