Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > Orbital Automatic Pipe Welding Machine(GTAW/TIG)
Orbital Automatic Pipe Welding Machine(GTAW/TIG)
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
QIANSHAN/QSPT
Model Number:
PAAWM-1HC/03C/06C/08C
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pipeline All-Position Automatic Welding MachineNegotiableMOQ: 3 Sets -
Slip on Flange Automatic Welding Machine (FCAW/GMAW)NegotiableMOQ: 1 Set
-
PIPE PREFABRICATION AUTOMATIC WELDING MACHINE (FCAW/GMAW)NegotiableMOQ: 1 Set
-
PIPING PREFABRICATION AUTOMATIC WELDING MACHINE (SAW)NegotiableMOQ: 1 Set
-
Piping All~position Automatic Welding Machine (GTAW)US$ 300,000 - 400,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
QIANSHAN/QSPT
Model Number
PAAWM-1HC/03C/06C/08C
Arc Current
4-315A
Pulse Frequency
0.5-500Hz
Rated Duty Cycle
315A 60% /250A 100%
Specifications
1.HIGH PRODUCTION CAPACITY & GOOD QUALITY; 2.IMPROVE WORK EFFICIENCY;3.REDUCE MANPOWER INPUT;4.AUTOMATION LEVEL HIGH;5.SAVE
Orbital Automatic Pipe Welding Machine(GTAW/TIG)
Spec & Model: PAAWM-1HC/03C/06C/08C
Application:
- Applicable Industry: petrochemical, Boiler, refrigeration, medical, voyage, pressure vessel, shipping, food machine, atomic power, etc.
- Scope of applicable: O.D. φ16mm~φ230mm, and pipe-pipe, pipe-elbow, pipe-flange, pipe-valve body etc carbon steel, alloy steel, stainless steel and so on materials butt welding of wire feeding or no wire feeding autolysis.
Technical Parameters
- Materials of applicable: Carbon steel, Alloy steel, Stainless Steel, Cryogenic steel etc.
- Cooling mode: water-cool
Technical Description Standard Type Diameter of pipe: Φ16-40,Φ36-90,Φ70-160,,Φ140-230 Wall thickness of pipe: 1-10mm Welding speed: 0.4-3 RPM,0.2-2 RPM,0.1-1RPM,0.07-0.5 RPM Width of oscillating: ± 8 mm Speed of oscillating: 0.5-10mm/s Wire feed speed: 0-1500mm/min Dip angle of weld gun: 0-45°
Power supply and controlling system:
- Rated input voltage: 380v
- Rated Input Capacity: 11.5KVA
- Rated input power : 9.0kw
- Permitted range of voltage fluctuation: 380v±10%
- Phases: 3 ph
- Frequency: 50/60Hz
- Duty cycle: 315A 60% ,250A 100%
- Duty-cycle adjustment range: 20%~50%
- Argon gas flow rate: 8-12L/min
- Storage Capacity: 100 groups welding criterion
- Each criterion can be the number of sections: 1~12 sect
- Cooling water pressure: 1.2kgf/ mm²
Welcome to visiting our factory or project site at any time in Shanghai City, P.R.China; For more detail information please contact us. Thank you !

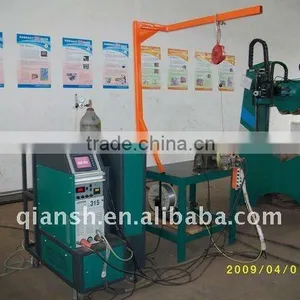

Photos:
