Specifications
Expanded hexagon hole metal mesh machine1.oil free lubrication
2.feeding stepless adjustment,
3.automatic cutting

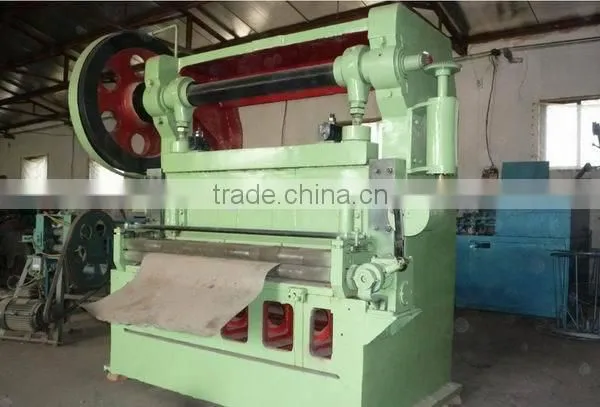

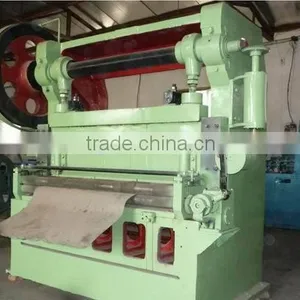

Expanded hexagon hole metal mesh machine
1. Our factory can produced many kinds of expanded metal machines which are used for the field of light industry,electrical appliances,electronics,hardware,micro batteries.It can also punch the metal mesh of stainless steel aluminium sheet sheet and so on.The application is very extensive.Some expanded metal machine adopt oil free lubrication,feeding stepless adjustment,automatic cutting and other advanced technology .
2. The machine are used for punching shear the cold crimped engine bed with the thickness of 1.2-1.5 and the width of 2000mm material strength of 450N/mm²,the specifications of punching shear are su~eyed by the bit of TB5-20 mesh grid plate.
3.The main parameter of Expanded hexagon hole metal mesh machine
| Model | Material thickness | Material max width | Times | Distance | Punching Distance | Nominal Power | Weigh | Dimension |
| FT25-6.3 | ≤1.0mm | 500mm | 180/min | 0-1.15mm | ≤20mm | 2.2KW | 0.95T | 950*570*1780mm |
| FT25-16 | ≤1.0mm | 1000mm | 150/min | 0-1.2mm | ≤25mm | 3.0KW | 2T | 1800*1320*1550mm |
| FT25-25 | ≤1.5mm | 1200mm | 150/min | 0-1.2mm | ≤30mm | 4.0KW | 3T | 1940*1600*2010mm |
| FT25-63A | ≤2.5mm | 2000mm | 70/min | 0-4.0mm | ≤100mm | 11.0KW | 10T | 2400*3500*2300mm |
| FT25-63B | ≤3.0mm | 2000mm | 45/min | 0-4.0mm | ≤200mm | 11.0KW | 10T | 2400*3500*2300mm |
| FT25-100 | ≤4.0mm | 2000mm | 60/min | 0-4.0mm | ≤150mm | 15.0KW | 12T | 3600*2500*3000mm |
| FT25-160A | ≤6.0mm | 2000mm | 20/min | 0-7.0mm | ≤200mm | 22.0KW | 18T | 5500*1750*3300mm |
| FT25-160B | ≤6.0mm | 2500mm | 20/min | 0-4.0mm | ≤200mm | 22.0KW | 20T | 5500*1750*3300mm |
Special type can be made according to clinet's requirement.
Expanded hexagon hole metal mesh machine
Huanghua Feiteng Wire Mesh Machine Co.,Ltd
Feiteng was established in 1997 .It is located in Huanghua city,Hebei Province and adjacent to capital city of Beijing,Tianjin International port.
Fei Teng covers an area of 1,500 square meters.It has more than 15 years experience for making wire mesh welding machine.
After years of hard work, our factory has become a professional manufacturer of wire mesh welding machines, such as CNC full automatic welding wire mesh machine, high speed welding wire machine, reinforcing mesh machine and so on.
We can also design the machines according to customer's requirement.
We hope to start long business relationships with you, based on "excellent quality, timely delivery, reasonable price, satisfying service" for mutual benefits.
Welcome to visit our factory!
