Numerical Control Pipe Cutting Machine-Band Saw

Numerical Control Pipe Cutting Machine-Band Saw thumbnail-1
Numerical Control Pipe Cutting Machine-Band Saw thumbnail-2
Numerical Control Pipe Cutting Machine-Band Saw thumbnail-3
Numerical Control Pipe Cutting Machine-Band Saw thumbnail-4
Numerical Control Pipe Cutting Machine-Band Saw photo-1
Numerical Control Pipe Cutting Machine-Band Saw photo-2

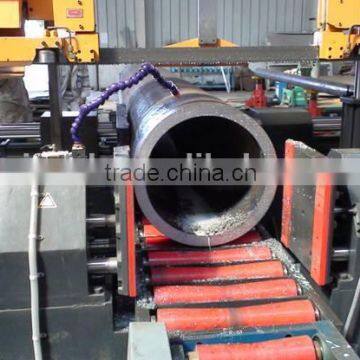

Numerical Control Pipe Cutting Machine-Band Saw photo-3

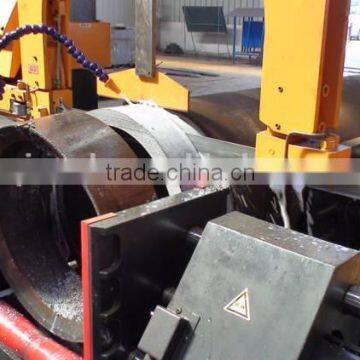

Numerical Control Pipe Cutting Machine-Band Saw photo-4
US$ 7,900 - 31,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
QSPT
Model Number:
PCBSM-24Ba;PCBSM-32Baa/PCBSM-32Aa
Contact Supplier Request Quote Chat Now
Shanghai Qianshan Piping Technology Co., Ltd. (QSPT)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China Seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name QSPT
Model Number PCBSM-24Ba;PCBSM-32Baa/PCBSM-32Aa
After-sales Service Provided Engineers available to service machinery overseas

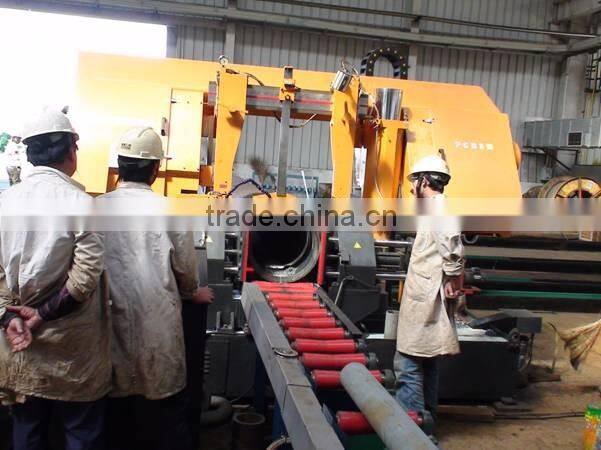

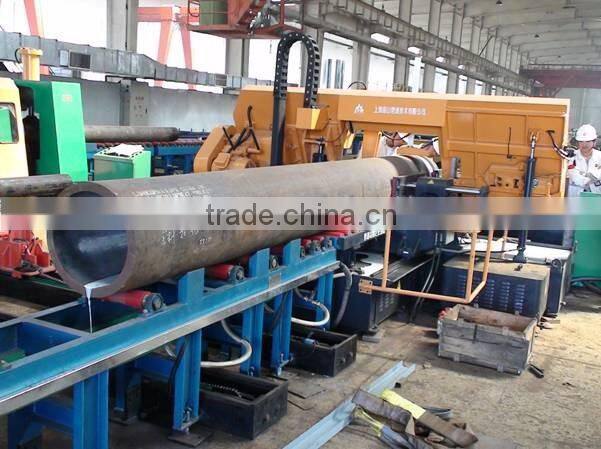

Product Show

                                          Numerical Control Pipe Cutting Band Saw Machine

                                                                               PCBSM-24Ba;PCBSM-32Ba

Product Description
Product Name
High Speed Pipe Cutting Band Saw Machine
                                                                                       Performance features
On-line Performance
On-line Performance: good (designed as per the one line equipment of the production line)
Cutting Capacity
≤2Min /pipeline bevel (DN200 SCH80);
Cutting  quality
Good
Application
for projects with a majority of heavy wall thickness & standard wall thickness pipes

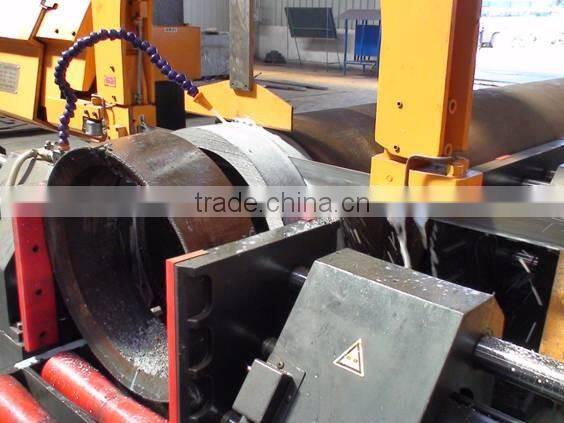

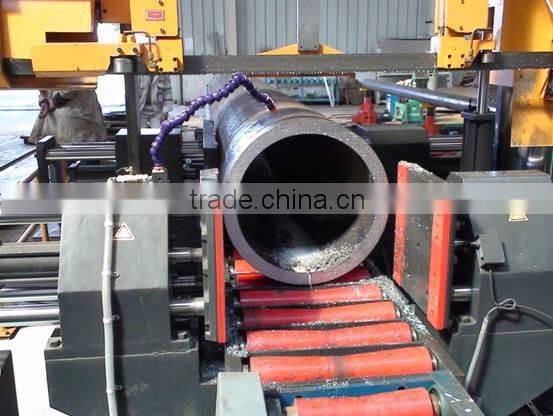

Product Close-up
Technichal Parameter
Pipe diameter applicable
DN50-600(φ60-610); DN150-800(φ159-813)mm
Structure
horizontal, with one main column+ one auxiliary column
Materials applicable
carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Feeding Speed
stepless smooth speed adjustment
Other details
Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.

Band saw tension: tensioning & loosen automatically by hydraulic

Cooling system: Built in coolant pump

Speed of the band saw: 17-85m/min speed control by frequency variation

Size of the band saw: 7400*54*1.6; 8050*67*1.6mm

Dimension of machine: 3750*2300*210mm; 3925*1660*2320mm

Weight of machine: 5000KGS;7500KGS (±5%)

Length-measuring system: a mechanical Length-measuring system could be provided so as to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system.

Measuring Length：1m /once

Control System：PLC Controlling.

Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.

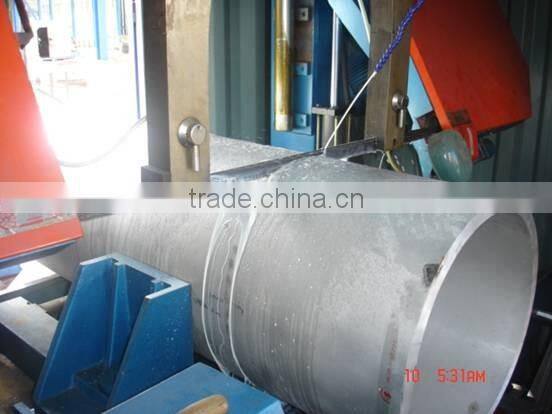

Cutting Quality
Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory-based trading company


Q:What's the quotation for this machining tool ?

A:It's highly customized machining tool,tailored to your requirements,which makes initial quoting rather indecisive.


Q:How long will it take to complete delivery ?

A:For single machine,it takes around a month in manufacturing if there's no stock which matches your requirements,after that the door to door delivery depends on the distance.
