PDSOFT Piping Prefabrication Detail Design Software

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai China Seaport
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Shanghai, China		Brand Name	QSPT
Model Number	PDSOFT 3DPiping V1.0		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Description

Product Name	PDSOFT Piping Prefabrication Detail Design Software
Performance features

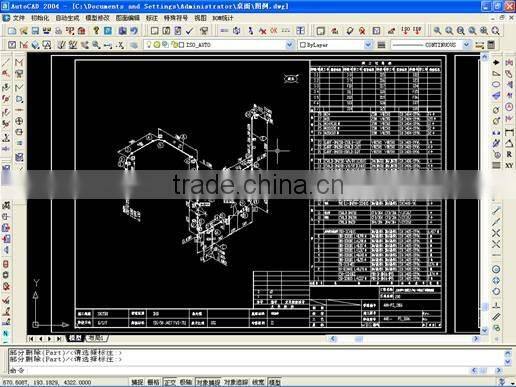

Drawing	Generating drawings quickly: This software is applicable for various drawings, prints and levels in the Design Institutes to produce ISO drawings and spool drawings quickly
Exporting	Exporting the relevant information: the information of the ISO drawings and spool piece drawings generated by this software can be exported to the pipe prefabrication process pipe software easily.
Synchronization	Sharing the design data: having the IDF interface module, the data can be obtained from the IDF middleware file of the imported plant design systems (such as PDS and PDMS) without building module; thus it is possible for the manufacturer or pipe prefabricating plant to share the design data and information from the large design institutes (engineering companies) by using the imported PDS or PDMS, and it is possible to connect the imported software and domestic PDS software.
Technical Parameters	Creating Piping Class Database: a basic work for designing the detailed drawing. Creating Pipe Line Database: a basic work for designing the detailed drawing. Creating piping module: creating pipe modules group by group based on the plan and elevation drawings or the original ISO drawing, as well as the foregoing pipe line database and piping class database. Generating ISO drawing: the marks on the drawings are the number of the spool number, weld number, pipe cutting size and material list, etc, which are required by the on-site piping mounting and management. Generating spool piece drawing: the marks on the drawings are weld number, pipe cutting size and material list, etc, which are required by the pipe shop fabrication.

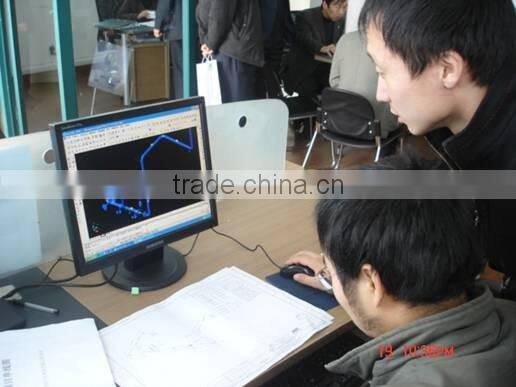

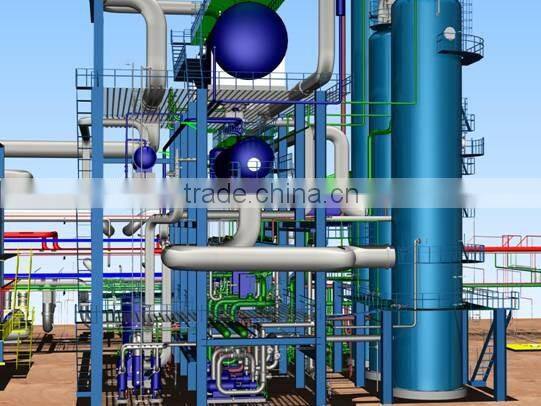

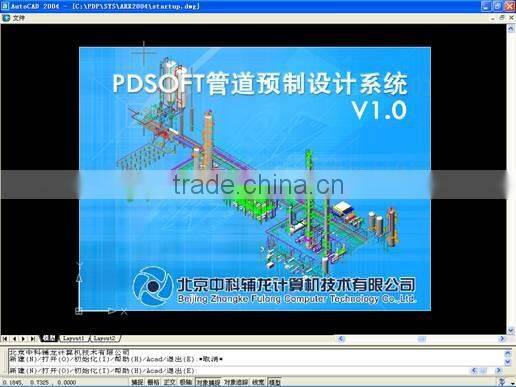

Product Show

Our Certifications

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory-based trading company
