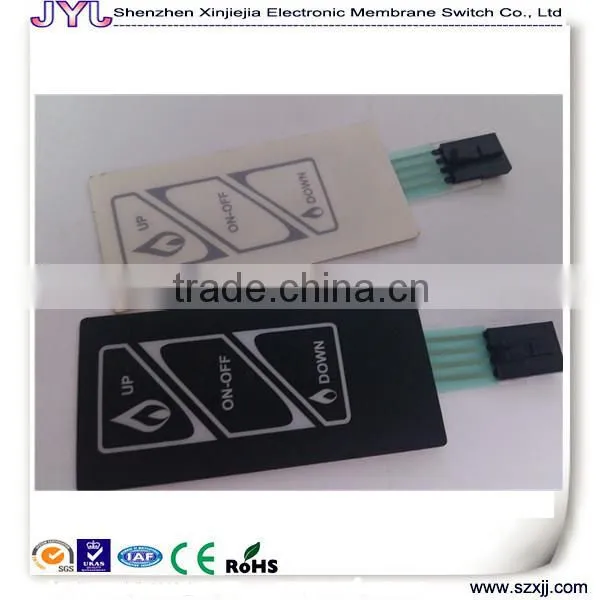

on off up Down Switches Membrane

US$ 0.36 - 2 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JYJ

Max. Current:

100mA

Contact Supplier Request Quote Chat Now

Shenzhen Xin Jie Jia Electronic Membrane Switch Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JYJ

Max. Current 100mA

Max. Voltage 35V

Specifications

1 Flexible circuit with adhesive
2 Embossed overlay
3 Screen printing
4rear adhesive 3M468/467

Supply all different kinds of keyboard membrane switch

Construction:

(1) Overlay (UV window) + circuit + LED + metal done array + (Connector) + double side tape
(2) EL backlight + Rubber keys
(3) Alumimun plate + rubber keys
(4) Metal domes
(5) Embossment
Customer' designes are welcome.

Technology

Properties:
Operating voltage: < 35V DC
Operating current: < 100mA
Contact resistance: < 100 Ohms
Open circuit resistance: > 10M Ohms
Operating temperature: -35 to 70 degrees Celsius
Storage temperature: -45 to 90 degrees Celsius
Life expectancy: 500,000 to 30,000,000 cycles
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available

Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)
Insulation resistance:> 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 C- +80 C, Storage temperature: -40 C - +85 C
Humidity: 40C , 90% -95%, 240 hours

Shenzhen Xin Jie Jia Electronic Membrane Switch Co., ltd. provide membrane switch with high quality and low price, we are a professional membrane switch manufacturer.

Membrane switches are widely used on industrial and home electronic equipments.
