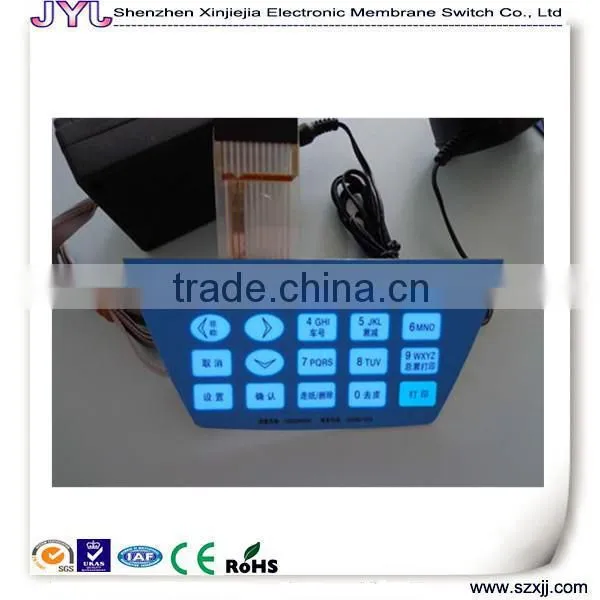

backLight Membrane switch made by customized with different connectors

Specifications

1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.

Specifications: Material: Autotex PET F150 and 180 or Polvester UV stabilized V200XE and /PC/PVC Customized designs are accepted Keypad button material: England acrylic Applications: equipment, household appliances, electronic products and more Overlay materials: most commonly used base materials are PET thin Rear adhesive: 3M9448MP, 3M467, 3M468 Number keys: 4 keys Matching colors: Pantone and RAL color matching system Gloss, semi-gloss or matte Metal dome tactile Standard tolerance: ±0.10 inches Electric parameter: Resistance: 200Ω/cm Contact current: 25 to 100mA Voltage rating: 2 to 24V Voltage insulation: 1,500V Voltage endurance: 250V (60Hz/minute) Insulation resistance 500V DC at 500MΩ Physical parameters: Active force: 0.3 to 3N Lifespan: >1mil (non-tactile) Hand speed: ≤5ms Temperature: -40 to 85°C Humidity: 40/48 hours, 95% RH Working altitude: 0 to 4,500m





specialised in producing:membrane switch,film board,flexible circuit board,PET conductive lines,PVC,PC,PET nameplate,epoxy nameplate, adhesive nameplate and so on.



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.



• Same formula, same success!
• Any good chef will tell you: only quality ingredients combined with first-rate skills will produce the very best results. At Xinjiejia China, we are convinced that with our expertise, our capacity to innovate, our flexibility and especially with our unique ClickTouch technology, we have all we need to surpass your highest expectations.
• Now that the table is set, enjoy!
• Graphic overlays, these thin parts made from a durable, printed polyester film represent an important part of today’s automated-interface market.
• Often found on the control panels of industrial machinery combined with mechanical switches, these simple and aesthetic products usually have a back adhesive that allows easy application of the overlay to its support.
• Much more appealing and distinctive when they are embossed, graphic overlays clearly benefit from being thermoformed using our unique ClickTouch technology.
• When applied to an existing control panel, or even when laminated on a backplate, the applications associated to this well-known product have one thing in common: they are cost-effective.



membrane switch and panel

membrane switch, overlay panel, graphic overlay panel, overlay, membrance switch, membrane keypad, membrane circuit, plastic nameplate, PVC/PC/PET plastic nameplate, graphic overlay,  remote control panel,  household appliance panel,  capacitive touch panel, window lens, nameplate, acryl panel, membrane overlay.
