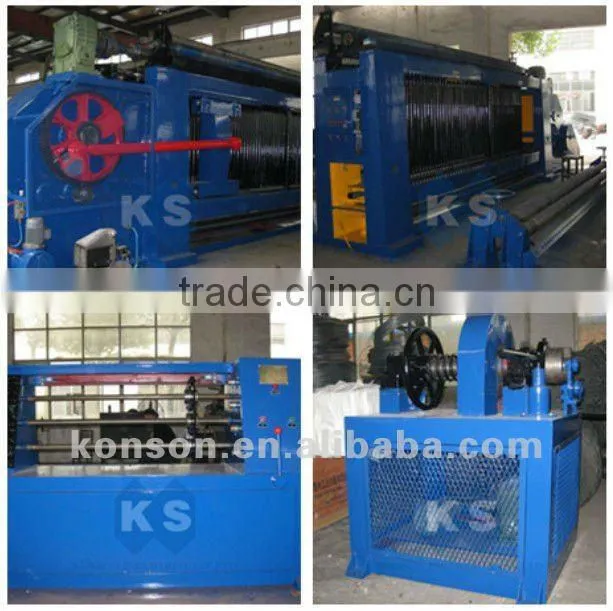

gabion netting line
USD $36,000 - $48,000
/ Set
1 Set(Min.Order)
- 8 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A
You May Like
-
4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
-
Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
-
Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
-
Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
-
Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
-
Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Konson | Model Number: | KS-Line4.5 |
Product Description
Specifications
gabion netting line1.CE certification.
2.Main netting machine.
3.wire tension device & winding machine.
4.Only for export.
gabion netting line is designed to make gabion mesh of various widths.
Specification:
model | mesh size | max wire dia. | max width | producing rate | motor power |
KS6080-2.4 | 60X80mm | 3.0mm | 2400mm | >2.0 m/min | 15 kw |
KS6080-3.2 | 2.8mm | 3200mm | 18.5 kw | ||
KS6080-4.0 | 2.8mm | 4000mm | 22 kw | ||
KS80100-2.4 | 80X100mm | 3.0mm | 2400mm | >2.4 m/min | 15 kw |
KS80100-3.2 | 3.0mm | 3200mm | 15 kw | ||
KS80100-4.0 | 3.0mm | 4000mm | 18.5 kw | ||
KS100120-2.4 | 100X120mm | 3.2mm | 2400mm | >2.8 m/min | 13 kw |
KS100120-3.2 | 3.2mm | 3200mm | 15 kw | ||
KS100120-4.0 | 3.0mm | 4000mm | 15 kw |
Range of supply
| Main netting machine | 1 Set |
| Winding machine | 1 Set |
| Wire tension device | 1 Set |
| Air compressor | 1 Set |
| Standard spareparts | 1 Set |
| Lubrication pump | 1 Set |
We can manufacture especial size as your request,User satisfaction is our unremitting goal!
