Specifications
Walling Stone Gabions1. CE,ISO9001,SGS test
2. PVC Coated Gabion mesh
3. 1mm or 0.5mm PVC coating
4. Various sizes
1. Introduction
Walling Stone Gabions
Walling Stone Gabion is made of double-twisted hexagonal wire mesh, its main material are hot dipped galvanized steel wire, zinc and aluminum alloy coated steel wire, PVC coated steel wire, etc.

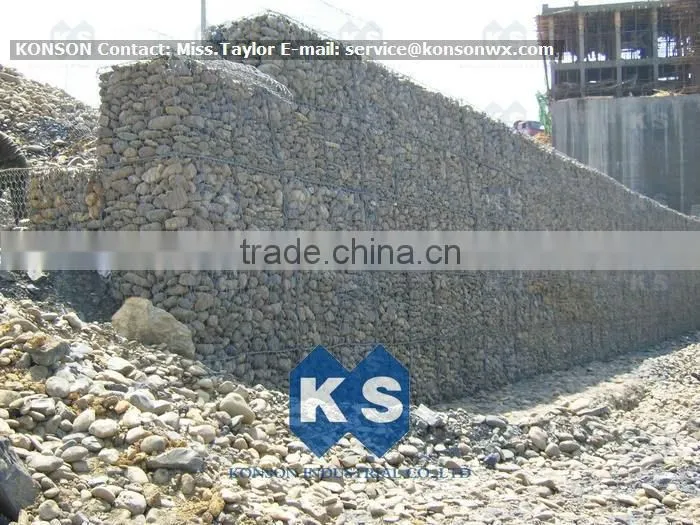

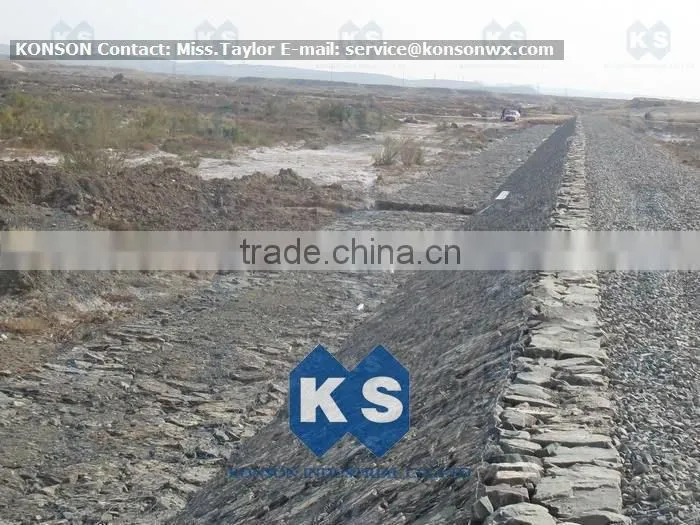

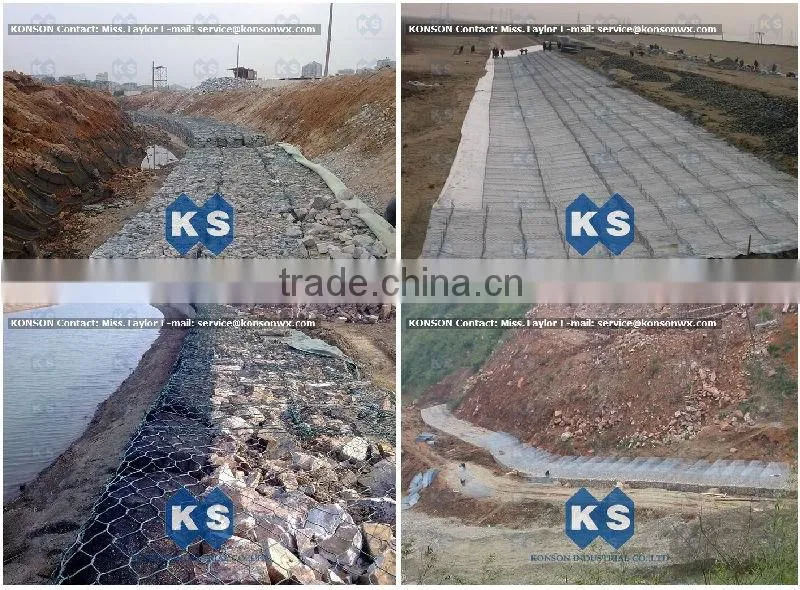

Walling Stone Gabions are filled with stones at the project site to form flexible, permeable and monolithic structures such as retaining walls, channels and weirs for erosion control projects. In order to reinforce the structure, there is selvedge wire on the mesh panel edge whose diameter is greater than mesh wire. Walling Stone Gabion is divided into cells by diaphragms positioned at approximately 1m centers.
The wire is heavily zinc coated and for protection it can also be PVC coated. Stainless steel wire is also available according to customers’ special order. Walling Stone Gabions are supplied in various sizes. 2m in length, 1m in width and 1m in height is the most popular size. The diameter of the wire used can also be varied.
2. Characteristics
C2. Construction is simple, without special skills.
C3. A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
C4. Withstand large-scale deformation, and does not collapse.
C5. Cage rock crevice between the mud can be used to grow plants, with the surrounding natural environment melting together.
C6. Has good permeability to prevent static fluid from the damage caused.
C7. Save transportation costs. Can be folded up and assembled on site.
U7. Bridge protection
Length (m) |
width (m) |
height (m) |
diaphragm |
volume |
tolerance |
2 |
1 |
0.3 |
1 |
0.6 |
Length+/-3% |
3 |
1 |
0.3 |
2 |
0.9 |
|
4 |
1 |
0.3 |
3 |
1.2 |
|
2 |
1 |
0.5 |
1 |
1 |
|
3 |
1 |
0.5 |
2 |
1.5 |
|
4 |
1 |
0.5 |
3 |
2 |
|
1 |
1 |
0.5 |
0 |
1 |
|
1.5 |
1 |
1 |
0 |
1.5 |
|
2 |
1 |
1 |
1 |
2 |
|
3 |
1 |
1 |
2 |
3 |
|
4 |
1 |
1 |
3 |
4 |
Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
Strands |
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
3 |
80X100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
80X120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
100X120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
100X150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
120X150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
3 |
(Note: The production's material and size can be producted as the customoer's requirement.)
5. Our services
S1. We can offer any sizes of gabion boxes, baskets or boxes according to the requirements of customers.
S2. We will reply you as soon as possible upon receving your request of your products.
S3. We can provide you with samples free of charge.
6. Packaging and loading
Export to Russia
7. Customers and Certificates
9. Company Information
The company, with more than 100 experienced employees, has two workshops, one is for the gabion machine making, the other is for the gabion&mattress making. It has a production facility of more than 10 complete sets of gabion production line and four million square meters hexagonal wire mesh(gabion box) each year.
