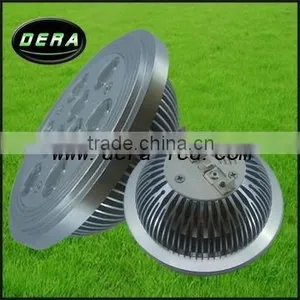

9 watt LED spot AR111 light

Specifications

LED spot AR111 light
1)life-span:more than 50,000 hours
2)Lumens:680lm
3Voltage: AC/DC 12V
4,power: 9W

LED spot AR111 light



Model No.: DY-AR111-G53-9W



Specification:



1, Led brand: Epistar 1W*9pcs

2, Led Efficiency: 90~100LM/W

3, LED service life: > 50000 hours

4, Power consumption: 10.5W(max)

5, Input voltage: AC/DC 12V

6, AC input frequency: 47~63Hz

7, Power supply efficiency: >80%

8, Light flux: 680LM(max)

9, Lamp light effect: 68LM/W(max)

10, CRI: Rz=71

11, Beam angle: 15/25/30/45/60 degree

12, Positive light: 300 Lx (2.5 meters 45 degree)

13, Case material: Aluminum + glass

14, Base type: G53

15, Housing color: silver

16, size: D111*H50mm

17, packing size/weight: 120*120*65mm/400g

18, Operation temp(humidity): 0~45 centi degree(<80%)

19, Storage temp(humidity): -25~80 centi degree(0~90% noncondense)

20, Body temp: <35 centi degree room temperature(25 centi degree)

21, IP Rating: IP40



Aplications:

1)  Direct replacement of traditional bulbs

2)  Widely use in illumination and decoration at home and public areas

3)  Suitable for office building,supermarts,emporiums,hotels,restaurants,showroom,club,store,garden,lamp,exhibition hall etc









Update Date:2012-04-08 02:21:40
