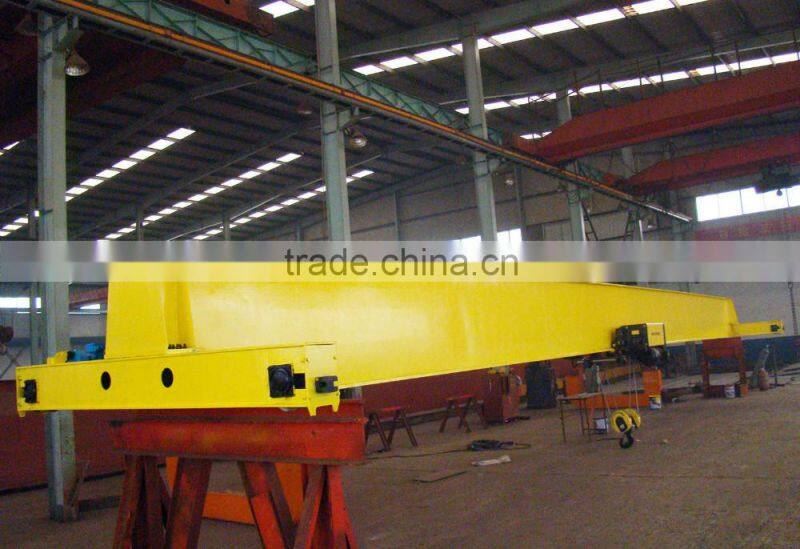

| STRUCTURE | ||||||
Radiographed butt welded joints ensure defect free safe rigid structure. The material of construction confirms to IS 2062 the Bridge designed for minimum vibrations | ||||||
| HOIST MECHANISM | ||||||
The rope drums are fabricated out of seamless tubes or steel plates conforming IS 2062 & driven by a motor, through totally enclosed oil immersed Gear box with helical teeth, flexible gear connection. The lower block consists of encased rope sheave of adequate dimensions as recommende by the relevant standards. | ||||||
| CROSS TRAVERSE MECHANISM | ||||||
Wheel driven by electric motor through totally enclosed, oil immersed gear box, floating shafts, flexible geared coupling drive for input & output connections. : | ||||||
| LONG TRAVERSE MECHANISM | ||||||
Single / Twin drive by electric motor through horizontal / vertical gear box. Flexible geared coupling drive of input & output connections. | ||||||
| ||||||
| BRAKES | ||||||
Fail safe, Electromagnetic Disc / Shoe or Electro Hydraulic Thrustor Brakes of 150% torque or more are fitted on shaft extensions in all motion. For heavy duty craces, a second brake can mounted to ensure fail safe operations. | ||||||
| CRANE CONTROL | ||||||
From floor through Pendant Push Buttons / Open cabin / totally enclosed cabin, operation at 380/48V, Electrical switch gear mounted inside dust proof control panels with suitable access for maintenance | ||||||
| LIMIT SWITCHES | ||||||
The hoisting / lowering motion is prevented from overshooting the pre-determined range by two rotary type limit switches, for the Cross & Long Traverse motion lever type limit switches are provided. | ||||||
| POWER SUPPLY SYSTEM | ||||||
To hoist cross traverse through trailing cables to long travel through trailing cables / MS Angle Iron Conductor / Shrouded the DSL Bus bar conductors to customer’s choice. | ||||||

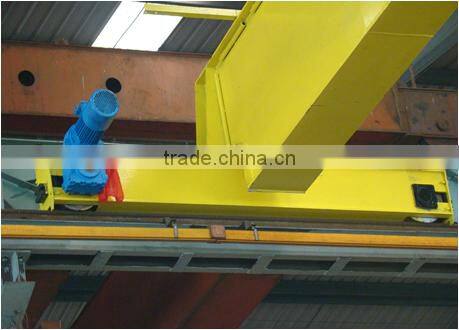

| WHEEL ASSEMBLIES : | ||||||
Trolley crane wheels are straight treaded, double flanged steel wheels on antifriction roller bearing in special L – Type bearing blocks. Open gear & Pinion type wheels also used. | ||||||
| SALIENT FEATURES | ||||||
| ||||||

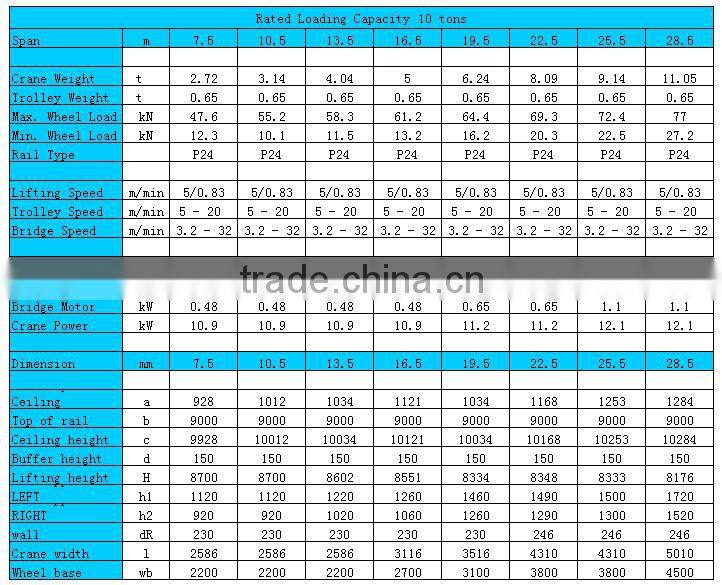

| CRANE DATA | ||||||
| ||||||
