Low Price BT-PH500 Hydrogen Generator Hydrogen Generator Kit
US$ 890 - 930
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
BEST
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or other Chinese ports appointed by buyer
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality BT-PH500 Hydrogen Oxygen Generator For SaleUS$ 890 - 930MOQ: 1 Set -
High Quality Hydrogen Generator Gas BT-PH500 Hydrogen Generator Hydrogen GeneratorUS$ 890 - 930MOQ: 1 Set
-
High Quality BT-PH500 Hydrogen Generator Hydrogen Generator India PriceUS$ 890 - 930MOQ: 1 Set
-
High Efficient BT-PH500 Hydrogen Generator Hydrogen Generator Factory PriceUS$ 890 - 930MOQ: 1 Set
-
Hydrogen Generator Power BT-PH500 Hydrogen Generator Hydrogen GeneratorUS$ 890 - 930MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
BEST
Model Number
BT-PH500
Usage
Hydrogen
Production Rate
500ml/min
Voltage
AC220V+/-10%
Power(W)
180W
Weight
12kg
Dimension(L*W*H)
370*180*360mm
Certification
CE
Warranty
12 months dating from you receiving the machine
After-sales Service Provided
Overseas third-party support available
Gas BT-PH500 Hydrogen Generator hydrogen generator
Description of BT-PH 500 pure hydrogen generator
|
Summary: 1. Adopt latest technology, meet demand of any models of gas chromatograph. 2. The electrolysis tank adopts transition metal catalysis, purity of hydrogen is up to 99.999%. 3. Adopt high sensitivity fuzzy control system and self-tracking system, pressure precision is controlled within 0.001Mpa. 4. It is certificated by National standard gas testing center , and of National Quality Supervision and Inspection Center for analyse instrument. 5. International quality grade level, best assistant of gas chromatograph.
<<<<PLS CONTACT US |
Technical Specification
| Model | BT-PH500 |
| Power Supply | AC220V+/-10% 50Hz+/-5% |
| Hydrogen Purity | 99.999% |
| Gas Generation | 0-500ml/min |
| Output Pressure | 0.4Mpa |
| Max. Power | 180W |
| Surrounding Temperature | 0-40℃ |
| Relative Moisture | <85% |
| Dimension (LxWxH) | 370x180x360mm |
| Weight | 12kg |

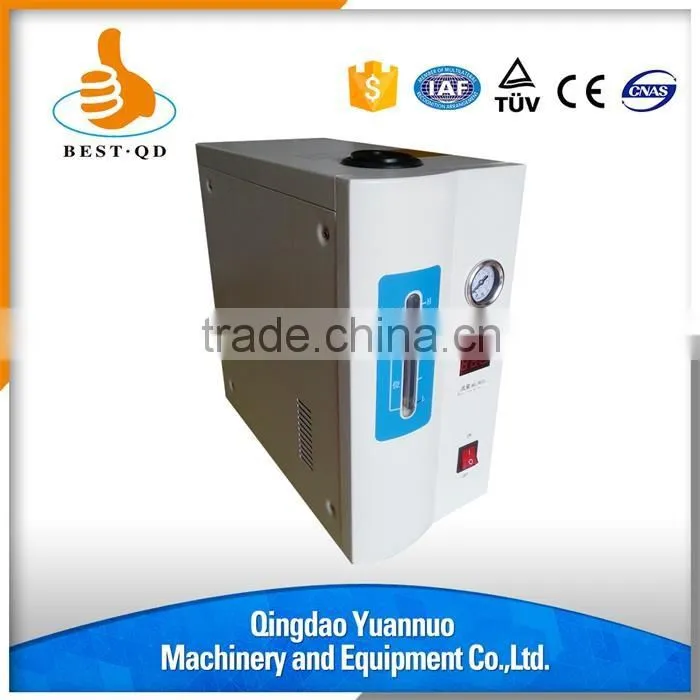

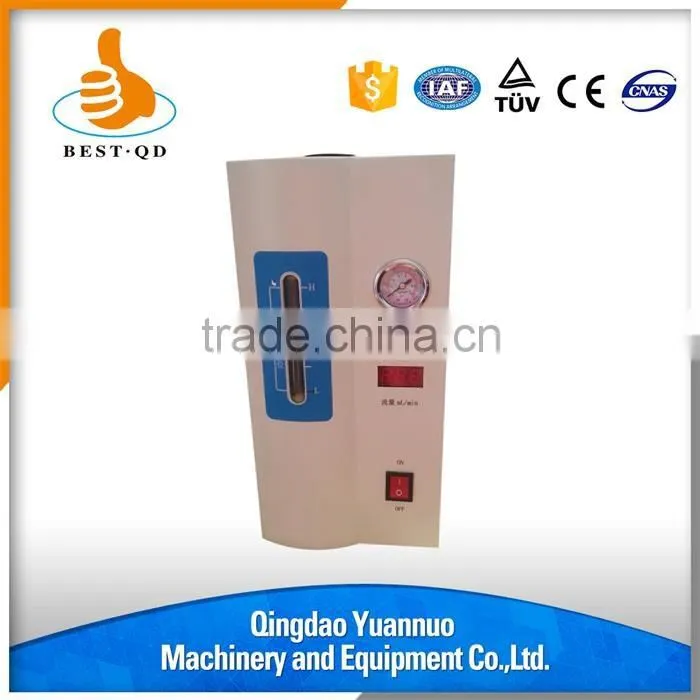

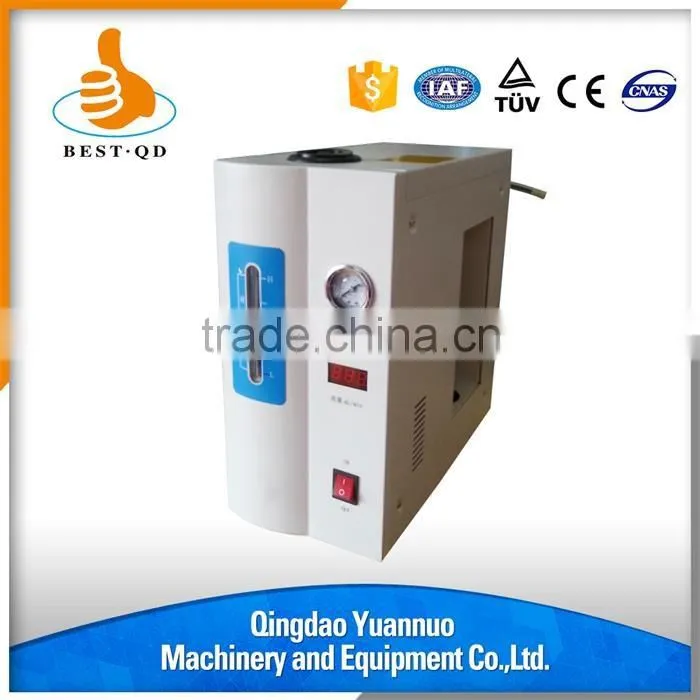

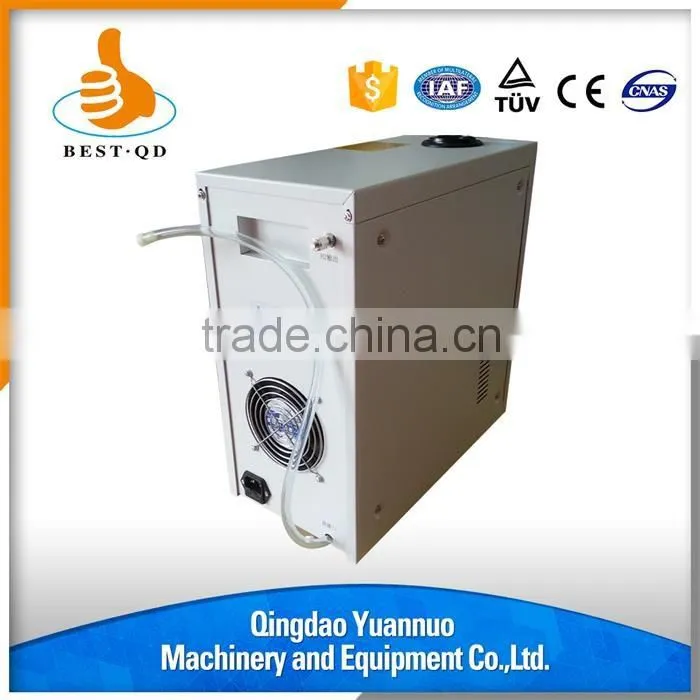

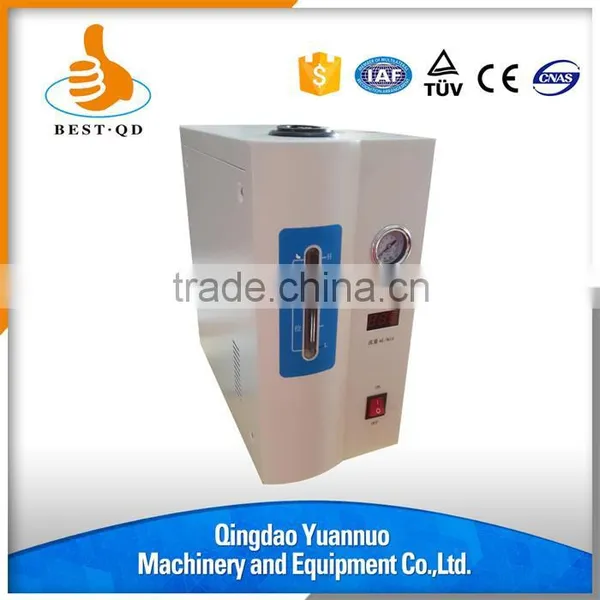

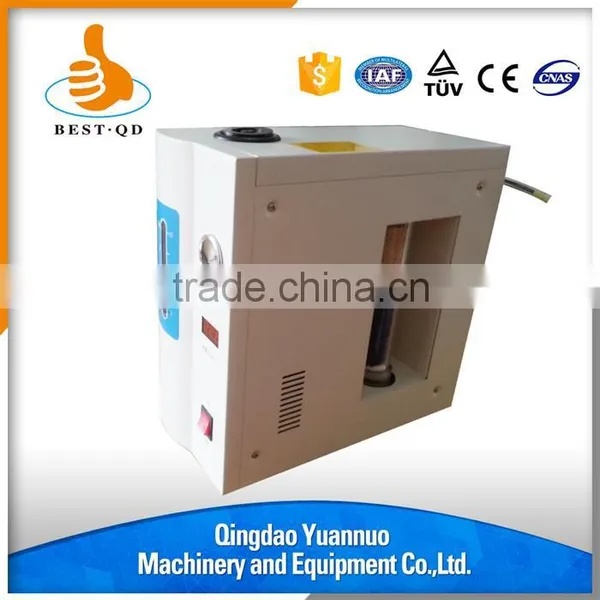

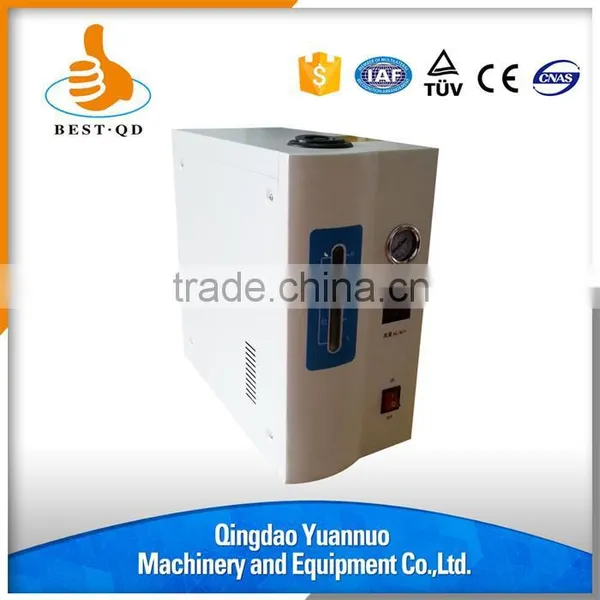

Product show
Working Principle

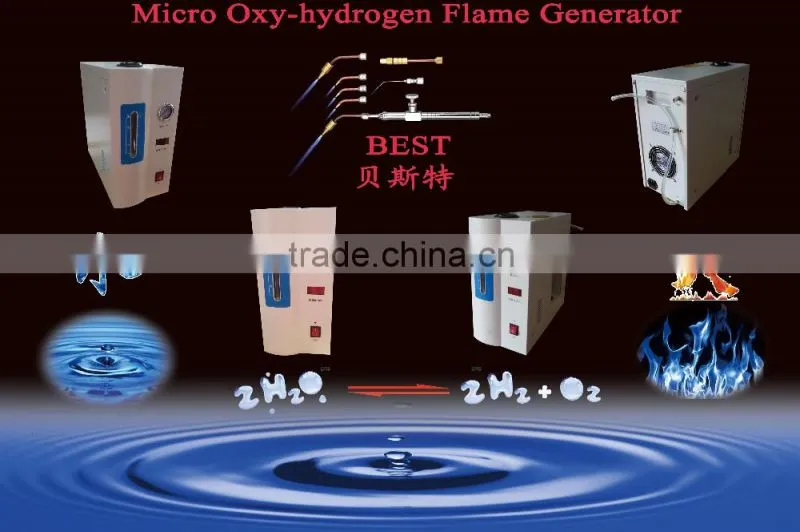

- It electrolysis water to generate hydrogen.
- Solution is mixture of water and KOH chemical powder.
- Take noble metal as electrode.
- Take latest membrane separation technique to separate hydrogen and oxygen completely.
- Adopt transition metal catalysis technology in electrolysis tank, hydrogen purity high, oxygen content is less than 3PPM.
- The equipment adopts high sensitivity fuzzy control system and self-tracking system, cancel pressure maintaining valve, realize constant voltage and constant current (CVCC) automatically.
- Pressure precision is within 0.001Mpa. According to gas chromatograph requirement, the gas output can be adjusted in range of 0-1000ml/min. When user stop using hydrogen and power off the machine, it stop gas generating, so no pressure exceed occurs, absolutely safe.
Technical Feature
- Programmed Control: All process is controlled by program. Automatic pressure and flow indicate, automatic constant voltage and constant current (CVCC), hydrogen output flow can be adjusted in range of 0-1000ml/min according to exact demand.
- Low hydrogen production humidity: advanced membrane separation technique and effective desiccant device, make original humidity lower. Furthermore, the two stages adsorption technique to make hydrogen humidity up to dew-point temperature -56 degree centigrade.
- Easy operation: No need steel cylinder. When you need hydrogen, just need to turn on the switch of the machine. You can use it, also can use it intermittently. It is equipped with safe device, sensitive and reliable.
Application
- Assistant of gas chromatograph.
- Extract and purify high purity metal.
- Weld metal.
Our service
- 12 months dating from buyer receiving the machine.
- During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost to replace.
- When warranty period is expired, if some part is broken or damaged, you can buy new from our company.
Payment terms
- We accept payment by T/Tto our company bank account, or by western union, or through alibaba trade assurance.
