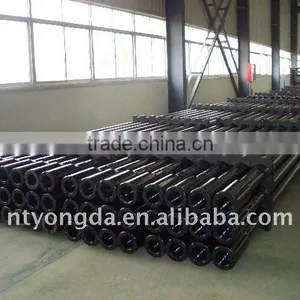

Nc50 Api Drill Pipe

Nc50 Api Drill Pipe thumbnail-1
Nc50 Api Drill Pipe photo-1
US$ 3,000 - 4,000 MOQ: 10 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
7.11, 10.92
Contact Supplier Request Quote Chat Now
Nantong Yongda Pipe Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Thickness 7.11, 10.92
Section Shape Round
Outer Diameter 60.3 - 168.28 mm
Place of Origin Jiangsu, China
Secondary Or Not Non-secondary
Application Drill Pipe
Technique Hot Rolled
Certification API
Surface Treatment Copper Coated
Special Pipe API Pipe
Alloy Or Not Is Alloy

Specifications

1)OD:2 3/8'--5 1/2'
2)Grade:E75,X95,G105,S135
3)Upset:IU,EU,IEU
4)Hardbanding:TK34,TK34P
5)Coating:ARNCO100XT

1)      Certificate: API 5DP-0002,API Q1-0964, ISO 9001,ISO 14001,OHSAS 18001

2)      OD:2 3/8” TO 5 1/2” of label 1 or 60.32mm to 139.7mm

3)      Wall thickness:6.45 to 12.7mm

4)      Grade:E75,X95,G105,S135

5)      Length:R1:6.1-7.01mm, R2:8.84-9.75mm, R3:12.19-13.72mm



Drill pipes form the drill string which transports drilling fluids and does drilling of the oil well.

Drill Pipes are manufactured as per API 5D specification using the tool joints manufactured as per API 7. The drill pipe body is friction welded to the tool joint to achieve good strength, these manufacturing is done as per API 5D specification.



Every joint of drill pipe manufactured are machined with threading as per specific requirements either API or Premium specifications.



Drill pipes also comes with hardbanding on tooljoint and optional internal plastic coating to get better corrosion resistance.



nc50 api drill pipenc50 api drill pipe
