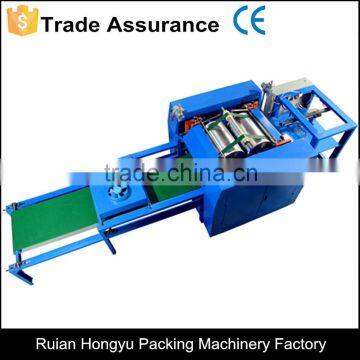

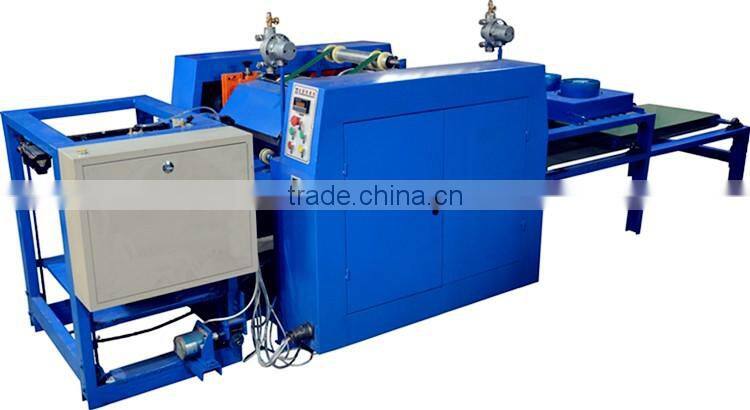

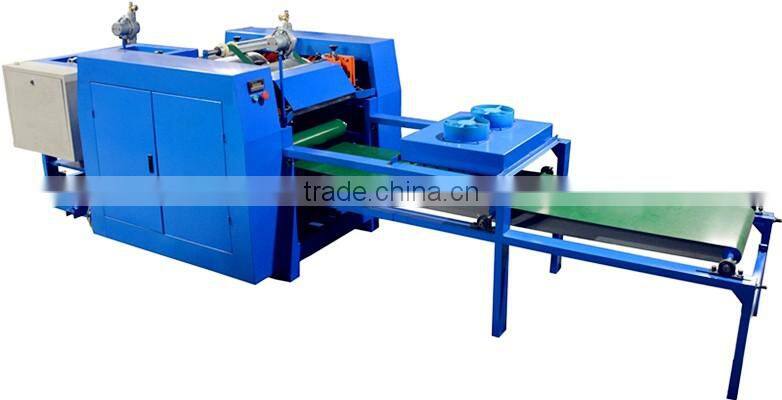

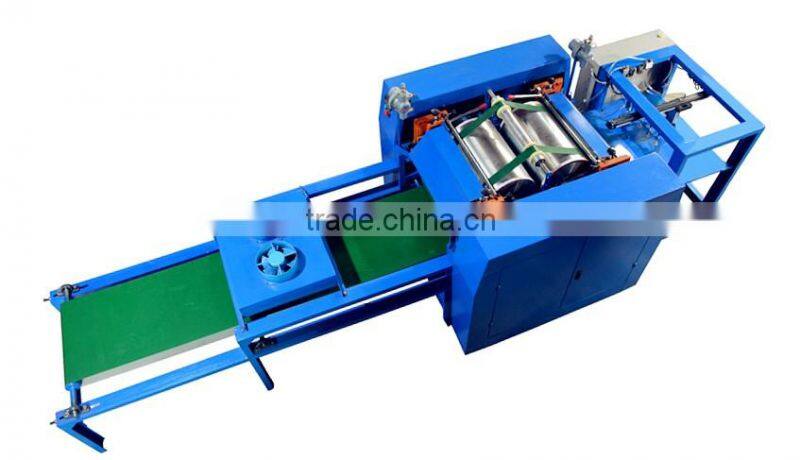

SBY-A 4 color printing machine
- 10 Set / Sets per Month
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Plate Type | Letterpress | |
| Place of Origin | Zhejiang, China | Brand Name | HONGYU | |
| Model Number | SBY-A-Series | Usage | Card Printer, Cloths Printer, Paper Printer | |
| Automatic Grade | Automatic | Voltage | 380V/220V | |
| Gross Power | 1.5KW | Dimensions(L*W*H) | 2800*1200*1200 | |
| Weight | 800kg | Certification | CE ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
In this model,machine equipped with high precision mechanical hand to do feeding job to instead of manual hand working.
*Before,your worker need feed material piece by piece with his hand to printing unit.

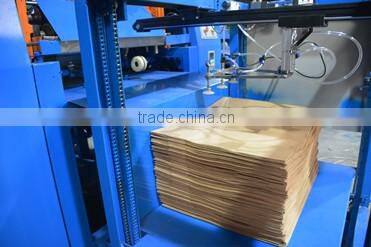

*Now,Your worker just load a stack of material in machine feeder part ,then start machine ,machine will auto feed them one by one ,each times moving and feeding is in same place.
USAGE

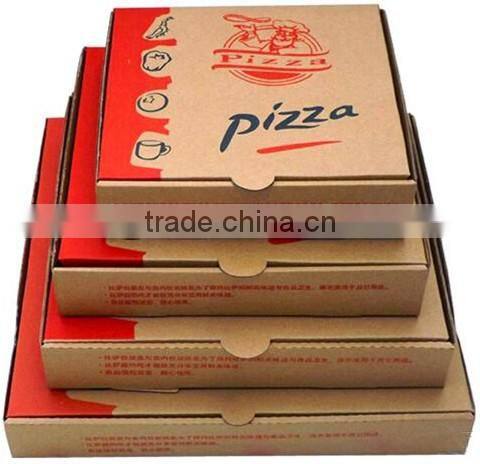

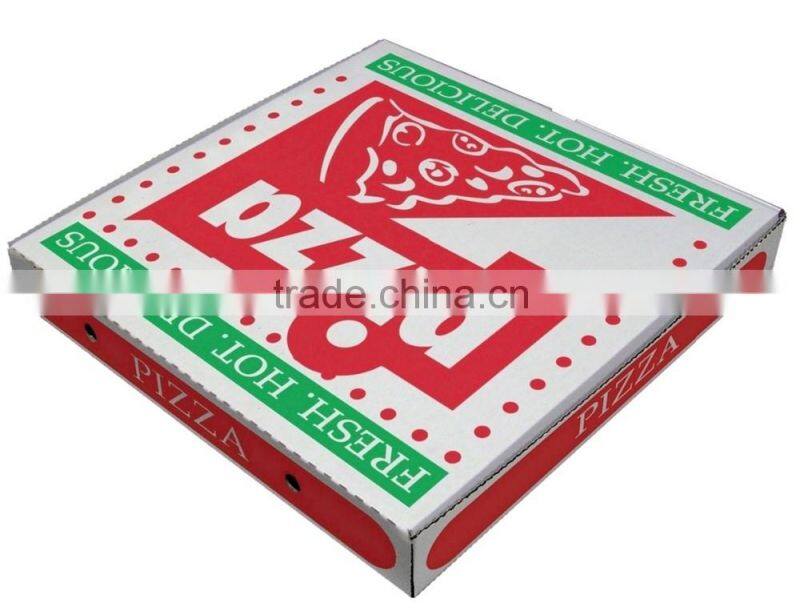

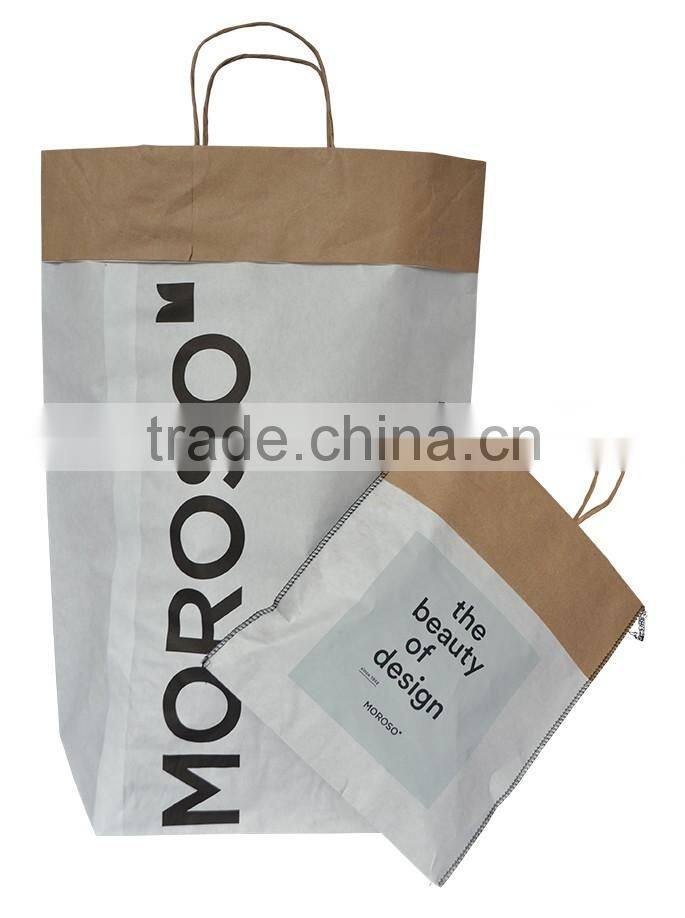

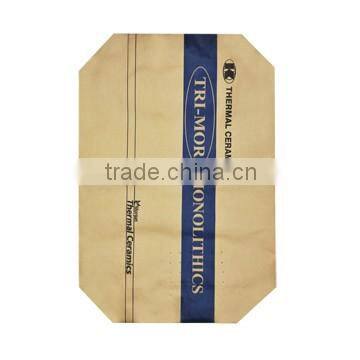

This machine suit for print paper bag ,paper cement sack ,laminated woven sack ,paper box etc...
MAIN FEATURE
1).Adopt mechanical hand to feed ,reduce your worker labor cost.
2).Mechanical hand with high precision locate and feeding function.
3).Feeder will automatic drop down for reload while there have none material in feeder.
4).In new model,Photocell eye can catch black color bag. and more sensitive.
5).Advanced (PLC)controller, Optomagnetic position locate & Pneumatic presser automatic clutch.
6).Automatic Counting Linkage Work.
7).Adopt frequency controller ,more steady&power saving.
8).Advanced anilox roller ,automatic ink pump printing ink circulating system. Make Ink More Uniform &Plump
9).Plate print 360°designing,make printer more accurate.
TECHNOLOGY

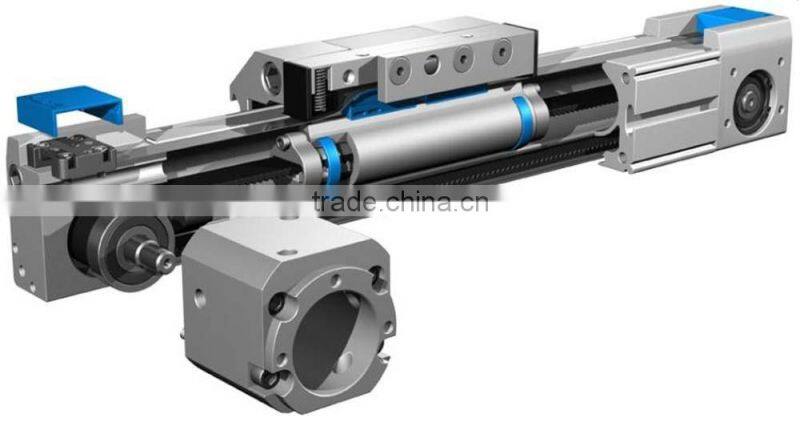

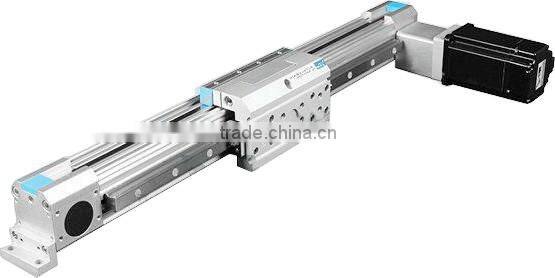

1.High Precision Mechanical Hand, Control by servo motor.
2.Machine Material:
Machine is made by U-steel and steel plate welded structure, Frame adopt 10 # thickness U-steel.
3.Printing Entrance:
There is a Electronic Photocell eye on entrance ,when bag come ,it will command sending wheel on the side to convey bag to printing roller.
4.New Design Guide Roller Upon The Printing Cylinder.
We add a set of guide roller here. Can prevent thin and small bag stick on printing cylinder.
5.Each printing cylinder equiped with 2pcs of photocell detect sensors ,when material convey to here ,sensors will control printing cylinder print on the material, photocell detect sensor can reduce printing deviation within 1mm. Also ,Each printing cylinder have a plate adjust ruler ,this can help you stick printing plate accurate. We chose cylinder stator ,it will push clutch make guide roller linkage convey belt lift ,make ink equably printing one bag surface.

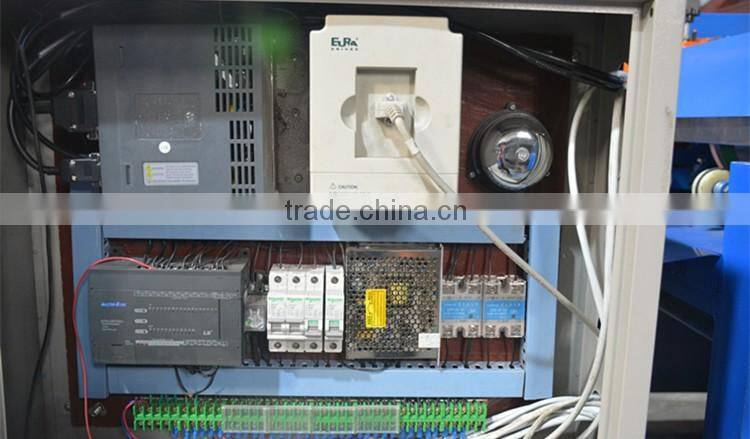

6. PLC System
PLC And Inveter Combination Control ,Make operating more easy.
PLC From LG-Korea, Inveter From EURA Sino-US

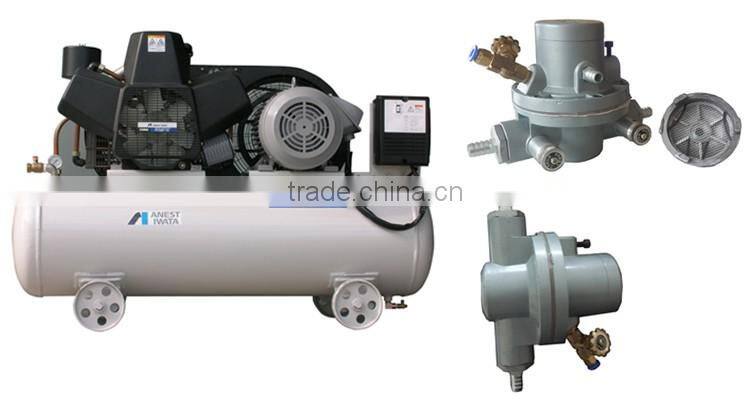

7.Ink Circular System
It will automatic circular ink ,and auto load ink. Needn't load ink by manual.
8.Dry Device In Back Side
With dry blower in back side ,can help ink dry fast after printing.
Certificate From Italy
Warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.*In Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.
