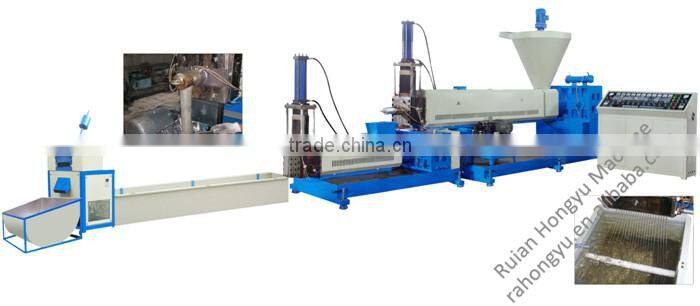

Price Of Plastic Recycling Granulator For Recycled PP
Foreword:
Our factory located in Wenzhou ,where have the biggest usage of recycling plastic of China.
According to foreign technology and actual situation ,we design and develop our machine, It’s a dry and wet type recycling granulator, serves massive plastic recycling factory around the world.
Our Granulator Advantage:
- Big size screw diameter
- High production capacity
- Low noise
- Simple Structure
| Model | 125 | 135 | 155 | 200 | 230 |
| Main motor screw diameter | φ125mm | φ135mm | φ155mm | φ200mm | φ230mm |
| Main motor screw length | 2000mm | 3000mm | 3000mm | 2600mm | 2800mm |
| Motor gear box | ZFY225B | ZFY250B | ZFY280B | ZFY330B | ZFY375 |
| Main motor power | 30KW-6P | 45KW-6P | 55KW-6P | 90KW-4P | 90KW-6P |
| Auxiliary screw diameter | φ108mm | φ125mm | φ135mm | φ160mm | φ160mm |
| Auxiliary screw length | 1200 mm | 1500 mm | 1500 mm | 1200 mm | 1500 mm |
| Auxiliary gear box | ZFY173B | ZFY200B | ZFY225B | ZFY225B | ZFY250B |
| Auxiliary motor power | 11KW-6P | 15KW-6P | 18.5KW-6P | 22KW-4P | 30KW-4P |
| Output/24 hr | 1-2TON/24hr | 2-3TON/24hr | 3-5TON/24hr | 6-10TON/24hr | 8-13TON/24hr |
Usage:
According to different design of screw and machine configuration ,to produce plastic particle from after washed PP .LDPE .HDPE material.
Main Feature:
Adopt Dual-step composite recycle granulate machine ,suit for recycle waste plastic with high water content.
Mainframe material barrel screw have air exhaust and water drainage structure,Can directly produce particle after material washed and smashed.
Material through secondary flitter by Dual-step composite structure ,have good air exhaust effect ,make particle good effect of dense,color,brightness,plastify.
According different machine configuration ,Have produce capacity of:50-500Kg/H.
Granulator Parts Picture:

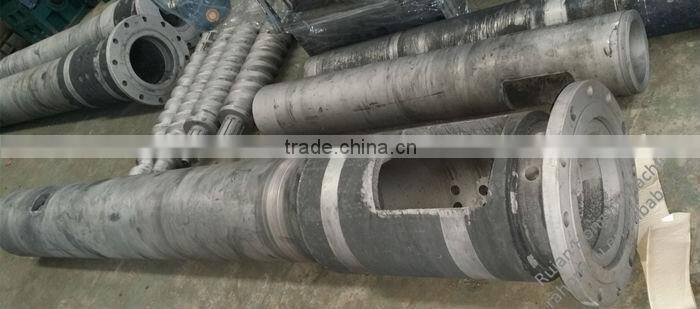

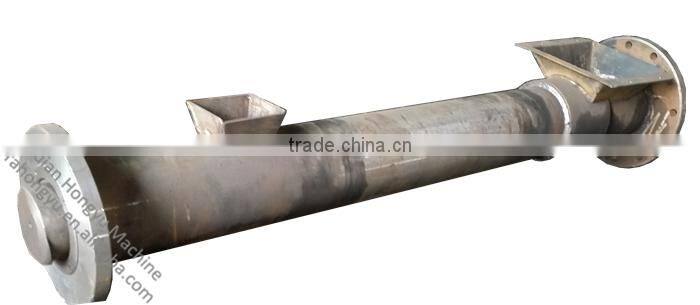

Material Barrel Screw

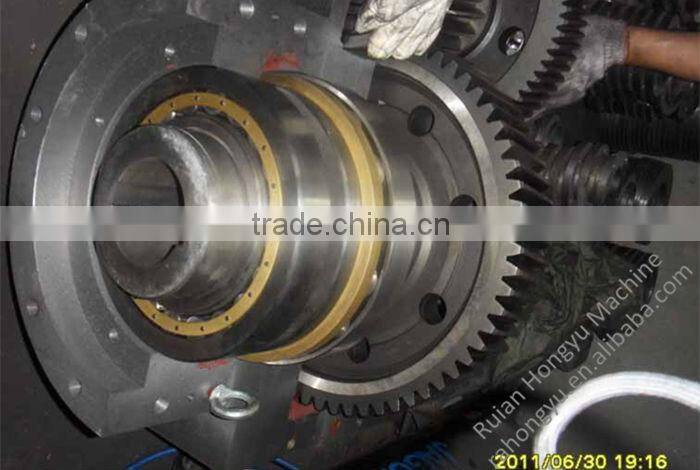

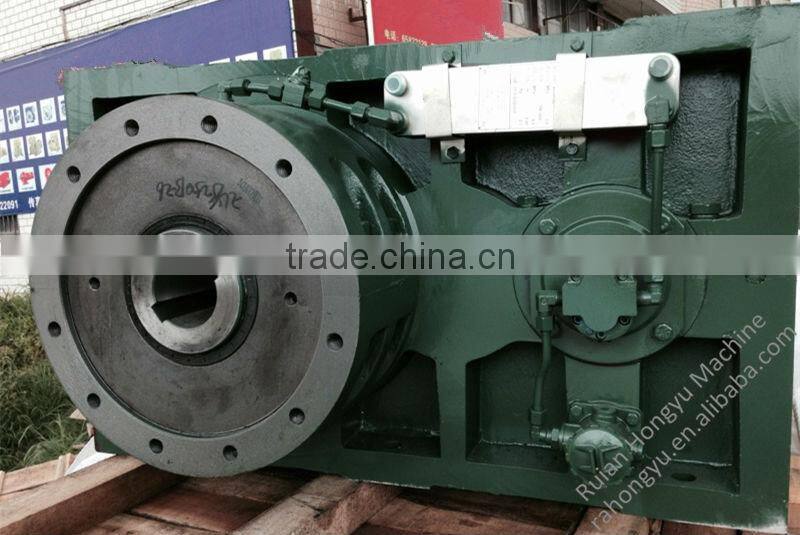

Cast Iron Gear Box
Gear made of Alloy steel and through grinding process ,have advantage of reduce shock ,noise ,wearproof ,long serve life.

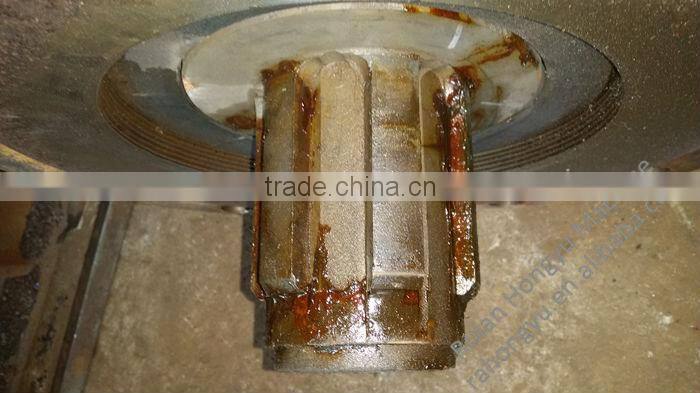

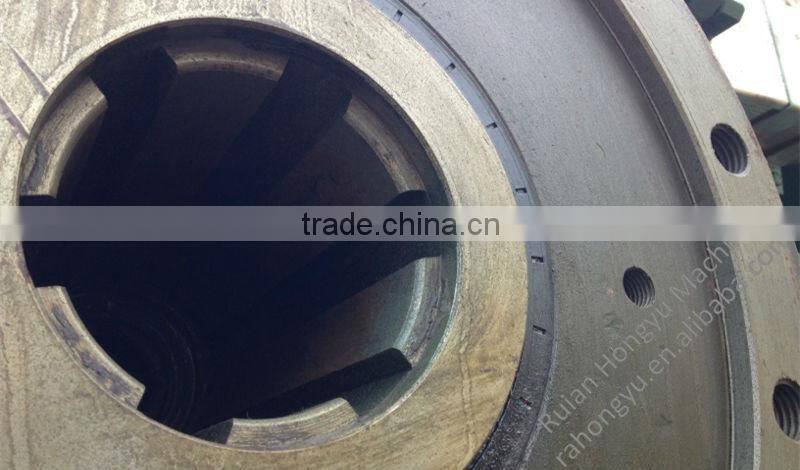

Screw spindle head & Spindle cover adopt spline type ,and enlarge its diameter ,make gear box bearing much more.

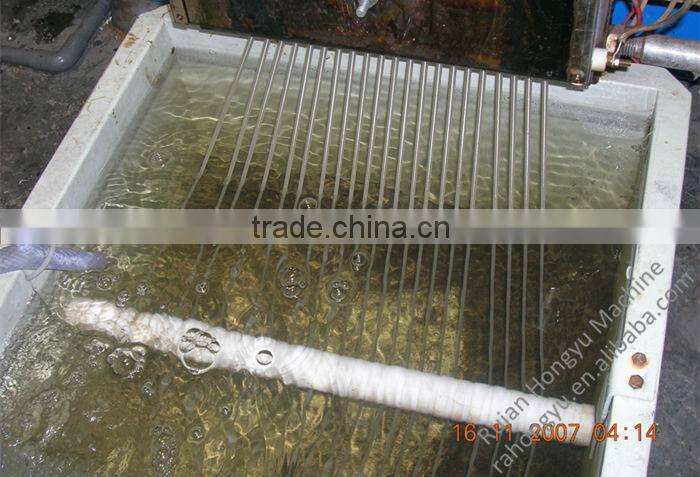

Movable stainless steel cooling water tank

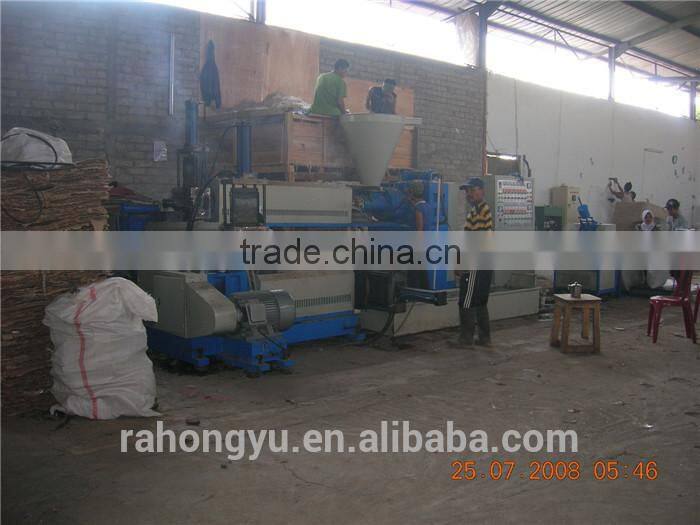

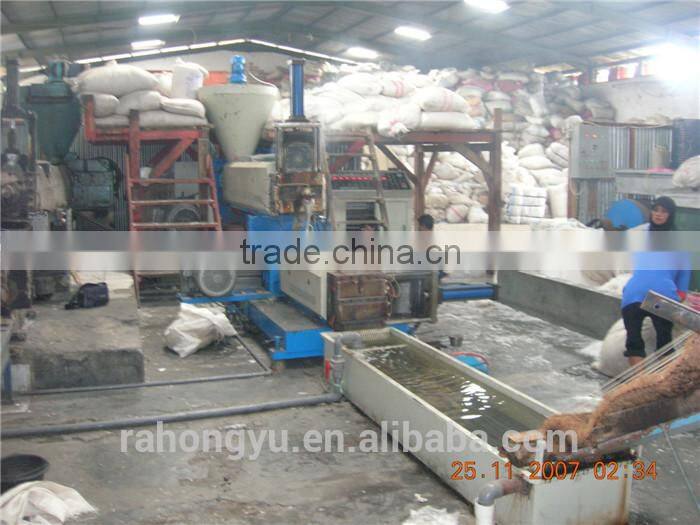

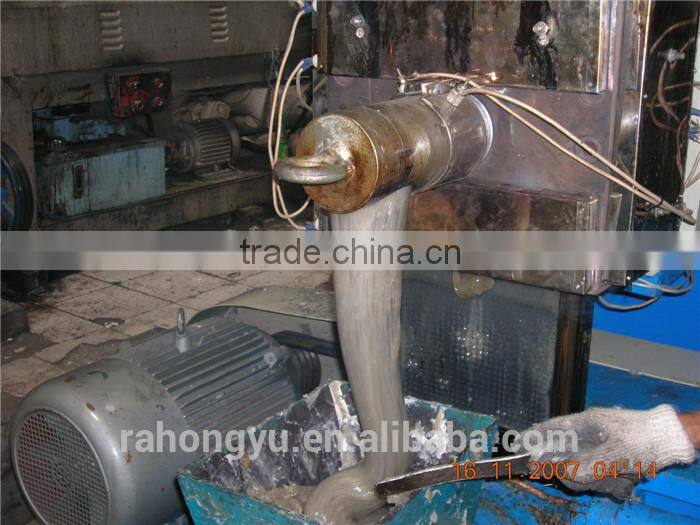

Machine in our foreign country customer factory
- Date of foundation:2002
- Sales Market:Domestic and Overseas markets
- About QC: Excellence, quality first is our philosophy
- 24 Hours Technical Support By E-mail
- Calling or Door To Door Service
- Use Friendly English Software ,User Manual And Detailed Videos/CD
