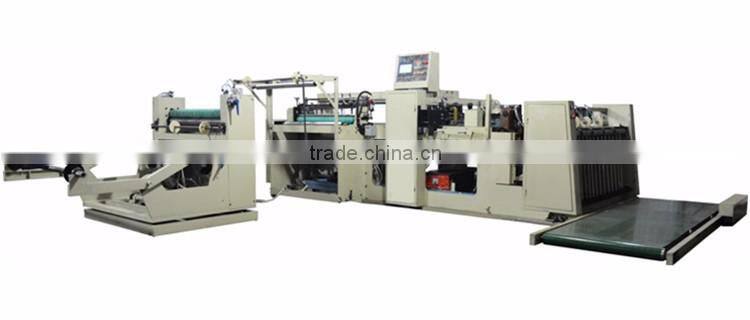

Automatic Raschel Mesh Net Bags Bags Making Machine

Automatic Raschel Mesh Net Bags Bags Making Machine photo-1
Automatic Raschel Mesh Net Bags Bags Making Machine photo-2
US$ 18,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Other, Cutting Sewing Machine
Bag Type:
Other, Agricultural Packing Bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Other, Cutting Sewing Machine
Bag Type Other, Agricultural Packing Bag
Material Other, Plastic Mesh Bag ,PP Woven Bag
Computerized Yes
Place of Origin Zhejiang, China
Brand Name HONGYU
Model Number HY-PCS-800
Voltage 220V/380V
Power(W) 5.75Kw
Dimension(L*W*H) 5210x3920x1500mm
Weight 2000KG
Certification CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Usage

    PCS-800 Model is research base on pp woven fabric cutting & sewing technology ,suit for cutting & sewing plastic mesh bag ,pp woven bag.It’s control by computer ,adopt dual(double)-servo motor ,five frequency inveter to control & drive.
    Bag cutting and sewing by this machine with good effect ,collection effect is in good stack.can save about 70% larbor cost.

Work Process

For Plastic Mesh Bag :
Loading Material Roll→Unwinding→Deviation Correct→Length Count→Cutting→Mechanism Hand Feeding→Insert Trademark Label→First Bottom Folding→Ultrasonic Sealing→Second Bottom Folding→Sewing→Sewing Suture Cut Off→Number Counting→Collection.


For PP Woven Bag:
Loading Material Roll→Unwinding→Deviation Correct→Length Count→Cutting→Mechanism Hand Feeding→First Bottom Folding→Second Bottom Folding→Sewing→Sewing Suture Cut Off→Number Counting→Collection.

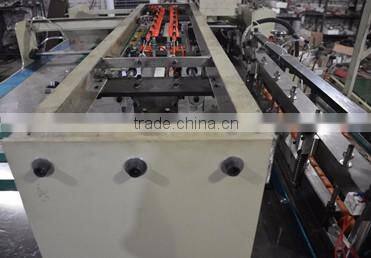

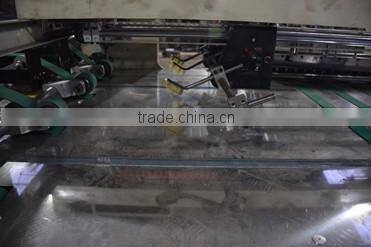

Detailed Images

Function

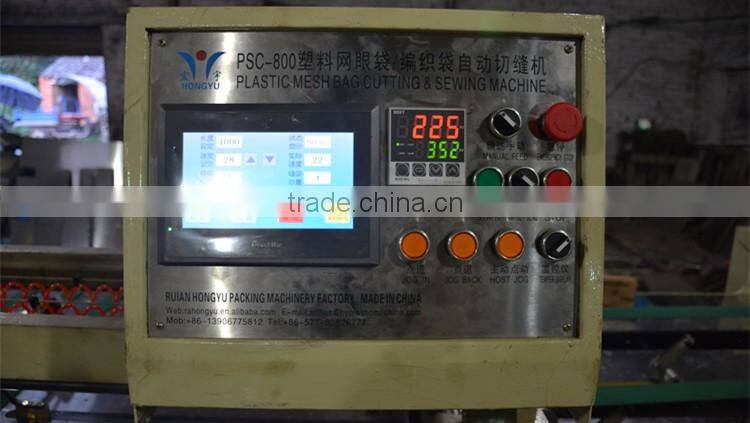

    Machine is control by program ,production data is operate on touch screen:Bag length ,Bag width,Bag Distance,Needle Distance,Production Speed,Quantity Count,Stack Convey,Fault Alarm.

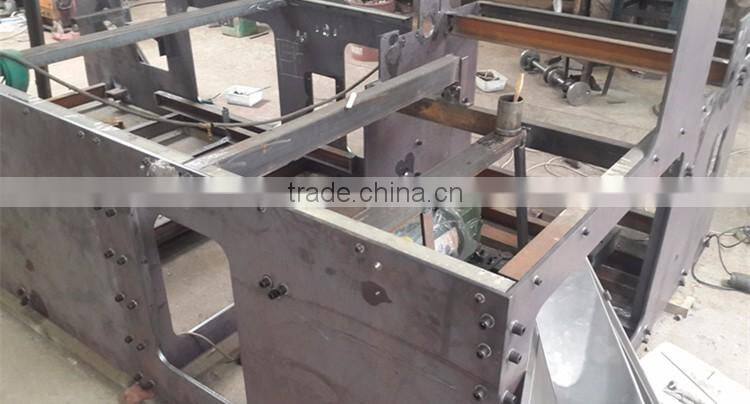

1.Whole Machine Frame Made Of 10mm thickness Steel Plate.

2.With Touch Screen Operate,Simple And Intuitive,High Automation Level. System Alarm,Easy To Know Work Condition And Fault.

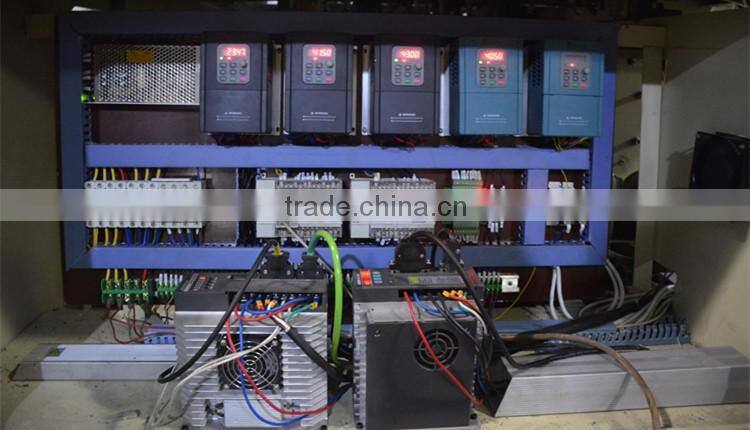

3.Adopt servo motor to drive ,five frequency inveter to control.can accurately control machine working precision and bag length.

4.Adopt Mechanism Hand To Feed ,Make Bag Can Accurately Feed To Bottom Folding And Sewing Device.

5.Automatic Trademark Label Insert Device,Solve The Problem Of Plastic Mesh Bag Can’t Reflect The Brand.

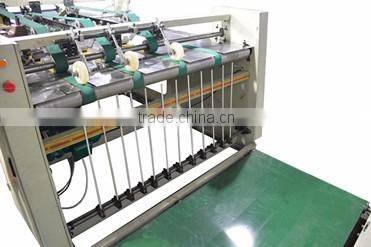

6.Automatic collector ,make bag collection more easily

Paramaeter
Model
HY-PCS-800
Max.Unwinding Diameter
1200mm
Material Width
250-800mm
Cutting Length
350-1300mm
Cutting Accuracy
±2mm
Bag Bottom Folding Width
15-40mm
Production Capacity
25-40pcs/min
Needle Distance
7-13mm
Total Power
5.75kw
Heating Power
1kw
Ultrasonic Power
400W
Air Consumption
0.36m³/min
Size
5210x3920x1500mm
Weight
2000kgs

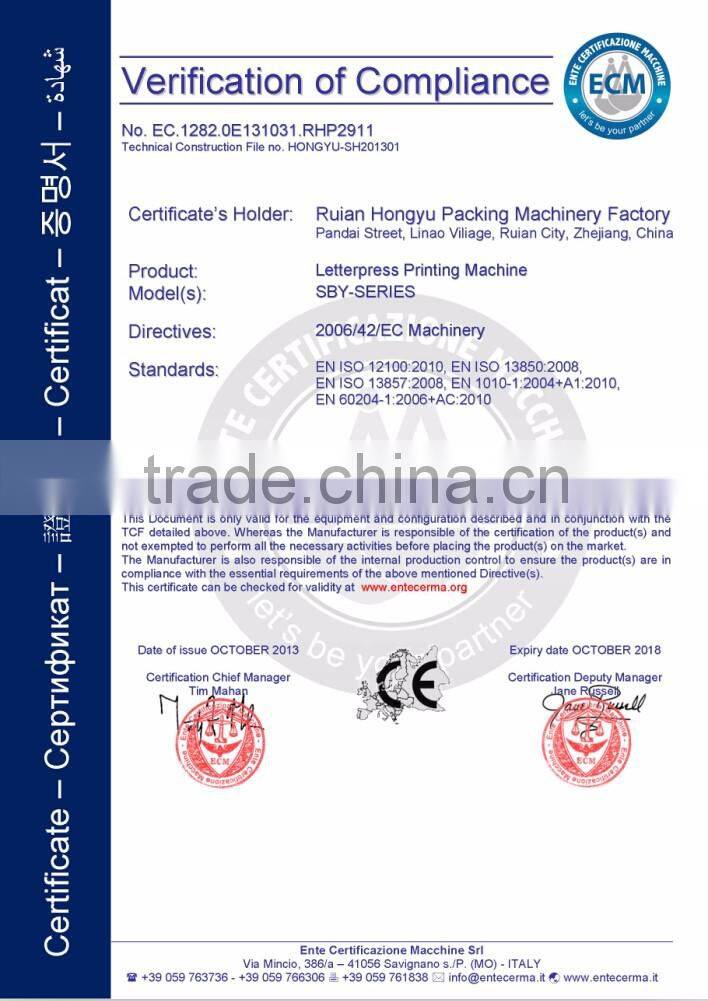

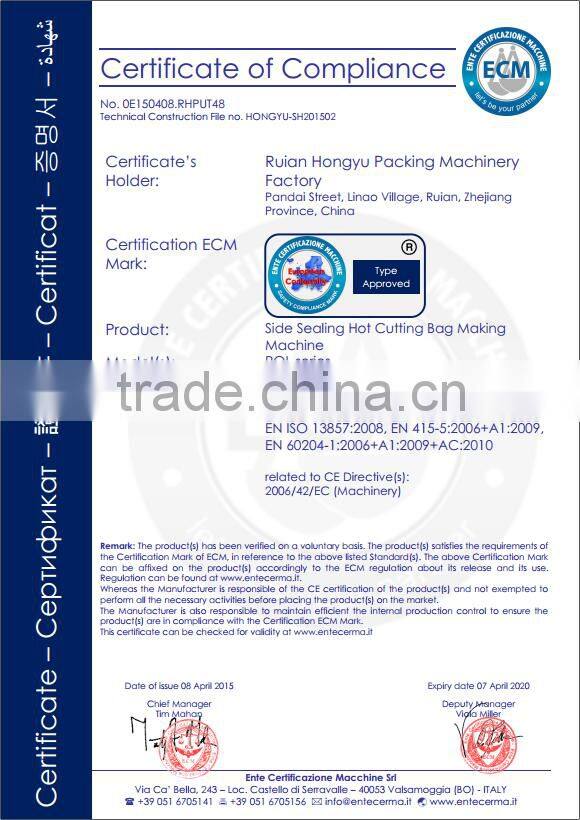

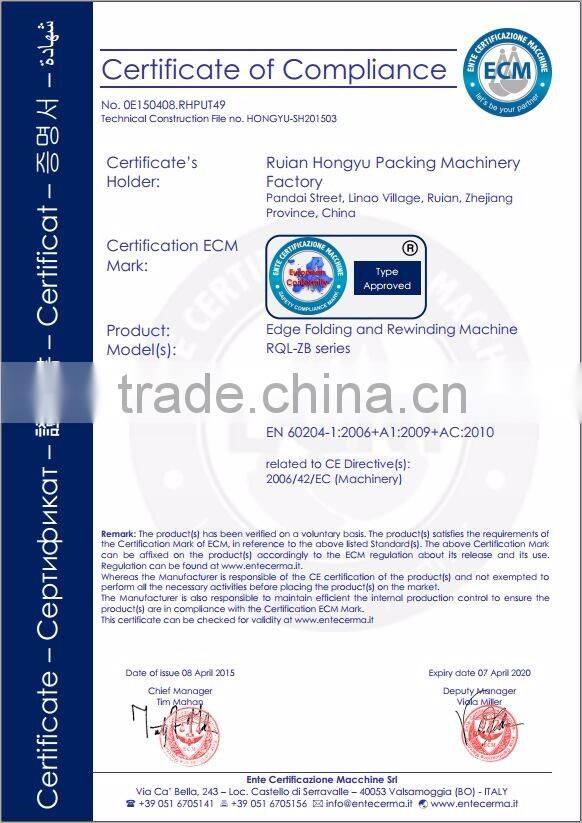

Certifications
Our Service

Pre-Sales Service

*24 Hours Technical Support By E-mail
*Calling or Door To Door Service
*Use Friendly English Software ,User Manual And Detailed Videos/CD

After-Sales Service

* Date of foundation:2002

* Sales Market: Domestic and Overseas markets
* About QC: Excellence, quality first is our philosophy
