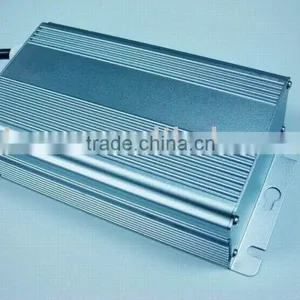

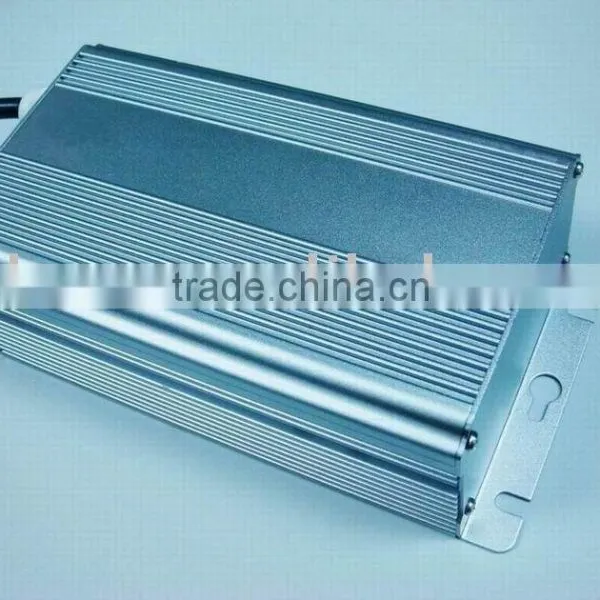

Help CenterDigital Electronic Ballast (TXD-150-24)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Techone
Model Number:
TXD-150-24
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
Techone
Model Number
TXD-150-24
Style
Electronic
Usage
High Intensity Discharge
Specifications
Ballast for 150W HID Lamp (TXD-150-24)Ballast for 150W HID Lamp (TXD-150-24)
Specification:
V. In. Ranged at: 20Vdc~30Vdc
Rating V. In: 24Vdc
Rating Current in: 3.2A+/-1%
Output load: One MH150W lamp
Output power: 150W+/-3W
Working temp: -40º C~+105º Cin the extent of input
Reverse voltage protection: No damage against ballasts and bulbs will be caused by reverse connection.
Protection of short circuit: Lock protection against continuous or to long-time short circuit.
Protection of open circuit: Lock protection in 0.7s after open circuit.
Special request: Water proof, Shocking resistance
High voltage test: GND 500Vdc/1 min≤10mA/ 1 min
Isolated resistance: GND≥100MΩ
Dimension (mm): 164x75x50mm
Safety and regulation: IEC61347
EMC: EN55015
