Help Center35W Emergency Ballast
Related Products
Specifications
Voltage input range: 100Vac~268Vac/12VdcInput frequency: 50Hz~60Hz
Power factor: >0.99
Efficiency: 95 %( Max)

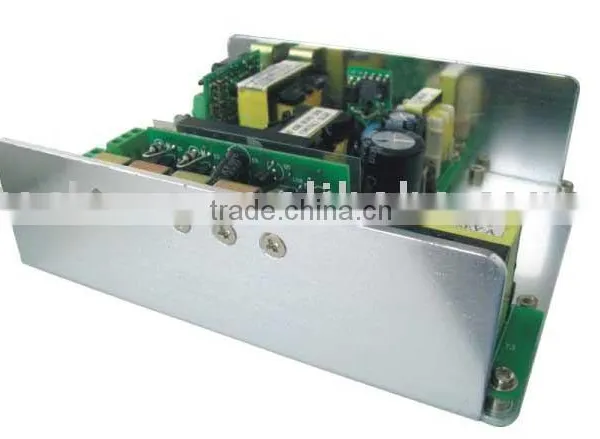

HID MH Digital Electronic Ballast for 70W Metal Halide Lamp
Model number: HT-70/35W (Compatible with HPS70W lamp)
Specification:
Voltage input range: 100Vac~268Vac/12Vdc
Input frequency: 50Hz~60Hz
Power factor: >0.99
Efficiency: 95 %( Max)
THD: <10%
Output power: 70W/35W
Current crest factor: <1.5
Output frequency: 100 Hz
Protection of short circuit: Available
Protection of open circuit: Available
Protection of ignition failure: Available
Protection of thermal: Available
Protection of end of lamp life: Available
Weight: 0.45kg/0.99lb
Max. Lamp distance from ballast: 3m/9.8ft
Operating temperature range: -30º C~+50º C
Dimension (L X W X H): 150X120X43 (mm)/5.906X4.724X1.693 (inch)
Max case temperature (T C): 90º C
Safety and regulation: IEC61347
EMC: EN55015
Send Inquiry to This Supplier
