Home > Consumer Electronics > Mobile Phone & Accessories > Mobile Phone Cable > Customized 2 USB AM to Molex 2pin Terminal Cable For Banking Equipment

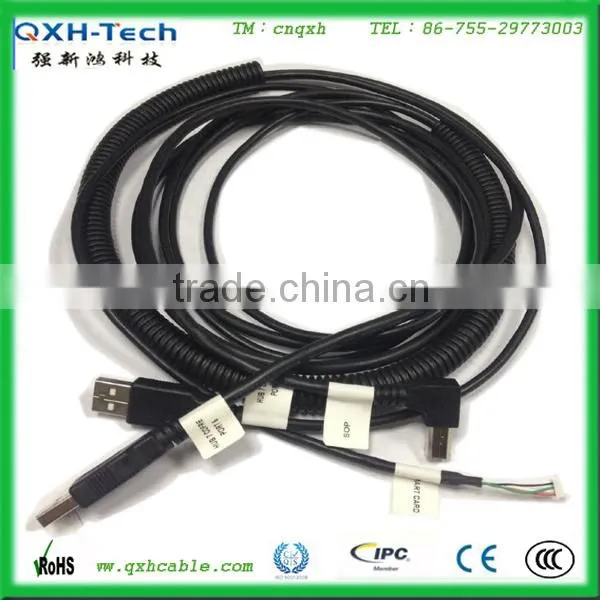

Customized 2 USB AM to Molex 2pin Terminal Cable For Banking Equipment
US$ 0.5 - 0.95
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
QXH-TECH
Place of Origin:
Guangdong, China
Use:
Camera, Computer, Mobile Phone, Computer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
QXH-TECH
Place of Origin
Guangdong, China
Use
Camera, Computer, Mobile Phone, Computer
USB Type
Standard
Specifications
1. USB AM to terminal cable2. Bulkhead dual usb b type cable
3. Cables factory in Shenzhen
4. UL,CE&RoHS Compliant
Product name:
Customized 2 USB AM to Molex 2pin Terminal Cable For Banking Equipment
Specifications:
1. USB AM to terminal cable, designed for banking equipment
2.Optional gold and nickel plating.
3.Conductor:Tinned copper
4.Edition:USB2.0,
5.Gauge:28AWG+24AWG,1P+2C+1+B(AL)
4.Edition:USB2.0,
5.Gauge:28AWG+24AWG,1P+2C+1+B(AL)
6.Length:optional,.
7.Jacket color: Black,Bule ,Grey,Transparent, and according to the clients’requirements.
75 P PVC as the jacket outface,45 P PVC is used to mold the connector
8.Braid shield according your requirements.(64 AL Braids)
Electrical:
1.100% open & short test
2.Hi-Pot: DC 300V 10ms
3.Insulation Resistance: 10M OHM /300V Min.
4.Contact Resistance: 0.01 OHM Max.
5.Shield up to 65% braid.
6.Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
1.100% open & short test
2.Hi-Pot: DC 300V 10ms
3.Insulation Resistance: 10M OHM /300V Min.
4.Contact Resistance: 0.01 OHM Max.
5.Shield up to 65% braid.
6.Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
