Specifications
1.usb cable a b2.9years professional factory
3.UL/CE/ROHS/ISO9001/IPC certificate
4.USB auto soldering machi

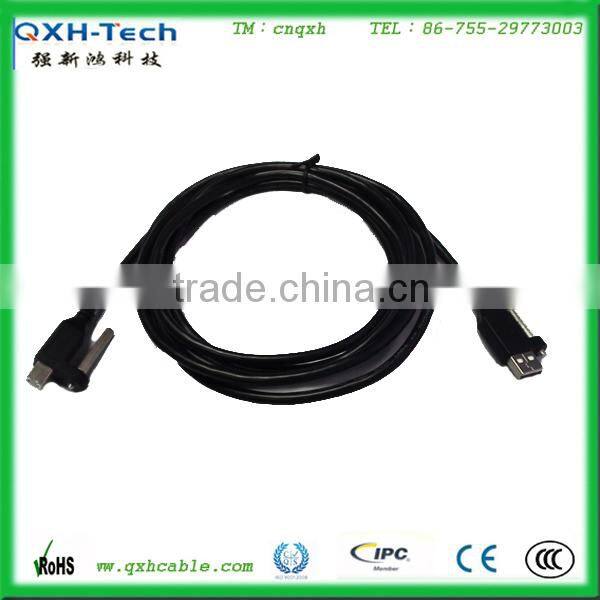

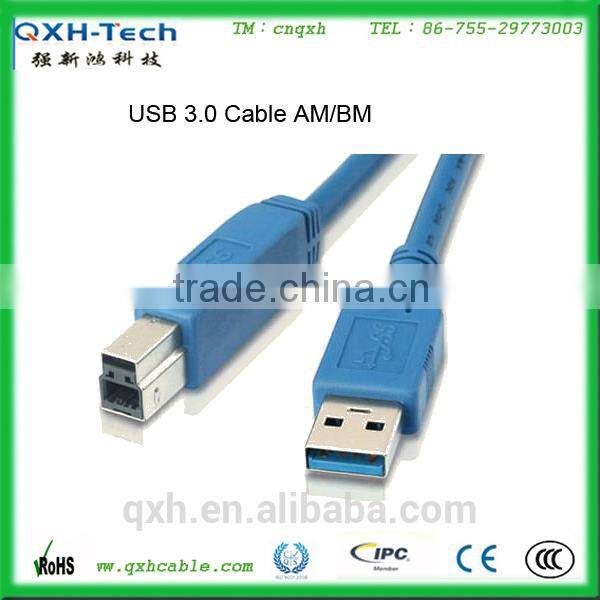

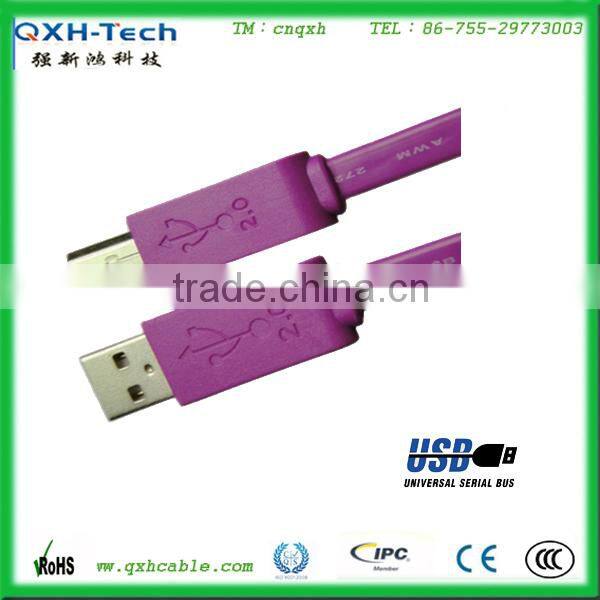

usb cable a b
The Requirements of Wire Structure:
Signal Conductor |
28AWG (7/0.127) TC |
Insulation |
0.9=0.05MM, PE (202-3364), white/green |
Conductor |
28AWG~20AWG (7/0.127~0.30) TC |
Shield |
Aluminum foil |
Ground Wire |
28AWG (7/0.127) TC |
Braided Wire |
16/50.10TC |
Jacket |
PVC |
Features:
- UL and RoHSCertified
- High speed USB 2.0 Shielded AWMUL2725 VW-1 80c 30V 28AWG/1PR+28AWG/2C+AL+64 BRAID/UL2725 VW-1 80c 30V 28AWG/1PR+24AWG/2C+AL+64 BRAID
Supports up to 127 devices on a daisy-chain configuration.Fast, 480Mbit/sec transmission speed
- Molded strain relief and PVC over molding to ensure a lifetime of error-free data transmissions
- Use to extend a USB device such as printers, modems, scanners, digital cameras, etc
- Compatible to all Microsoft Windows, Linux, Unix and Mac operating systems
- Works with USB 1.0, USB 1.1 and USB 2.0 Devices
Electronic requests
1.100% open & short test
2.Hi-Pot: DC 300V 10ms
3.Insulation Resistance: 10M OHM /300V Min.
4.Contact Resistance: 0.01 OHM Max.
5.Shield up to 65% braid.
6.Working Temperature: -25 oC ~ +85 oC
Application:
Widely usage on PC, Mac, Flat Panel Displays, Digital CRT Displays, HDTV and Video Projectors, including DFP and LCD filed.
Shipping and delivery details:
1. FedEx/DHL/UPS/TNT/EMS for samples or small quantity cargo, Door-to-Door;
2. By Air or by Sea for mass production, for FCL; Airport/ Port receiving;
3. Customers specified freight forwarders or negotiable shipping modes are acceptable.
4. Delivery Time: 3-7 days for samples; 20-25 days for mass production delivery after payment confirmed
5.Quality control: Items will be 100% checked by our Electrical testing & professional inspector before
Packages:
Bubble blister packing - higher price but more attractive
Premium slide blister packing - reasonable price
Gift box packing - Eco-friendly
Poly bag packing - low-cost, with card header and bar-code number
