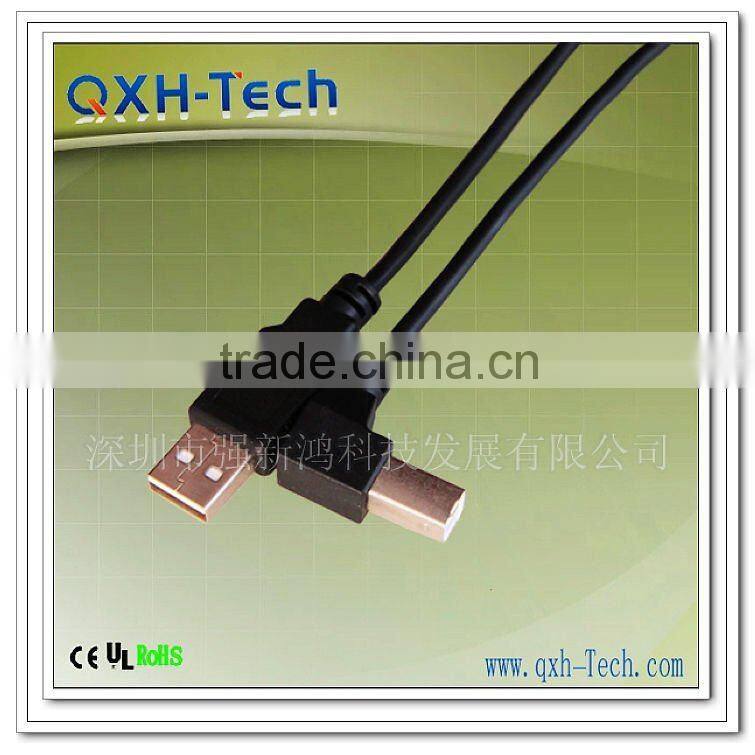

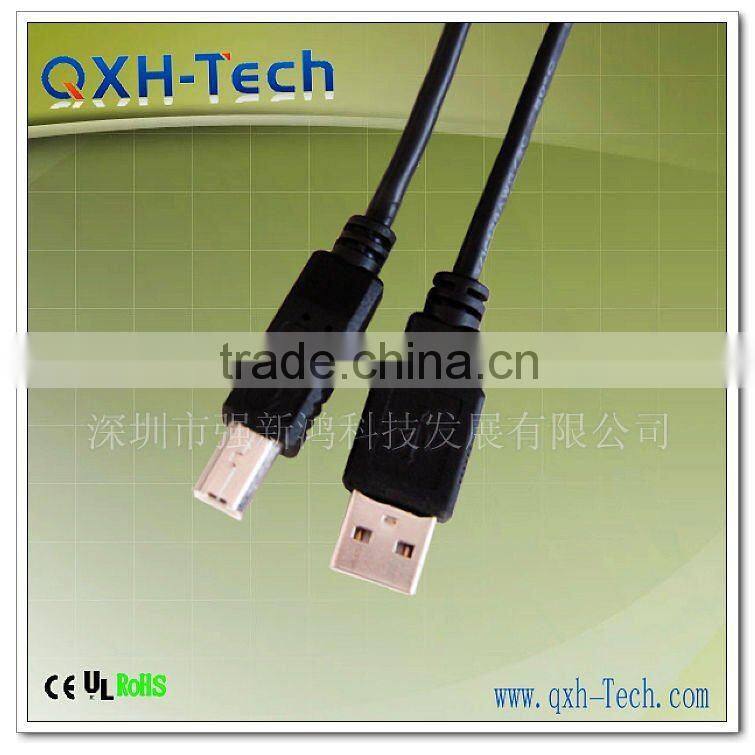

AM to Right angle BM USB 2.0 printer cable

Specifications

1. 2.0 USB cable,printer cable
2. AM/BM right angle
3. Nickel-plated connector
4. black PVC molding
5. High speed

2.0 USB AM/BM right angle printer  cable

1. 2.0 USB cable,printer cable
2. AM/BM right angle
3. Nickel-plated connector
4. black PVC molding
5. High speed



Specifications:

1.USB 2.0 AM-AF,AM-AM,AM-BM,AM-mini5pin,AM-micro 5pin.

2.cable: 28AWG,24AWG,22AWG,20AWG

3.UL2725 28AWG*1P+28AWG*2C+AEB,OD:3.8-4.5mm

4.Jacket color: Black, Blue, white , Transparent or your requirement..

5. Nickel-plated and Gold-plated connector

6. Length: 0.5m,1m,1.8m,3m,5m



Features:

1. Active USB cable increases the length of your device cable without signal and power output loss
2. Built in signal booster
3. Cable length can be extended up to 80 feet by chaining 6 of these active cables
4. USB Extension cables create an easily assessable USB port
5. Both low and high speed USB devices will function equally well with this USB extension cable
6. Fully compatible with USB 2.0 Hi-Speed USB specification



Electrical:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to  65% braid.
Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min

Packing:
Polybag, headcard, blister, Slide card,giftbox ,according to clients' requirement.
