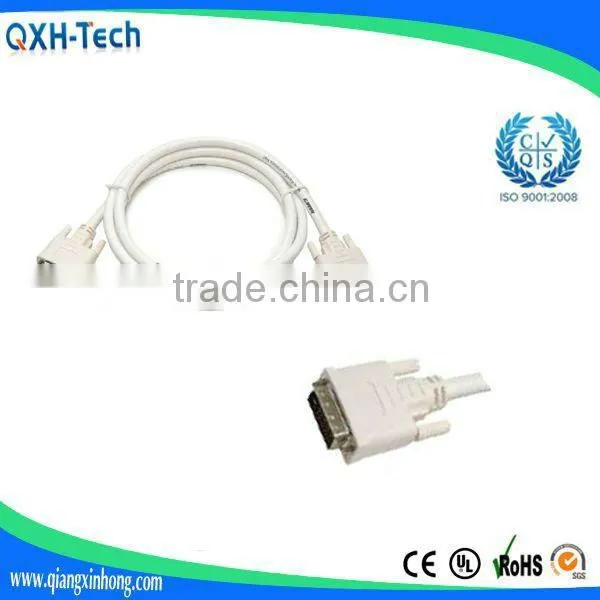

High Speed 24+1 DVI male to DVI 24+1 male cable
Specification:
1.Connector Type: DVI-D male to DVI-D male
2.Signal Type Digital only
3.Connector Finish: Gold
4.Gauge: 24AWG
5.Pin Configuration 24 + 1
6.Shielding: Triple shielded
7.Ferrite Cores: Dual Ferrites
8.1080p supported: Yes
9.Bandwidth: Dual Link
10.Maximum Resolution 2560x1600
11.Min Clock Freq. 21.76 Mhz
12.Max Clock Freq 165 Mhz x 2
13.Max Thoroughput 7.4 Gbs
14.ROHS Compliant: Yes
15.VW-1: Yes
16.Voltage Rating: 30V
17.Temperature Rating: 80° C
Wire specification
Color |
Black/White/Blue/Red/Gray... ...(optional) |
Length |
3FT to 90FT(1M to 30M) (optional) |
Inner Conductor |
Tin copper ,bare copper or cooper clad steel |
Jacket |
PVC jacket with nylon net (optional) |
Shield |
Standard ,tri-shield ,drop cable |
Braiding material |
BC ,TC or CCS |
Shell |
Zin alloy shell & Al shell & bicolo model (optional) |
Ferrite Cores |
Optional |
Gender |
30/28/26/24AWG (optional) |
Protective Sleeve |
Nylon or cotton(optional) |
Screen |
Single or double bonded aluminum foil |
The funcions of DVI cable:
1/ Ultimate 1080P full HD picture and sound from the largest HDtvs, advanced projectors, and digital AV sources.
2/ Supports all digital audio formats including Dolby True HD and DTS-HD Master Audio.
3/ Supports Video Resolution :480i, 480p, 720p, 1080i, 1080p resolution.
4/ 24k gold plated DVI connectors. Mylar backed foil shielded twisted pair for high speed HDMI.
5/ High grade oxygen-free copper wire.
6/ Digital transfer at rates up to 10.2Gbps.
7/ High-Density triple shieding for maximum rejection of EMI and RFI.
Suitalbles for many AV products
1/ Digital TV-CBLE, satellite, and terrestrial broadcasts
2/ Digital movies-DVDs
3/ Digital displays-Plasma, LCD, DLP, LCOS
4/ Digital interactivity-PVRs, MHP, OCAP
5/ D-VHS players
6/ Audio/Video receivers
7/ PC, Mac, Flat Panel Displays, Digital CRT Display;HDTV and Video Projectors,including DFP and LCD types.
DVI-D Features:
1. DVI-D Male to Male Digital / Digital Single Link Cable
2. Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCS and flat panel displays, digital CRT displays, projectors, an HDTV.
3. DVI Single-Link Digital/Digital Video Cables from Impact Acoustics deliver the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow.
4. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group).
5. The DVD-D configuration provides enough bandwidth for resolutions up to 2048 x 1536 and allows high speed digital transmission up to 9.9 Gbps.
6. Connectors: DVI-D (18+1 pin) , DVI-D (18+5pin),DVI-D (24+1 pin) , DVI-D (24+5pin)
7. The digital signaling allows for high speed transmission up to 9.9 Gbps
8. Shielded undermold protects against unwanted EMI/RFI interference
9. Double-shielded with Mylar foil and braid shield reduces interference
10. Gold-plated contacts provide full conductivity without ghosting and data loss
11. Supports hot plugging of DVI display devices
12. Resolutions up to 2048 x 1536
13. Supports digital signal only
14. With thumbscrews for easy installat
DVI cable products

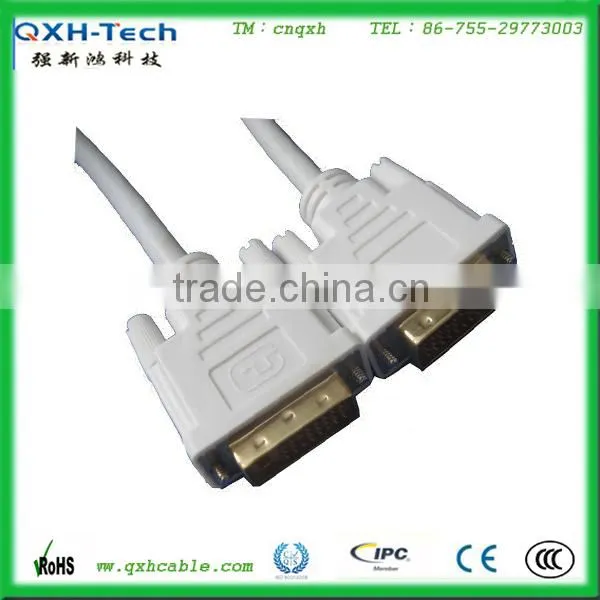

white DVI CABLE

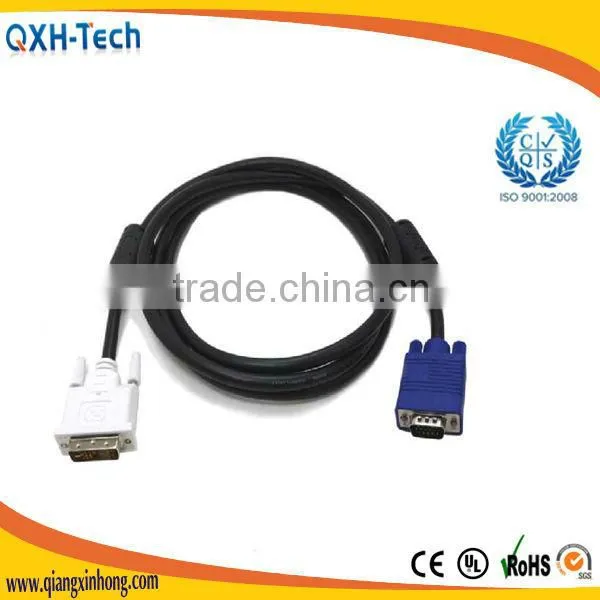

DVI CABLE TO VGA CABLE

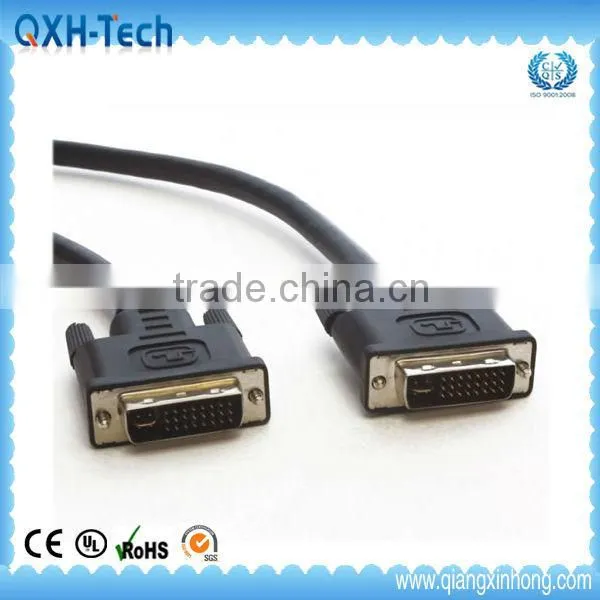

Black DVI24+1 Cable

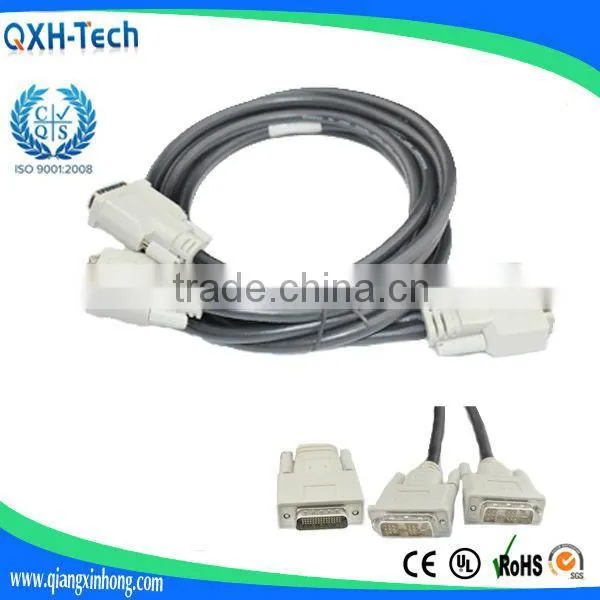

3connector DVI24+1 CABLE

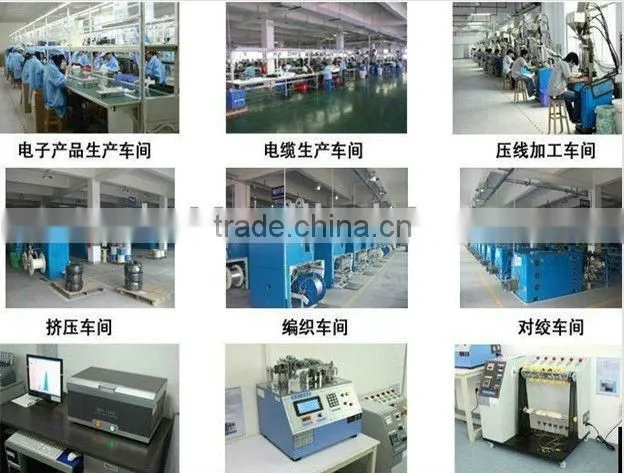

Our factory
ISO9001 Cerfifcation
We are connectors and cables manufacturer and we have devoted in this field for more than 10 years,Our customers include many world top company,such as the NCR,the CCV and EPSON and so on.and we can provide the best quality products to you if you choose us as your supplier.
Our product also include USB,MINI USB, IEEE 1394, MINI DIN, POWER DIN, POWER USB, HDMI, DVI, VGA, DISPLAYPORT, SATA, RJ45, POWER I/O CONNECTOR,CONNECTOR, RF, LED SHOWER head ,iphone/ipod dock ,iphone / ipod cable etc.
Choose us!The best quality and price to you!
