Pipe-end Forming Machine
Specifications:
* Pipe-end Forming Machine
*Established in 2001, has more than 15 years experience in machinery and equipment manufacturing
*OEM service offered
*CE, ISO Certificate
*Competitive price
*Located in Zhangjiagang city at the center of Shanghai, Suzhou, Wuxi, Nanjing etc., transportation is very convenient

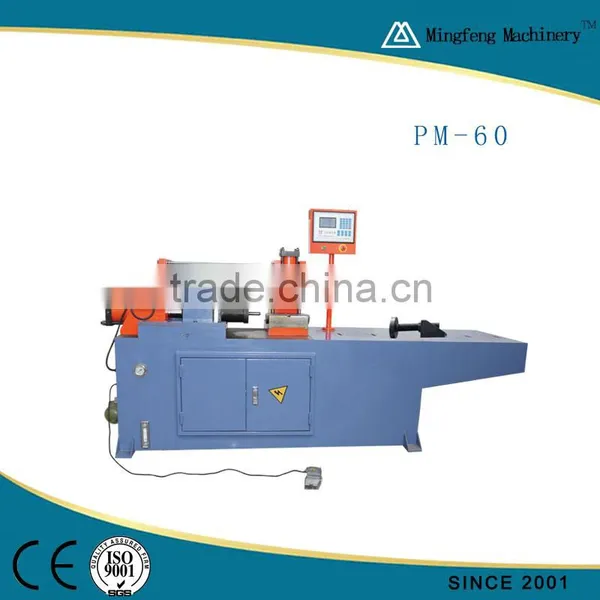

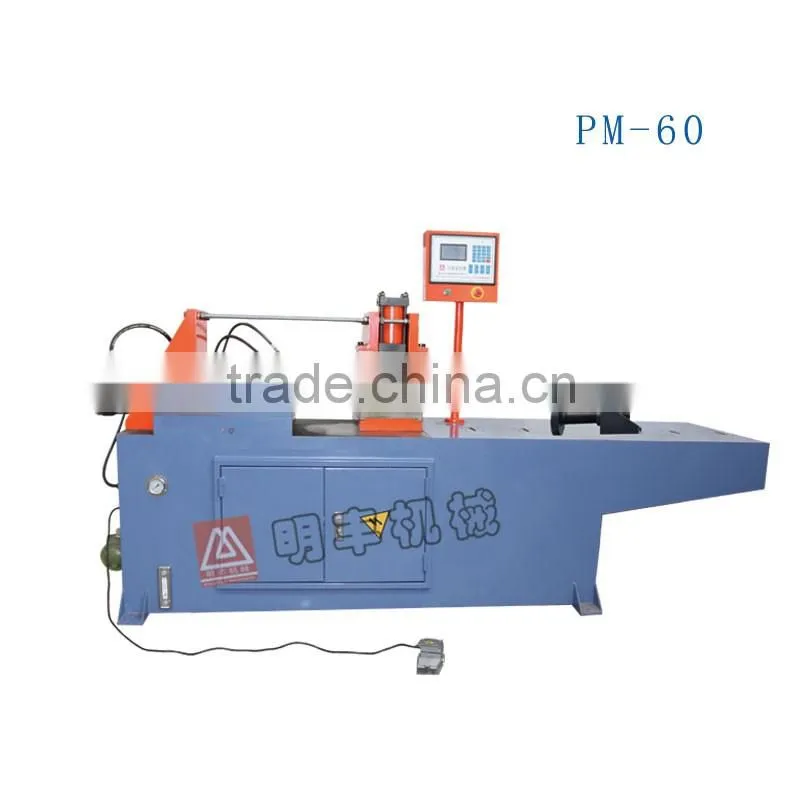

PM-60 Pipe-end Forming Machine
*Mechanical Features
1. Hydraulic pipe end forming machine, manual and automatic pattern can be chosen freely and changed automatically
2. Product is no wear, and with good repeatability
3. Can use to contract, open and fold tsui pipe end processing, operation no wear and good repeatability

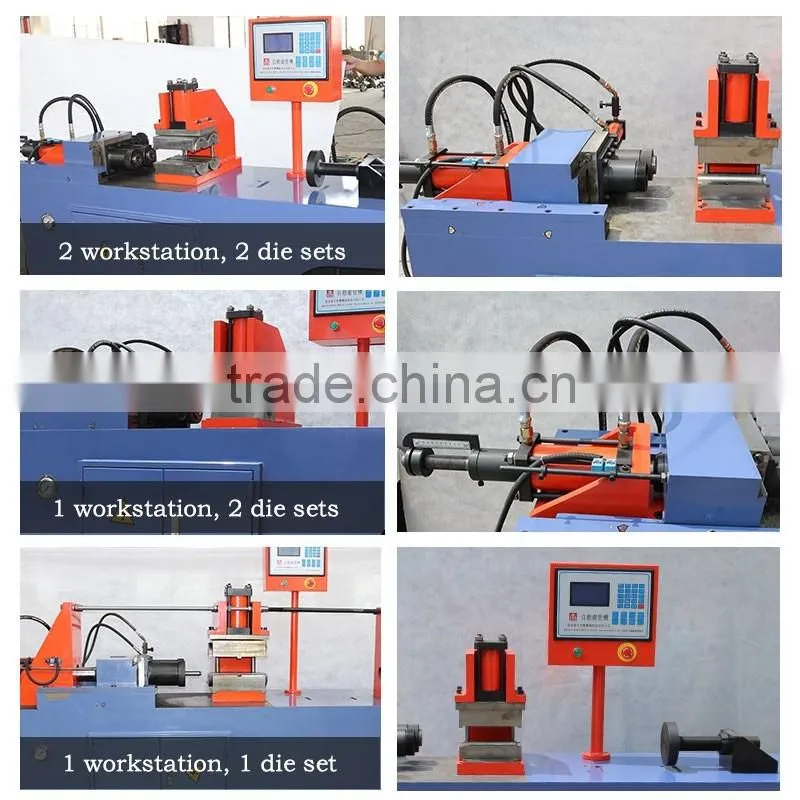

4. Can design the quantity of workstation and die sets according to customer requirements
*Main Technical Parameters
Model |
PM60 |
Max-applicable pipe (mm) |
φ60 |
Max-working stroke (mm) |
125 |
Working speed |
125mm in 4~5/s |
Oil pressure (Mpa) |
14 |
Machine size (L * W * H / mm) |
2800×600×1300 |
Weight (kg) |
1250 |
Mode |
PM-60 Pipe-end Forming Machine |
Trademark |
Mingfeng Machinery |
Color |
Blue |
Warranty |
One year warranty and lifetime maintenance |
1)Observing &Testing
After we receipt 30% advance deposit, we will start to produce. When the machine is completed, buyers come to observe and test machine by themselves, until the machine is satisfied with the buyers, they can pay for the other 70% balance.
2)Technical documents
The seller should supply buyer the documents for installation and commissioning within 5 days after contract is available, other related documents will be supplied to buyer before shipment.
3)Installation
We provide electrical control maps and instruction book to you for installation with English instruction. If required, we can send 1 or 2 engineers to buyer’s country for installation and training.
4)After-sale service
After sale service shall be done by the seller. Seller will provide all kinds of technical support to the buyer by telephone, fax or email free of charge. After one-year guarantee period, we assure you life-long maintenance.
