High precision Mitutoyo micrometer digital vernier caliper at reasonable prices
High measurement precision
Excellent ease of use, durability
High product quality that can only be Japan-made

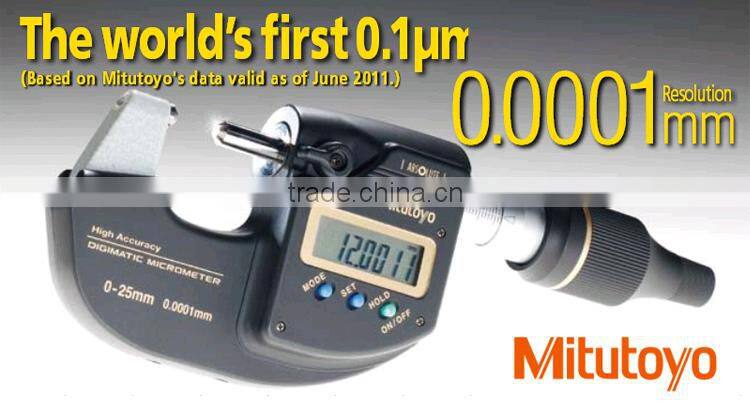

Enabling 0.1μm resolution measurement, this micrometer is ideal for customers
who need to make highly accurate measurements with a hand-held tool.
The High-Accuracy Digimatic Micrometer utilizes Mitutoyo’s innovative 0.1μm
resolution ABS (absolute) rotary sensor and high-accuracy screw machining technology to reduce
the instrumental error to ±0.5μm, delivering higher accuracy without sacrificing operability.
A highly rigid frame and high-performance constant-force mechanism enable more stable measurement,
while the clicks emitted while the workpiece is being measured assures
the operator that measurement is proceeding normally.
The ABS (absolute) rotary sensor eliminates the need to perform origin setting each time
the power is turned on, letting you start measuring straight away.
With no possibility of overspeed errors, the High-Accuracy Digimatic Micrometer also delivers
a higher level of reliability.
The High-Accuracy Digimatic Micrometer has a range of features to enable flexible measurement,
including of features to enable flexible measurement, includingswitchable resolution (0.0001mm/0.0005mm),
function lock and preset
Specification
| Code No. | 293-100 | |||
| Sign | MDH-25M | |||
| Measurement range | 0~25mm | |||
| Minimum measurement displayed | 0.0001mm(Possible to change to 0.0005 mm) | |||
| Instrumental error (20℃) | ±0.5μm | |||
| Measuring surface size | Φ3.2mm | |||
| Measuring force | 7~9N | |||
| Positional detection method | Electromagnetic guidance ABS rotary sensor | |||
| Mass | 400g(Comes with a heat-insulating cover:440g) | |||
| Power supply | 1 lithium battery (CR2032) | |||
| Positional detection method | Approximately 2 years using normal specifications | |||
