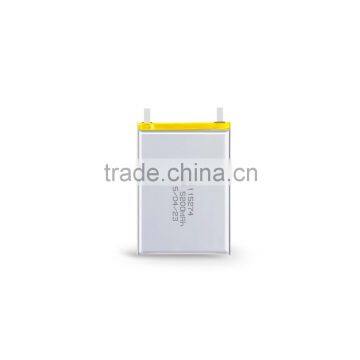

3.7V 5200mAh li-poly battery(115274-5200MAH)

FOB Price

USD $4.30 - $4.45 / Piece

5000 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen Guangzhou Foshan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Guangdong, China		Brand Name	ZERNE
Model Number	115274-5200MAH		Type	Li-polymer
Nominal Voltage	Other, 3.7V		Size	Other, 10.252.275.5mm(thicknesswidthlength)
Nominal Capacity	5200mAh

Product Description

Overview

What is Lithium ion polymer battery?

A lithium polymer battery, or more correctly lithium-ion polymer battery (abbreviated variously as LiPo, LIP, Li-poly and others), is a rechargeable battery of lithium-ion technology in a pouch format. Unlike cylindrical and prismatic cells, LiPos come in a soft package or pouch, which makes them lighter but also less rigid(source from wikipedia). It has become a more robust and adaptable rechargeable chemistry choice due to its low self-discharge rate and more flexible form factor for custom specifications. Popular choice as the power source for consumer electronic products.

Specification Detail

3.7V 5200mAh li-poly battery(115274-5200MAH)

No.	Item	Rated Performance		Remark
1	Rated Capacity	Typical	5200mAh	Standard discharge（0.2C C5A) after Standard charge
		Minimum	5150mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage During Standard Discharge After Standard Charge
3	Voltage at end of Discharge	2.45V or 3V		Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.05V
5	AC (1KHz) Impedance New Cell Max.(m)	≤ 90 mΩ
6	Standard charge	Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 4.0h
7	Standard discharge	Constant current 0.2 C5A end voltage2.75V
8	Fast charge	Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off		Charge time : Approx 2.5h
9	Fast discharge	Constant current 1 C5A end voltage2.75V
10	Maximum Continuous Charge Current	1C5A
11	Maximum Continuous Discharge Current	1C5A
12	Operation Temperature Range	Charge	0~45℃	60±25%R.H. Bare Cell
		Discharge	-20~60℃
13	Storage Temperature Range	Less than 1 year	-20~25℃	60±25%R.H. at the shipment state
		less than 3 months	-20~40℃
14	Cell Dimension	Length	75.5mm	Initial Dimension
		Width	52.2mm
		Thickness	10.6mm

Dominated Features

Lithium Ion Polymer Chemistry Highlights:
a.Ultra low profile
b.Improved safety
c.Flexible form factor, wide range of applications for consumer electronic products
d.Light weight
e.Eco-friendly, chemical substances do no harm to environment
f.Long storage time, low self-discharging
g.Able to customized to special environments which may in low temperature, high temperature, high pressure
h......etc.,

Production Showing

Product Application

Our Lithium polymer battery are widely use in:

1.Telecommunication:cellular phone,web phone, interphone, bluetooth earphone, walkie talkie

2.Portable office devices:Notebook, PDA,portable electrograph, portable printer

3.Video devices:GPS,digital camera, camcorder, portable DVD, portable television,MP3, MP4

4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine

5. llluminate device:miner lamp, searchlight,LED penal, rechargeable decoration lighting

6.Others: toys, models

7.Wearable devices, VR devices

8.Any innovation that is small size and portable......

Application samples
